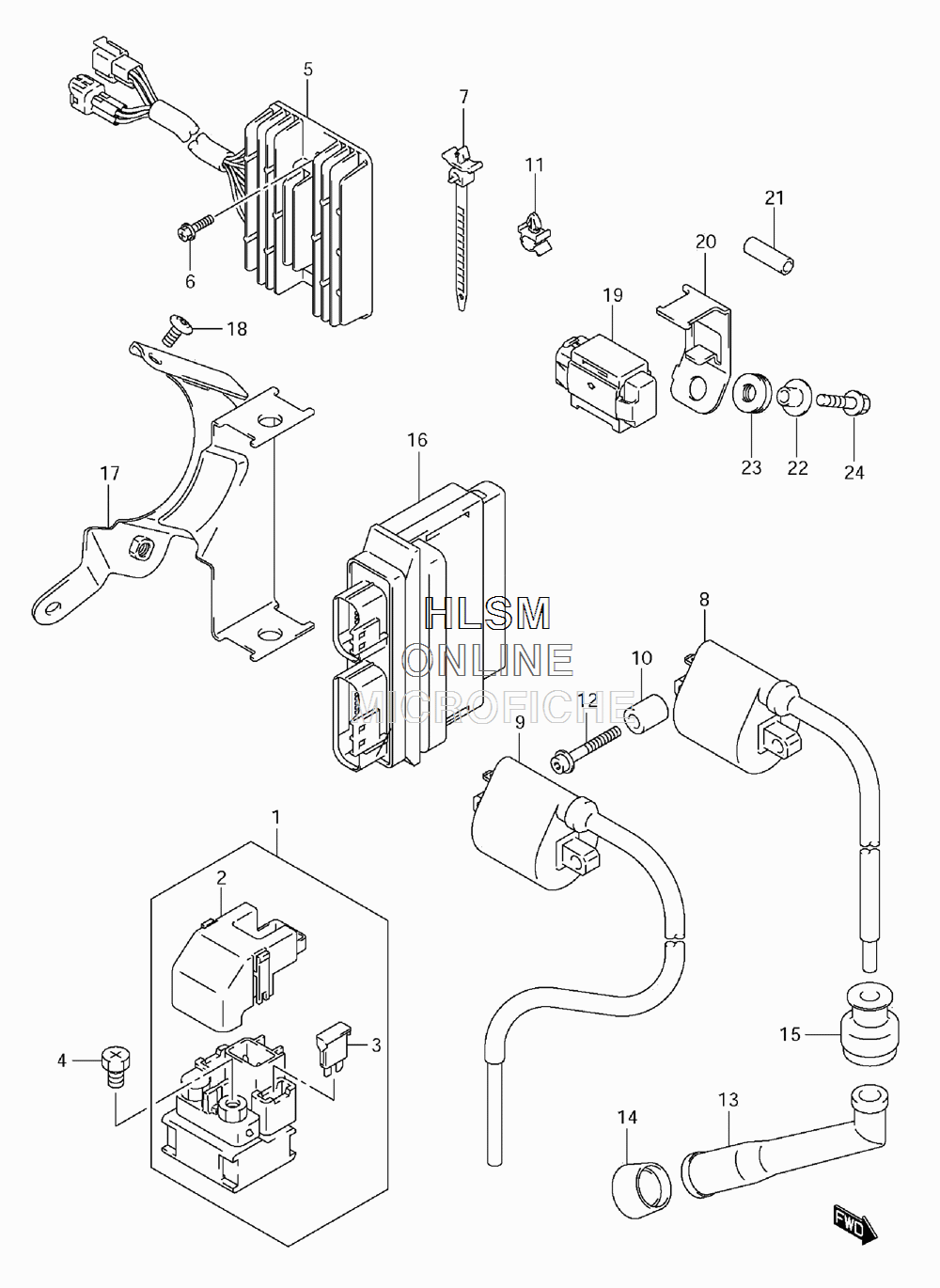

ELECTRICAL (EXCEPT CALIF) для Suzuki VL800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY, STARTING MOTOR (INCL. 2 - 3)RELAY ASSY, STARTING MOTOR (INCL. 2 - 3)
-
231861-47E00 COVER, RELAY ASSYCOVER, RELAY ASSY
-
309481-30101 FUSE (30A)FUSE (30A)
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
532800-41F11 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0620B BOLTBOLT
-
709407-11402 CLAMP (L:90)CLAMP (L:90)
-
833410-17G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
933420-41F10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1009180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1109403-07308 CLAMPCLAMP
-
1209106-05033 BOLT, IGNITION COIL (5X35)BOLT, IGNITION COIL (5X35)
-
1333510-11410 CAP, SPARK PLUGCAP, SPARK PLUG
-
1433541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1533542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1632920-39GB0 CONTROL UNIT, FICONTROL UNIT, FI
-
1744880-43H00 BRACKETBRACKET
-
1809139-06108 BOLT (6X12)BOLT (6X12)
-
1933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2033961-41F00 BRACKET, FUEL CUTBRACKET, FUEL CUT
-
2109352-50823-600 CUSHION, FUEL CUTCUSHION, FUEL CUT
-
2209180-06325 SPACER, FUEL CUTSPACER, FUEL CUT
-
2309320-06017 CUSHION, FUEL CUTCUSHION, FUEL CUT
-
2401547-0616A BOLT, FUEL CUTBOLT, FUEL CUT
