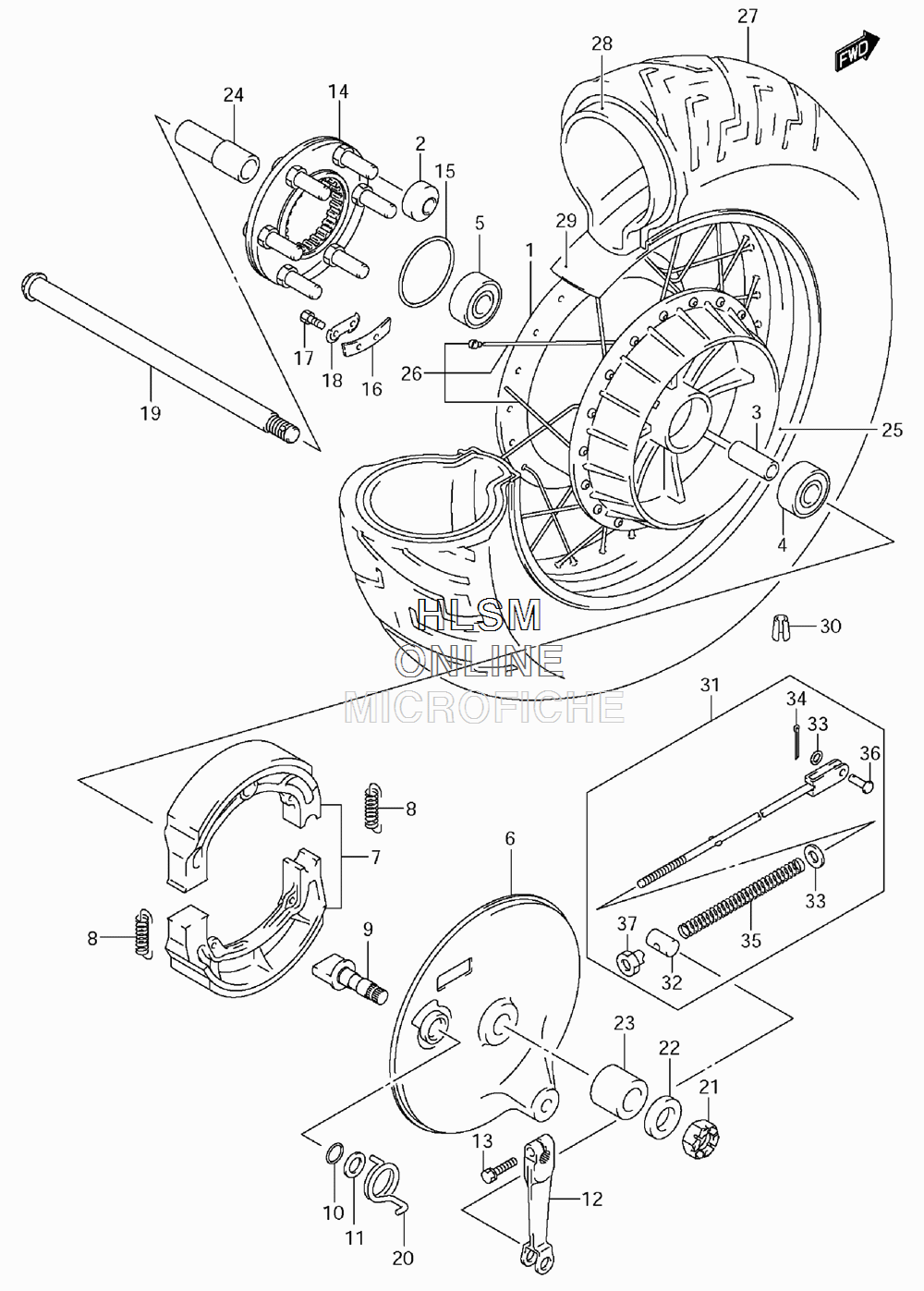

WHEEL - REAR (CANADA) для Suzuki VL800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
164110-41F20 HUB, REAR WHEELHUB, REAR WHEEL
-
209319-12019 BUSHING (12X41X34)BUSHING (12X41X34)
-
309180-17092 SPACER, RR HUB (17.5X25X80)SPACER, RR HUB (17.5X25X80)
-
408123-63037 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
508143-63037 BEARING, LEFT HANDBEARING, LEFT HAND
-
664210-38A70-20H PANEL, REAR BRAKE ANCHOR (SILVER)PANEL, REAR BRAKE ANCHOR (SILVER)
-
764400-38820 SHOE SET, BRAKESHOE SET, BRAKE
-
855420-30000 SPRING, SHOESPRING, SHOE
-
964441-38A20 CAM, BRAKECAM, BRAKE
-
1009280-15003 O RING (ID:14.8,D:2.40)O RING (ID:14.8,D:2.40)
-
1109160-15048 WASHER (15.5X24X1.6)WASHER (15.5X24X1.6)
-
1264451-38A01 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1301570-06257 BOLTBOLT
-
1464680-45113 JOINT, HUB DRIVENJOINT, HUB DRIVEN
-
1509280-65003 O RING (ID:65,D:2.10)O RING (ID:65,D:2.10)
-
1664677-45110 WASHER, THRUSTWASHER, THRUST
-
1709119-06049 BOLT (6X16)BOLT (6X16)
-
1809169-06030 WASHERWASHER
-
1964711-19F00 AXLE, REAR (L:302)AXLE, REAR (L:302)
-
2009448-33006 SPRING, CAMSPRING, CAM
-
2108319-2116A NUTNUT
-
2209160-17050 WASHER (17X30X3.2)WASHER (17X30X3.2)
-
2364741-41F00 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
2464772-34201 SPACER, LEFT HANDSPACER, LEFT HAND
-
2565311-41F00 RIM, WHEEL, 15M/CXMT4.00 FERIM, WHEEL, 15M/CXMT4.00 FE
-
2665320-41F00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
2765100-41F00 TIRE, RR, 170/80-15M/C 77H IRCTIRE, RR, 170/80-15M/C 77H IRC
-
2865200-41F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2965261-41F00 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
3055411-26G00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
3055413-41F00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
3143300-41F00 ROD ASSY, REAR BRAKE (INCL. 32 - 37)ROD ASSY, REAR BRAKE (INCL. 32 - 37)
-
3209209-13018 PIN, REAR BRAKE RODPIN, REAR BRAKE ROD
-
3308322-0106B WASHERWASHER
-
3404111-2015A PIN, COTTERPIN, COTTER
-
3509440-09004 SPRINGSPRING
-
3609200-06013 PINPIN
-
3709150-06010 NUTNUT
