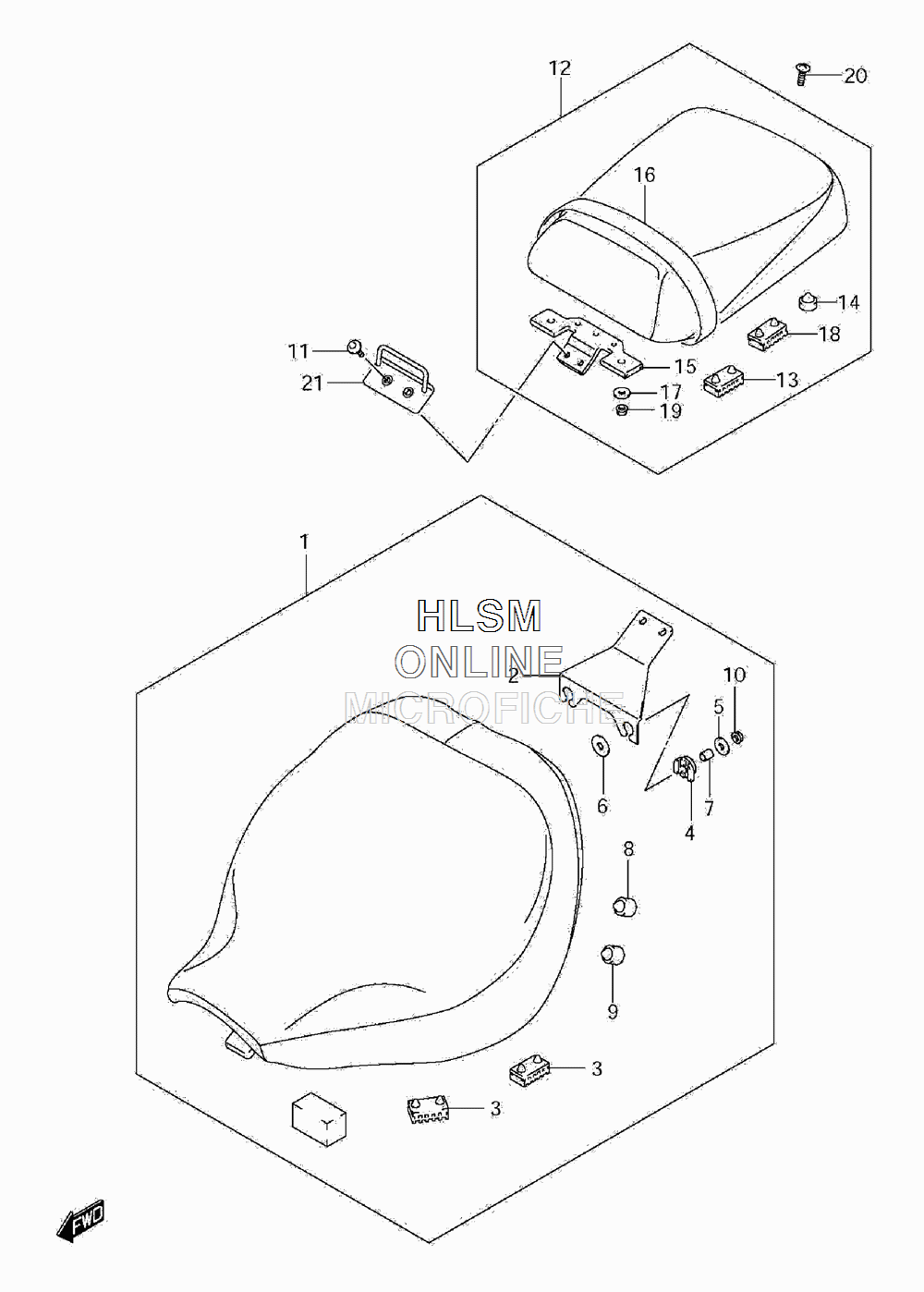

SEAT (CANADA) для Suzuki VL800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
145100-43H00-V4Y SEAT ASSY (BLACK) (INCL. 2 - 10)SEAT ASSY (BLACK) (INCL. 2 - 10)
-
245115-43H00 BRACKET, SEATBRACKET, SEAT
-
345149-31300 CUSHIONCUSHION
-
445215-43H00 CUSHIONCUSHION
-
509160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
609160-06501 WASHER (6.5X24X1.6)WASHER (6.5X24X1.6)
-
709180-06288 SPACER (6.5X10X11)SPACER (6.5X10X11)
-
809321-10002 CUSHION (11.5X22X20)CUSHION (11.5X22X20)
-
909321-10033 CUSHIONCUSHION
-
1008316-1006A NUTNUT
-
1109106-06064 BOLT (8X16)BOLT (8X16)
-
1245300-43H00-V4Y SEAT ASSY, PILLION (BLACK) (INCL. 13 - 19)SEAT ASSY, PILLION (BLACK) (INCL. 13 - 19)
-
1345149-31300 CUSHION, PILLION SEAT NO.2CUSHION, PILLION SEAT NO.2
-
1445147-12FA0 CUSHIONCUSHION
-
1545330-43H00 BRACKET, PILLION SEATBRACKET, PILLION SEAT
-
1645380-43H00-V4Y BAND, SEAT PILLION (BLACK)BAND, SEAT PILLION (BLACK)
-
1709160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1809321-10002 CUSHIONCUSHION
-
1908316-1006A NUTNUT
-
2009106-08140 BOLT (8X16)BOLT (8X16)
-
2145210-43H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
