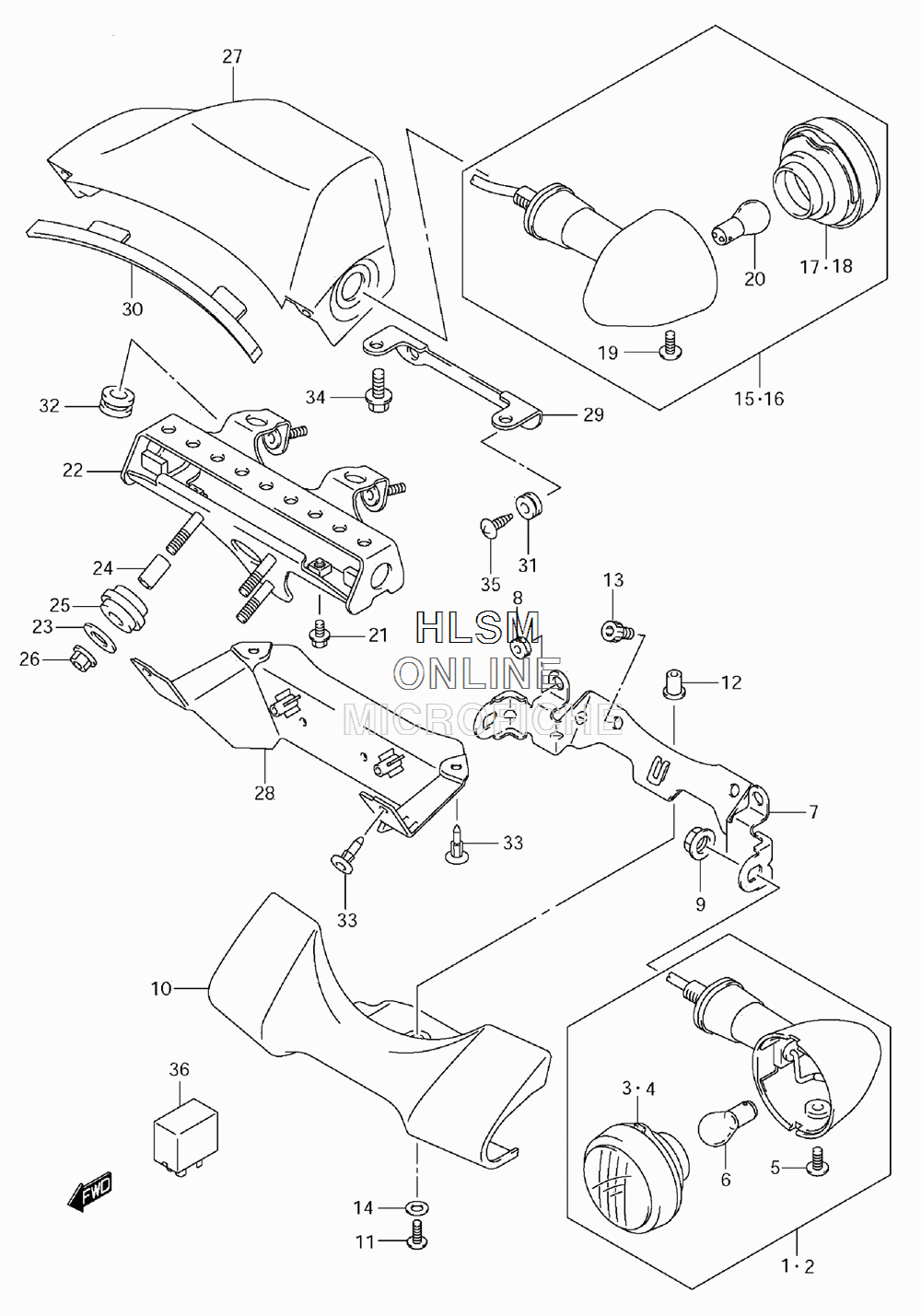

TURN SIGNAL ASSY. (EXCEPT CALIF) для Suzuki VL800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
135601-41FC0 FRONT TURNSIGNAL ASSY, RIGHT HAND (INCL. 3, 5-6)FRONT TURNSIGNAL ASSY, RIGHT HAND (INCL. 3, 5-6)
-
235602-41FC0 FRONT TURNSIGNAL ASSY, LEFT HAND (INCL. 4 - 6)FRONT TURNSIGNAL ASSY, LEFT HAND (INCL. 4 - 6)
-
335610-38AA0 LENSLENS
-
435630-38AA0 LENSLENS
-
535623-38AA0 SCREW (4X10)SCREW (4X10)
-
609471-12083 BULB (12V21/5W)BULB (12V21/5W)
-
735616-41FA2 BRACKETBRACKET
-
809320-06016 CUSHIONCUSHION
-
908310-0010B NUTNUT
-
1035641-41F02 COVER, FRONT TURNSIGNALCOVER, FRONT TURNSIGNAL
-
1109139-05042 SCREW (5X8)SCREW (5X8)
-
1209159-05019 NUT, COVERNUT, COVER
-
1307130-0812B BOLT, FRONT TURNSIGNALBOLT, FRONT TURNSIGNAL
-
1409160-05048 WASHER (5.5X14X1.20)WASHER (5.5X14X1.20)
-
1535603-38AH0 LAMP ASSY, REAR RIGHT HAND (INCL. 17, 19 - 20)LAMP ASSY, REAR RIGHT HAND (INCL. 17, 19 - 20)
-
1635604-38AH0 LAMP ASSY, REAR LEFT HAND (INCL. 18 - 20)LAMP ASSY, REAR LEFT HAND (INCL. 18 - 20)
-
1735610-38AH0 LENS, RIGHT HANDLENS, RIGHT HAND
-
1835630-38AH0 LENS, LEFT HANDLENS, LEFT HAND
-
1935623-38AA0 SCREW (4X10)SCREW (4X10)
-
2009471-12045 BULB (12V21W)BULB (12V21W)
-
2109103-06507 BOLT, RR TURN (6X14)BOLT, RR TURN (6X14)
-
2235620-43H00 BRACKET, RR TURNBRACKET, RR TURN
-
2309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2409180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
2509320-10504 CUSHION, BRACKETCUSHION, BRACKET
-
2608316-1006A NUT, BRACKETNUT, BRACKET
-
2735621-43H00 COVER, RR TURN UPPERCOVER, RR TURN UPPER
-
2835622-06J00 COVER, RR TURN LOWERCOVER, RR TURN LOWER
-
2935623-43H00 BRACKET, RR TURN COVERBRACKET, RR TURN COVER
-
3035657-43H00 GASKET, RR TURN COVERGASKET, RR TURN COVER
-
3109320-06016 CUSHION, RR COVERCUSHION, RR COVER
-
3209320-08066 CUSHION, RR COVERCUSHION, RR COVER
-
3309409-06314-5PK CLIP, RR COVERCLIP, RR COVER
-
3401550-0612A BOLT, RR COVER BKTBOLT, RR COVER BKT
-
3503541-0510A SCREW, RR COVERSCREW, RR COVER
-
3638610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
