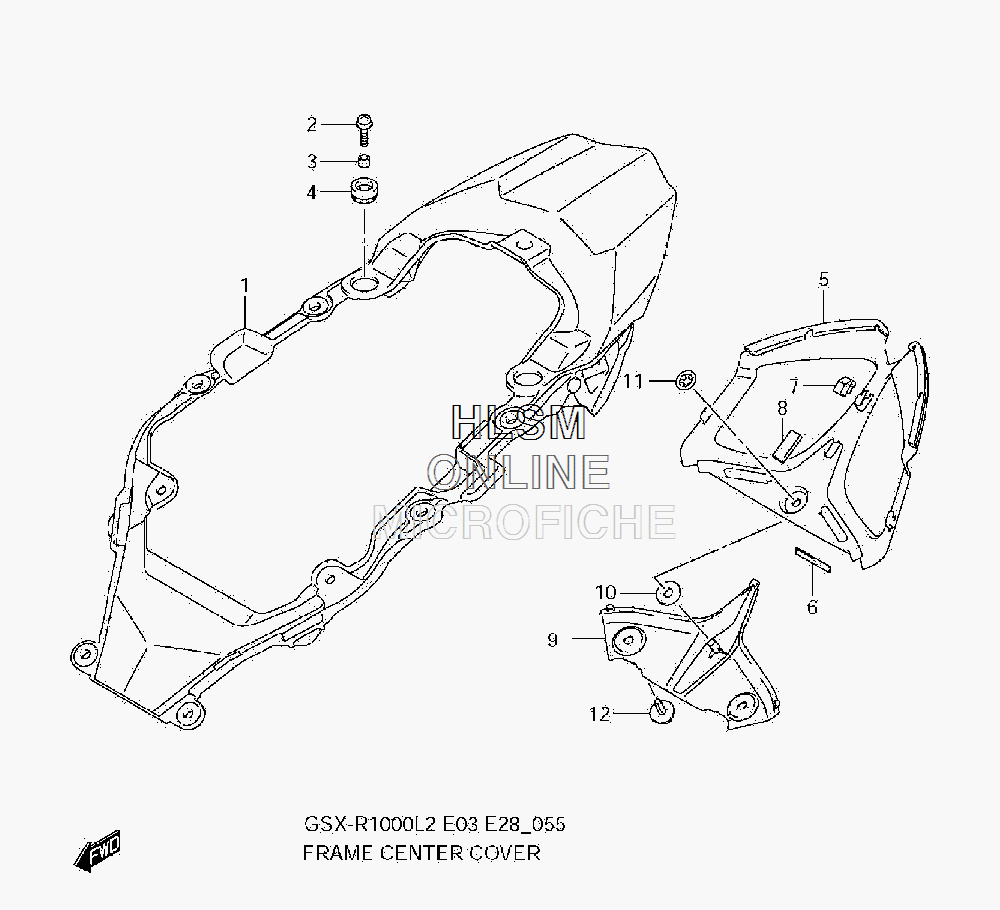

FRAME - CENTER COVER для Suzuki GSX-R1000 L2 - 2012 года выпуска
-
№АртикулНазвание
-
147310-47H00-YBD COVER, FRAME CENTER (YBD - WHITE FOR GLR)COVER, FRAME CENTER (YBD - WHITE FOR GLR)
-
147310-47H00-YVB COVER, FRAME CENTER (YVB - BLACK FOR KGL)COVER, FRAME CENTER (YVB - BLACK FOR KGL)
-
209136-06056 SCREW (6X16)SCREW (6X16)
-
309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
447312-37H00 CUSHIONCUSHION
-
547911-47H00-YUA COVER, REAR CENTER (YUA - BLUE FOR GLR)COVER, REAR CENTER (YUA - BLUE FOR GLR)
-
547911-47H00-Y4P COVER, REAR CENTER (Y4P - GRAY FOR KGL)COVER, REAR CENTER (Y4P - GRAY FOR KGL)
-
647912-47H00 CUSHIONCUSHION
-
747913-37H00 CUSHIONCUSHION
-
894413-08F00 CUSHIONCUSHION
-
947921-47H00-YBD COVER, REAR LOWER (YBD - WHITE FOR GLR)COVER, REAR LOWER (YBD - WHITE FOR GLR)
-
947921-47H00-YKV COVER, REAR LOWER (YKV - BLACK FOR KGL)COVER, REAR LOWER (YKV - BLACK FOR KGL)
-
1009320-06501 CUSHIONCUSHION
-
1109148-05006 NUTNUT
-
1209409-06328 CLIPCLIP
