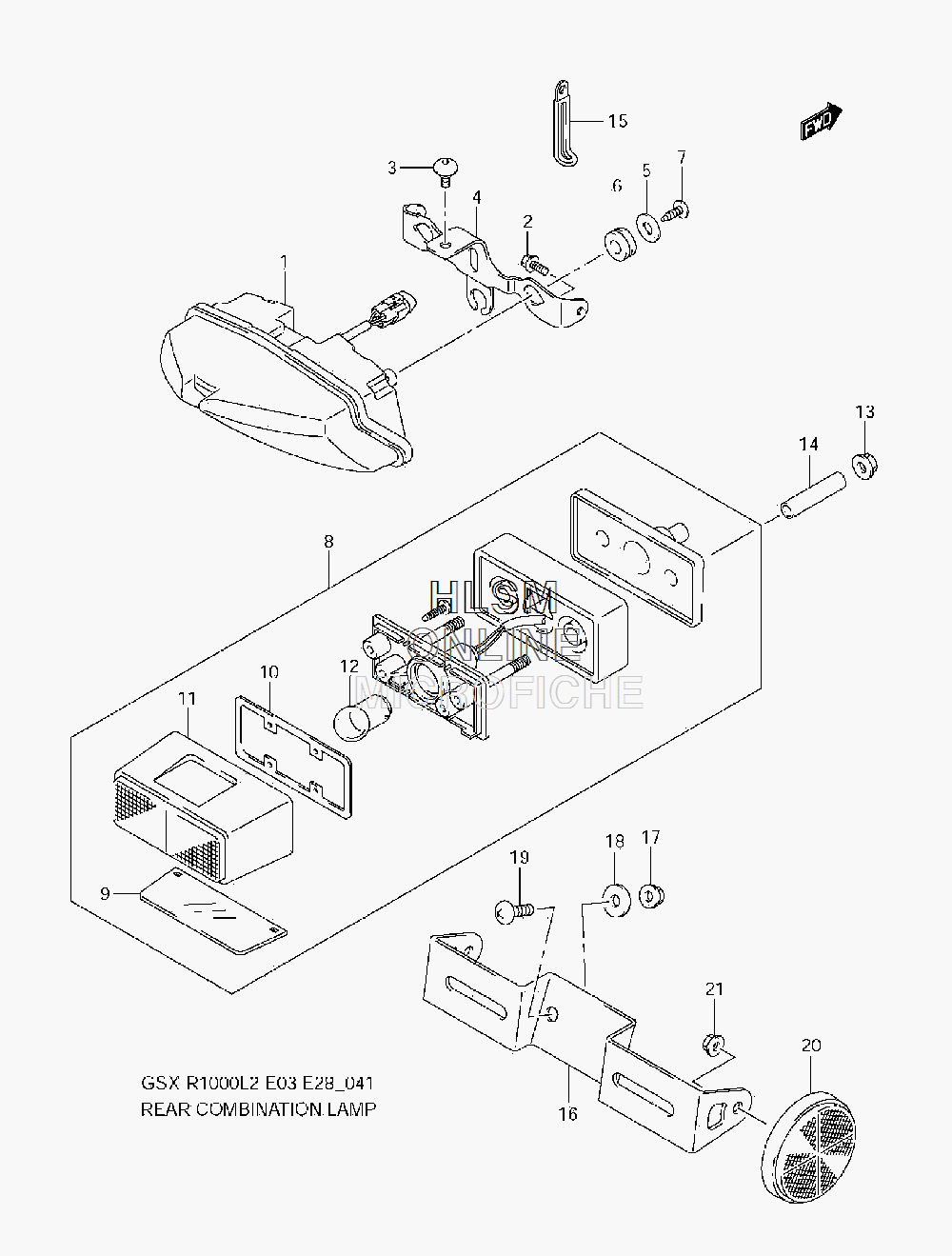

TAILLIGHT ASSY. для Suzuki GSX-R1000 L2 - 2012 года выпуска
-
№АртикулНазвание
-
135710-14JA0 LAMP ASSY, REARCOMBINATIONLAMP ASSY, REARCOMBINATION
-
209106-05031 BOLT (5X12)BOLT (5X12)
-
309139-06152 SCREW (6X12)SCREW (6X12)
-
435726-47H00 BRACKET, REARCOMBINATION LAMPBRACKET, REARCOMBINATION LAMP
-
509160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
609320-10049 CUSHIONCUSHION
-
703541-0516A SCREWSCREW
-
835910-41G31 LAMP ASSY, LICENSE (INCL. 9-12))LAMP ASSY, LICENSE (INCL. 9-12))
-
935912-41G01 LENS, LICENSELENS, LICENSE
-
1035913-41G00 GASKETGASKET
-
1135917-41G00 COVER, LICENSE LAMPCOVER, LICENSE LAMP
-
1209471-12140 BULB (12V5W)BULB (12V5W)
-
1309159-06096 NUTNUT
-
1409180-06356 SPACER (6.5X9X34)SPACER (6.5X9X34)
-
1509404-06429 CLAMP (L:45)CLAMP (L:45)
-
1635927-41G30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1708316-1006A NUTNUT
-
1809160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1902142-0616A SCREWSCREW
-
2035970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2108316-1005A NUTNUT
