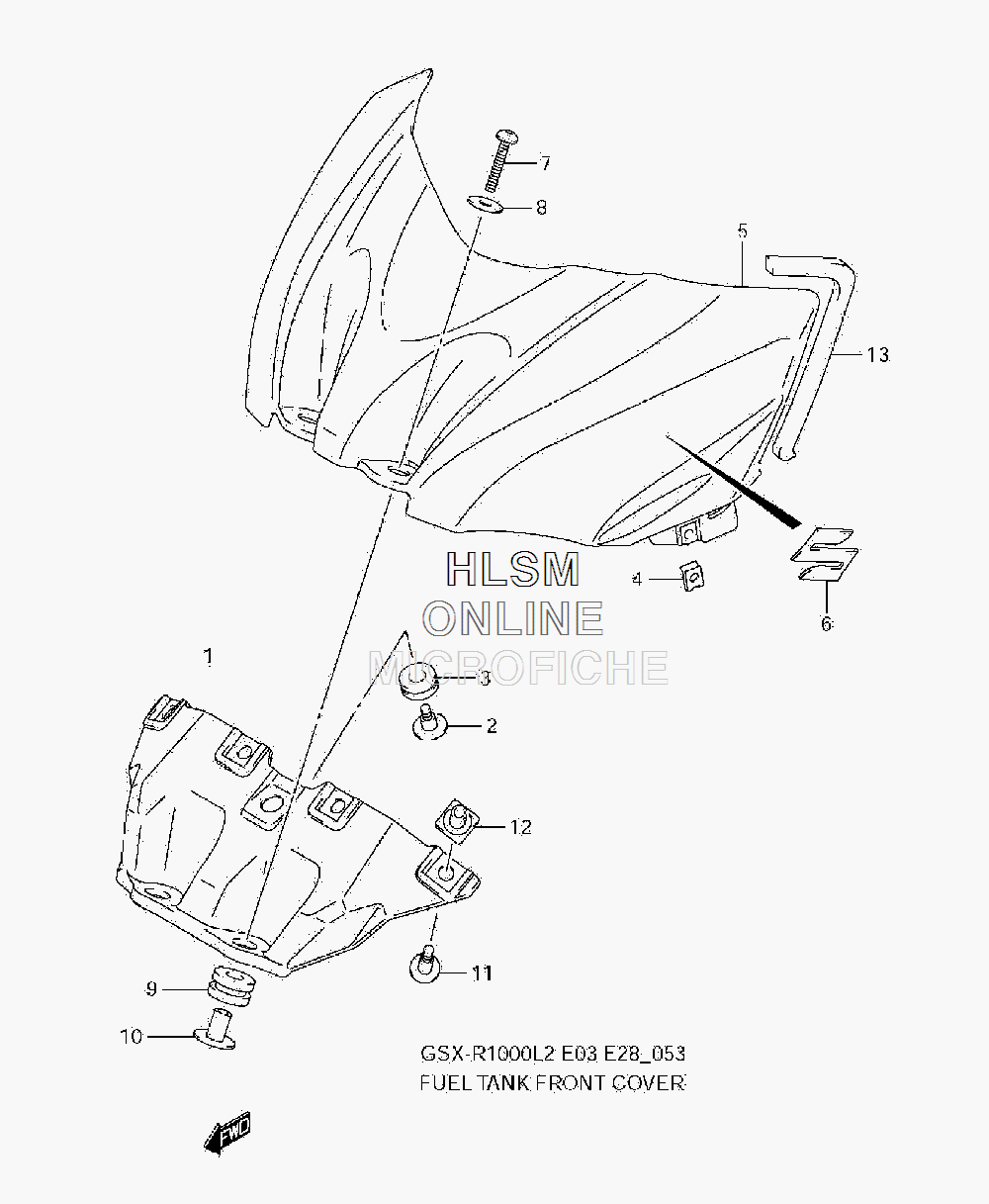

FUEL TANK - FRONT COVER для Suzuki GSX-R1000 L2 - 2012 года выпуска
-
№АртикулНазвание
-
144521-47H00 BRACKET, FRONTBRACKET, FRONT
-
209139-05078 SCREW (5X16.4)SCREW (5X16.4)
-
309320-08021 CUSHIONCUSHION
-
409148-05052 NUTNUT
-
544291-47H00-YSF COVER, FRONT (YSF - BLUE FOR GLR)COVER, FRONT (YSF - BLUE FOR GLR)
-
544291-47H00-YKV COVER, FRONT (YKV - BLACK FOR KGL)COVER, FRONT (YKV - BLACK FOR KGL)
-
668111-18G20 EMBLEM ''S''EMBLEM ''S''
-
709139-06105 SCREW (6X40)SCREW (6X40)
-
809160-06054 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
909320-10050 CUSHIONCUSHION
-
1044512-47H00 SPACERSPACER
-
1109139-06181 SCREW (6X10)SCREW (6X10)
-
1244523-47H00 NUTNUT
-
1344277-37H00 CUSHIONCUSHION
