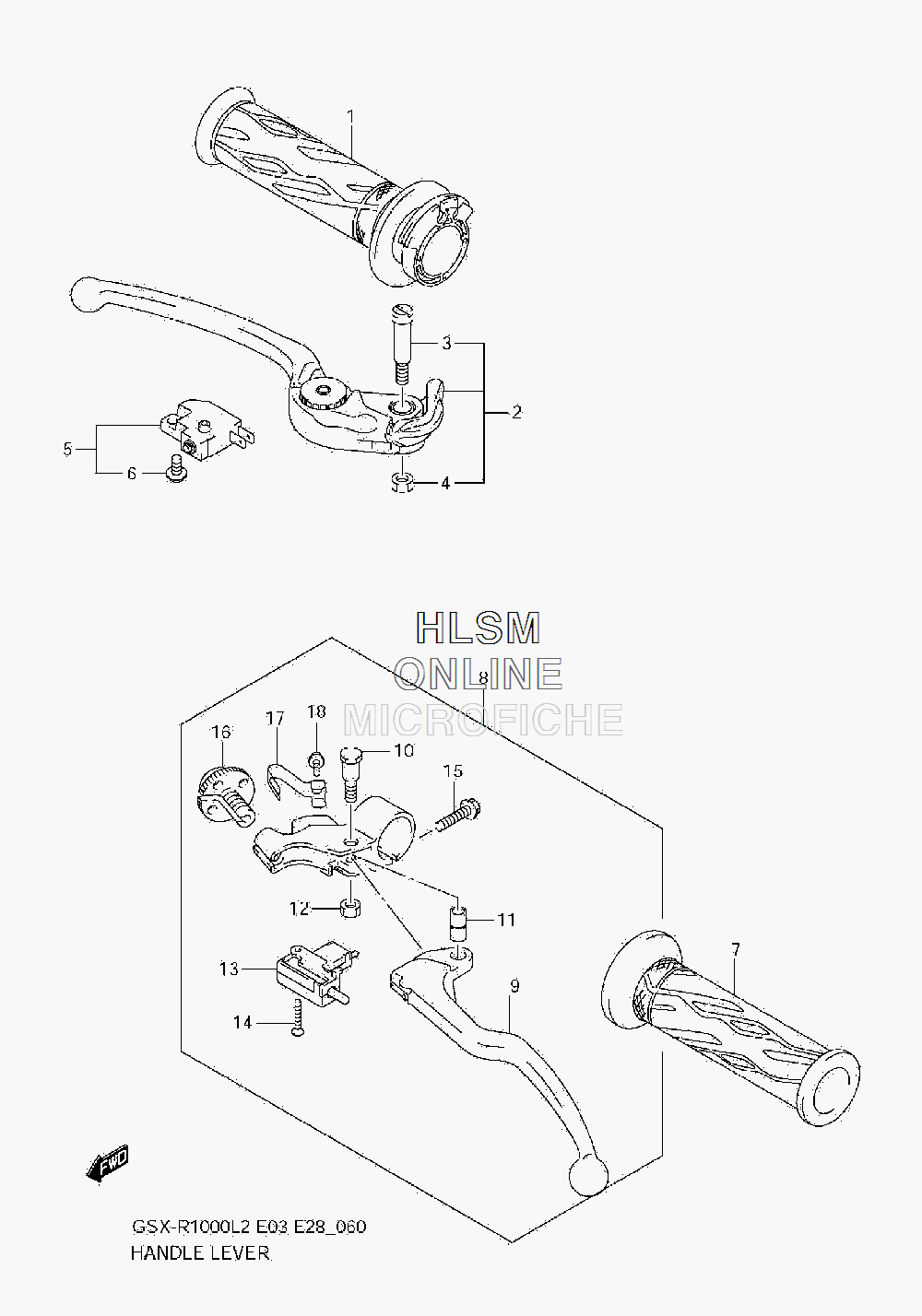

HANDLEBAR - LEVERS для Suzuki GSX-R1000 L2 - 2012 года выпуска
-
№АртикулНазвание
-
157110-21H01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-29G30 LEVER ASSY, BLAKE (INCL. 3, 4)LEVER ASSY, BLAKE (INCL. 3, 4)
-
357431-29G00 BOLT, PIVOTBOLT, PIVOT
-
408319-2106A NUTNUT
-
557460-14J00 SWITCH ASSY, FRONT BRAKE (INCL. 6)SWITCH ASSY, FRONT BRAKE (INCL. 6)
-
657465-17C00 SCREWSCREW
-
757211-21H00 GRIP, LEFT HANDGRIP, LEFT HAND
-
857500-41G20 LEVER ASSY, CLUTCH (INCL. 9-18)LEVER ASSY, CLUTCH (INCL. 9-18)
-
957621-41G00 LEVER, CLUTCHLEVER, CLUTCH
-
1057431-41G00 BOLTBOLT
-
1157532-41G00 COLLARCOLLAR
-
1208319-3106A NUTNUT
-
1357560-41G20 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
1457562-41G20 SCREWSCREW
-
1501547-0620B BOLTBOLT
-
1657641-33E21 NUT, CABLE ADJUSTERNUT, CABLE ADJUSTER
-
1757644-33E00 SPRING, ADJUSTSPRING, ADJUST
-
1857642-33E00 SCREW, SPRINGSCREW, SPRING
