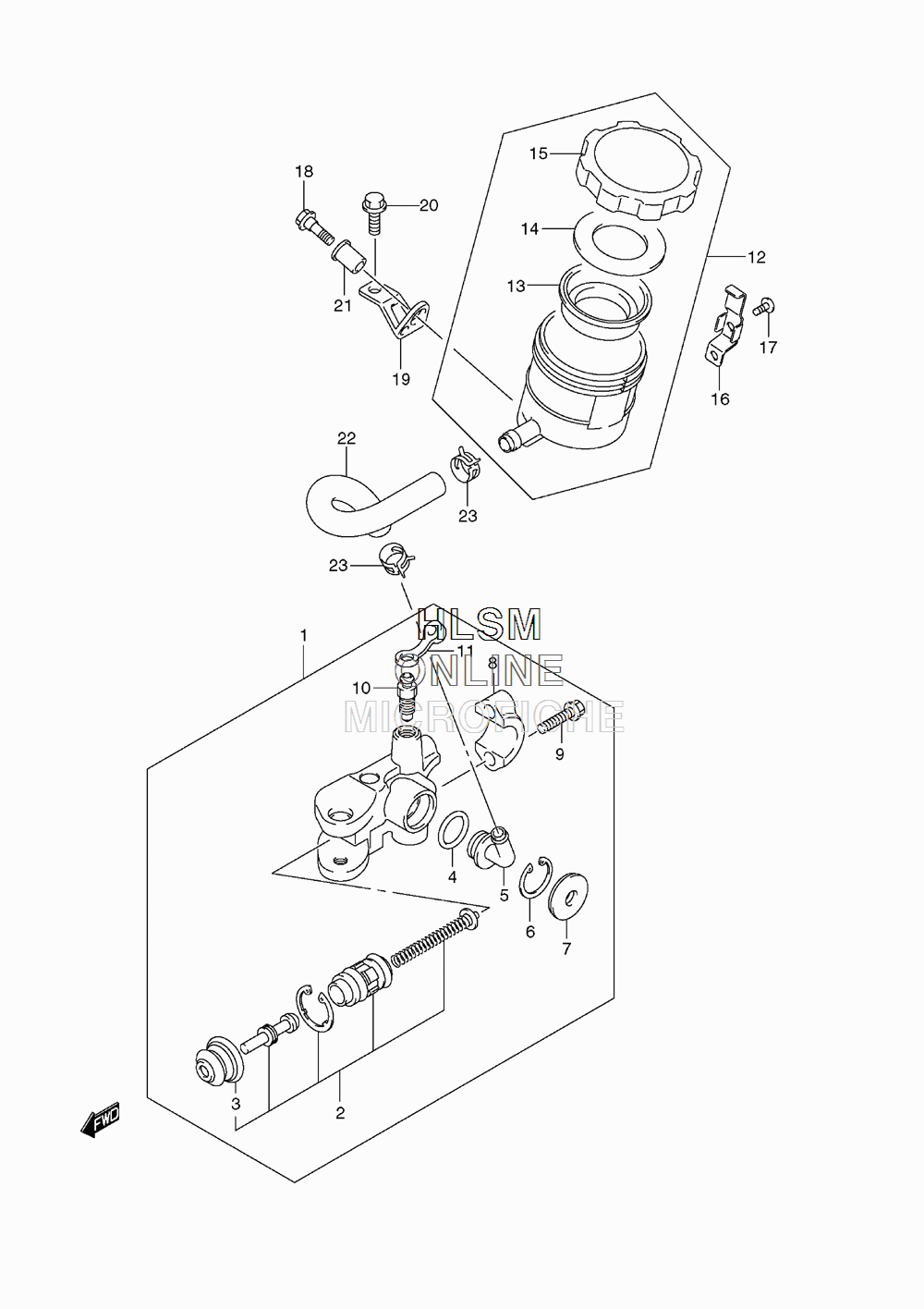

BRAKE - FRONT MASTER CYLINDER для Suzuki GSX-R750 L3 - 2013 года выпуска
-
№АртикулНазвание
-
159600-01H30 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-01810 ...PISTON & CUP SET...PISTON & CUP SET
-
359666-29G00 ......BOOT......BOOT
-
469686-34200 ...O RING...O RING
-
559672-17C00 ...CONNECTOR...CONNECTOR
-
669674-00B20 ...CIRCLIP...CIRCLIP
-
759673-17C00 ...COVER, DUST...COVER, DUST
-
859671-01H00 ...HOLDER...HOLDER
-
959675-02FA0 ...BOLT...BOLT
-
1059121-01A00 ...BLEEDER...BLEEDER
-
1159122-01A00 ...CAP, BLEEDER...CAP, BLEEDER
-
1259740-07D00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1359667-18441 ...DIAPHRAGM...DIAPHRAGM
-
1459668-18441 ...PLATE...PLATE
-
1559669-07D00 ...CAP...CAP
-
1659743-17C00 PLATE, TANK CAPPLATE, TANK CAP
-
1702142-0410A SCREWSCREW
-
1809111-05006 BOLT (5X17)BOLT (5X17)
-
1959751-47H00 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
2001547-0612A BOLTBOLT
-
2109159-05048 NUTNUT
-
2259731-01H00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2359735-17C00 CLAMP, HOSECLAMP, HOSE
