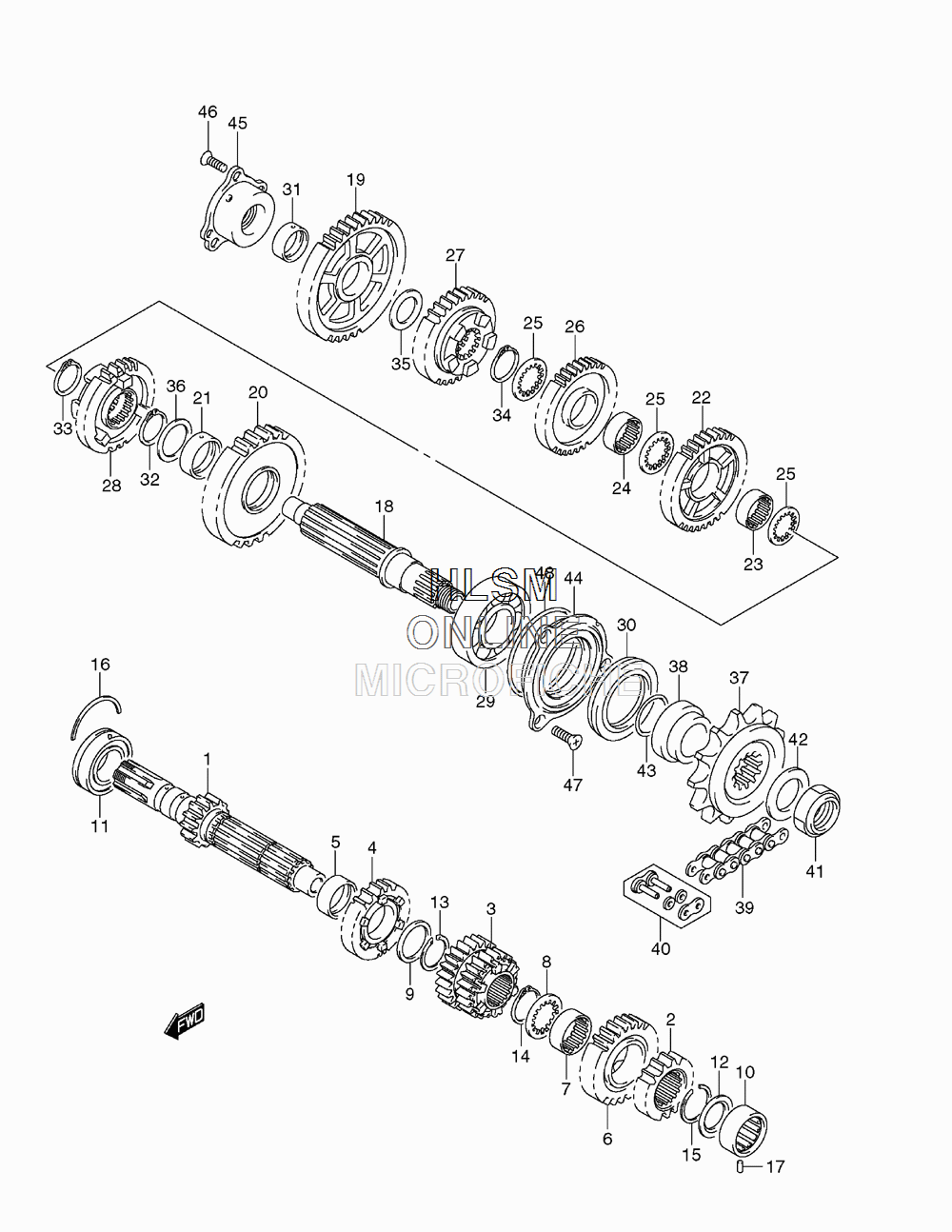

TRANSMISSION для Suzuki GSX-R750 L3 - 2013 года выпуска
-
№АртикулНазвание
-
124120-15J00 SHAFT, COUNTER (NT:14)SHAFT, COUNTER (NT:14)
-
224221-35F00 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-01H00 GEAR, 3RD & 4TH (NT:21/24)GEAR, 3RD & 4TH (NT:21/24)
-
424251-01H00 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
524252-35F00 BUSH 5TH DRIVE GEARBUSH 5TH DRIVE GEAR
-
624261-01H01 GEAR, 6TH DRIVE (NT:24)GEAR, 6TH DRIVE (NT:24)
-
724262-35F10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809167-27001 LOCK WASHERLOCK WASHER
-
909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
1009263-20087 BEARING (20X34X13.5) (LEFT)BEARING (20X34X13.5) (LEFT)
-
1109262-25150 BEARING (25X62X17) (RIGHT)BEARING (25X62X17) (RIGHT)
-
1209285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1309380-27006 CIRCLIPCIRCLIP
-
1409380-27006 CIRCLIPCIRCLIP
-
1509380-27004 CIRCLIPCIRCLIP
-
1609390-62012 C RINGC RING
-
1709261-06003 PIN (6X10)PIN (6X10)
-
1824131-14J00 SHAFT, DRIVESHAFT, DRIVE
-
1924311-35F20 GEAR, 1ST DRIVEN (NT:39)GEAR, 1ST DRIVEN (NT:39)
-
2024321-35F11 GEAR, 2ND DRIVEN (NT:39)GEAR, 2ND DRIVEN (NT:39)
-
2124322-35F00 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
2224331-40F30 GEAR, 3RD DRIVEN (NT:36)GEAR, 3RD DRIVEN (NT:36)
-
2324332-46H00 BUSH, 3RD DRIVENBUSH, 3RD DRIVEN
-
2424332-46H00 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2524333-02F00 WASHER, 3RD & 4TH DRIVENWASHER, 3RD & 4TH DRIVEN
-
2624341-40F20 GEAR, 4TH DRIVEN (NT:36)GEAR, 4TH DRIVEN (NT:36)
-
2724351-01H20 GEAR, 5TH DRIVEN (NT:31)GEAR, 5TH DRIVEN (NT:31)
-
2824361-01H00 GEAR, 6TH DRIVEN (NT:26)GEAR, 6TH DRIVEN (NT:26)
-
2909262-28045 BEARING (28X68X18) (LEFT)BEARING (28X68X18) (LEFT)
-
3009283-42018 OIL SEAL (42X62X7)OIL SEAL (42X62X7)
-
3109300-22008 BUSH (22X26X9)BUSH (22X26X9)
-
3209380-27006 CIRCLIPCIRCLIP
-
3309380-27006 CIRCLIPCIRCLIP
-
3409380-27006 CIRCLIPCIRCLIP
-
3509181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
3609160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
3727510-20A20 SPROCKET, ENGINE (NT:16)SPROCKET, ENGINE (NT:16)
-
3827531-14J00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3927600-33E40-116 CHAIN ASSYCHAIN ASSY
-
4027620-33E40 JOINT SETJOINT SET
-
4109159-20004 NUTNUT
-
4209160-25009 WASHER (25X41X3)WASHER (25X41X3)
-
4309280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
4424751-14J00 RETAINER, DRIVE SHAFT LEFTRETAINER, DRIVE SHAFT LEFT
-
4524771-01810 HOUSING, DRIVE SHAFT SETHOUSING, DRIVE SHAFT SET
-
4609139-06159 SCREW (6X20)SCREW (6X20)
-
4709139-06159 SCREW (6X20)SCREW (6X20)
-
4809280-68010 O RING (D:1.8,ID:67.5)O RING (D:1.8,ID:67.5)
