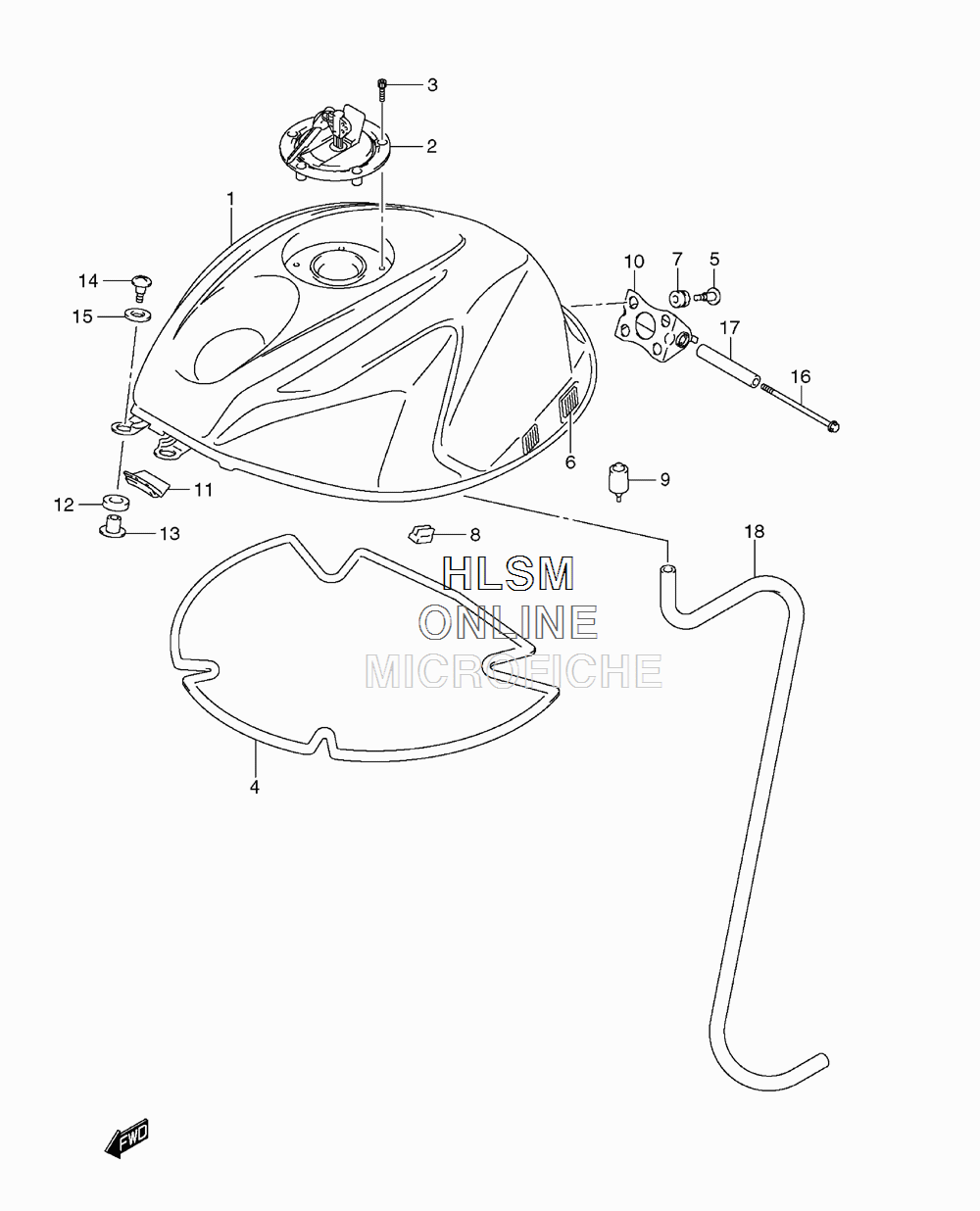

FUEL TANK (CALIF ONLY) для Suzuki GSX-R750 L3 - 2013 года выпуска
-
№АртикулНазвание
-
144100-14J52-YVB TANK ASSY, FUEL (YVB - BLUE FOR AA3)TANK ASSY, FUEL (YVB - BLUE FOR AA3)
-
144100-14J52-YSF TANK ASSY, FUEL (YSF - YELLOW FOR AGQ)TANK ASSY, FUEL (YSF - YELLOW FOR AGQ)
-
244200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
309106-05017 BOLT (5X20)BOLT (5X20)
-
444191-14J00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
544543-14J00 SCREW, FUEL TANK REAR BRACKETSCREW, FUEL TANK REAR BRACKET
-
644572-13G00 FASTENER, COVERFASTENER, COVER
-
709320-08071 CUSHIONCUSHION
-
844276-21H00 CUSHION, TANK COVERCUSHION, TANK COVER
-
944542-41G00 CUSHION, REARCUSHION, REAR
-
1044530-41G00 BRACKET, REARBRACKET, REAR
-
1144546-44H00 RUBBER, TANK FRONTRUBBER, TANK FRONT
-
1244511-16G00 CUSHIONCUSHION
-
1344512-16G00 SPACER, TANK FRONTSPACER, TANK FRONT
-
1409139-06192 SCREW (6X25)SCREW (6X25)
-
1509160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1609106-06119 BOLT (6X110)BOLT (6X110)
-
1744561-18G00 SPACER, TANK REARSPACER, TANK REAR
-
1844423-14J00 HOSE, DRAINHOSE, DRAIN
