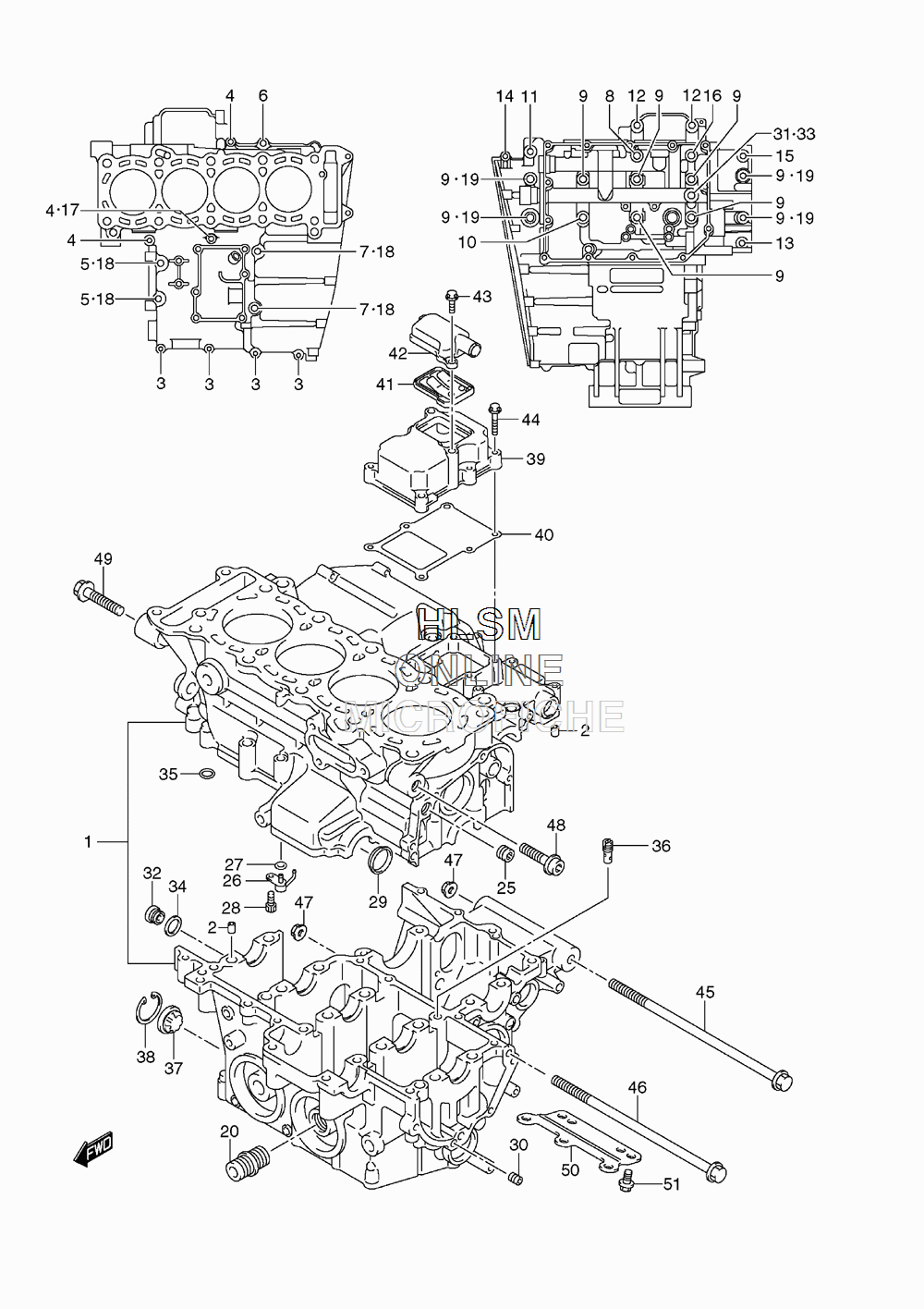

CRANKCASE для Suzuki GSX-R750 L3 - 2013 года выпуска
-
№АртикулНазвание
-
111301-15830 CRANKCASE SETCRANKCASE SET
-
211319-33E50 ...PIN...PIN
-
301547-0635A ...BOLT...BOLT
-
401547-0665A ...BOLT...BOLT
-
501550-0850A ...BOLT...BOLT
-
601550-0860A ...BOLT...BOLT
-
701550-0875A ...BOLT...BOLT
-
809103-08097 ...BOLT (8X105)...BOLT (8X105)
-
909103-09012 ...BOLT (9X95)...BOLT (9X95)
-
1009103-09014 ...BOLT (9X80)...BOLT (9X80)
-
1101550-0855A ...BOLT...BOLT
-
1209103-08339 ...BOLT (8X55)...BOLT (8X55)
-
1301547-0630A ...BOLT...BOLT
-
1401547-0645A ...BOLT...BOLT
-
1501550-0865A ...BOLT...BOLT
-
1601550-0885A ...BOLT...BOLT
-
1709168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
1809168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1909168-10031 ...GASKET (10.2X20X2.3)...GASKET (10.2X20X2.3)
-
2016591-06B01 ...UNION, OIL FILTER STAND...UNION, OIL FILTER STAND
-
2109280-00043 ...O RING (D:1.9,ID:99.5)...O RING (D:1.9,ID:99.5)
-
2209139-06151 ...BOLT (6X20)...BOLT (6X20)
-
2312228-17E00-0D0 ...BEARING, THRUST RIGHT (GREEN)...BEARING, THRUST RIGHT (GREEN)
-
24-112228-17E00-0A0 ...BEARING, THRUST LEFT (RED)...BEARING, THRUST LEFT (RED)
-
24-212228-17E00-0B0 ...BEARING, THRUST LEFT (BLACK)...BEARING, THRUST LEFT (BLACK)
-
24-312228-17E00-0C0 ...BEARING, THRUST LEFT (BLUE)...BEARING, THRUST LEFT (BLUE)
-
24-412228-17E00-0D0 ...BEARING, THRUST LEFT (GREEN)...BEARING, THRUST LEFT (GREEN)
-
24-512228-17E00-0E0 ...BEARING, THRUST LEFT (YELLOW)...BEARING, THRUST LEFT (YELLOW)
-
24-612228-17E00-0F0 ...BEARING, THRUST LEFT (WHITE)...BEARING, THRUST LEFT (WHITE)
-
2511329-02F00 JET, OIL GALLERYJET, OIL GALLERY
-
2611390-35F00 JET, PISTON COOLINGJET, PISTON COOLING
-
2709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2809106-06075 BOLT (6X12)BOLT (6X12)
-
2909241-26004 PLUGPLUG
-
3009246-05006 PLUGPLUG
-
3109248-12004 PLUG (L:12)PLUG (L:12)
-
3209248-16013 PLUGPLUG
-
3309168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
3409168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
3509280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
3609493-28012 JET (140)JET (140)
-
3711971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
3808331-4130A CIRCLIPCIRCLIP
-
3911371-01H00 COVER, BREATHERCOVER, BREATHER
-
4011484-01H00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
4113150-01H00 VALVE ASSY, BREATHER REEDVALVE ASSY, BREATHER REED
-
4211372-01H00 COVER, VALVECOVER, VALVE
-
4301547-0616A BOLTBOLT
-
4401547-0630A BOLTBOLT
-
4509103-10041-A05 BOLT (10X215)BOLT (10X215)
-
4609103-10145 BOLT (10X205)BOLT (10X205)
-
4709159-10115 NUTNUT
-
4809106-10069 BOLT (10X45)BOLT (10X45)
-
4909106-10070 BOLT (10X55)BOLT (10X55)
-
5011322-01H00 PLATE, LOWERPLATE, LOWER
-
5109103-06188 BOLT (6X10)BOLT (6X10)
