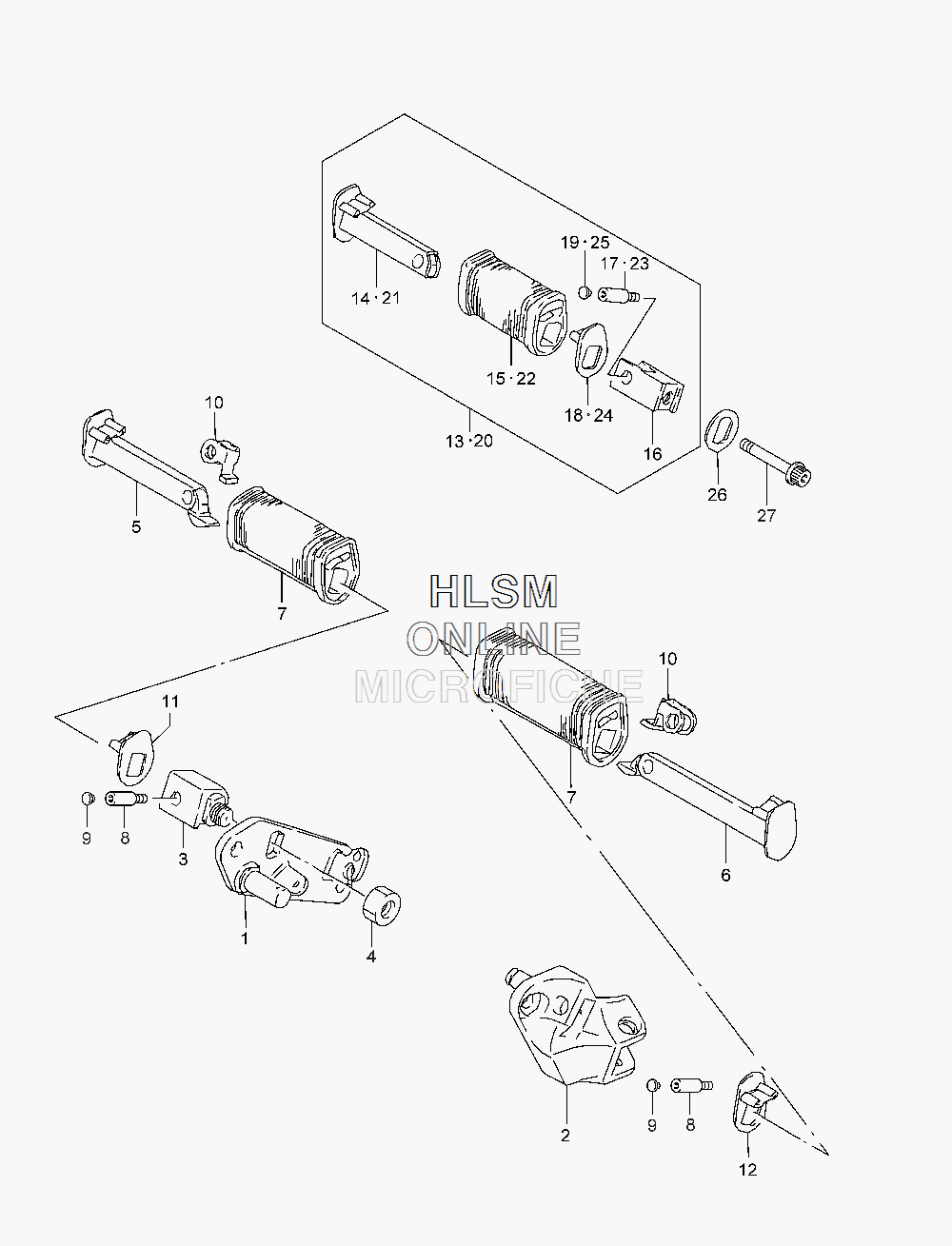

FOOTREST для Suzuki LS650 L3 SAVAGE - 2013 года выпуска
-
№АртикулНазвание
-
143510-24B00 BRACKET, FRONT FOOTREST RIGHTBRACKET, FRONT FOOTREST RIGHT
-
243520-24B22 BRACKET, FRONT FOOTREST LEFTBRACKET, FRONT FOOTREST LEFT
-
343517-24B01 HOLDER, FRONT FOOTREST RIGHTHOLDER, FRONT FOOTREST RIGHT
-
409140-16029 NUT 16MMNUT 16MM
-
543530-24B02 BAR, FRONT FOOTREST RIGHTBAR, FRONT FOOTREST RIGHT
-
643540-24B02 BAR, FRONT FOOTREST LEFTBAR, FRONT FOOTREST LEFT
-
743551-38A00 RUBBER, FRONT FOOTRESTRUBBER, FRONT FOOTREST
-
809106-06100 BOLT (6X8)BOLT (6X8)
-
943576-24B00 CAP, FRONT FOOTREST RUBBER BOLTCAP, FRONT FOOTREST RUBBER BOLT
-
1043570-24B01 CUSHION, FRONT FOOTRESTCUSHION, FRONT FOOTREST
-
1143470-24B00 WASHER, FRONT FOOTREST RIGHTWASHER, FRONT FOOTREST RIGHT
-
1243480-24B00 WASHER, FRONT FOOTREST LEFTWASHER, FRONT FOOTREST LEFT
-
1343600-24B00 FOOTREST ASSY, PILLION RIGHTFOOTREST ASSY, PILLION RIGHT
-
1443610-24B01 ...BAR, PILLION FOOTREST RIGHT...BAR, PILLION FOOTREST RIGHT
-
1543651-24B00 ...RUBBER, PILLION FOOTREST...RUBBER, PILLION FOOTREST
-
1643621-24B10 ...HOLDER, PILLION FOOTREST...HOLDER, PILLION FOOTREST
-
1709106-06100 ...BOLT (6X8)...BOLT (6X8)
-
1843570-38A00 ...WASHER, PILLION FOOTREST RIGHT...WASHER, PILLION FOOTREST RIGHT
-
1943576-24B00 ...CAP, PILLION FOOTREST BOLT...CAP, PILLION FOOTREST BOLT
-
2043700-24B00 FOOTREST ASSY, PILLION LEFTFOOTREST ASSY, PILLION LEFT
-
2143710-24B01 ...BAR, PILLION FOOTREST LEFT...BAR, PILLION FOOTREST LEFT
-
2243651-24B00 ...RUBBER, PILLION FOOTREST...RUBBER, PILLION FOOTREST
-
2309106-06100 ...BOLT (6X8)...BOLT (6X8)
-
2443580-38A00 ...WASHER, PILLION FOOTREST LEFT...WASHER, PILLION FOOTREST LEFT
-
2543576-24B00 ...CAP, PILLION FOOTREST BOLT...CAP, PILLION FOOTREST BOLT
-
2643622-24B00 WASHER, PILLION FOOTREST HOLDERWASHER, PILLION FOOTREST HOLDER
-
2709106-10086 BOLT (10X45)BOLT (10X45)
