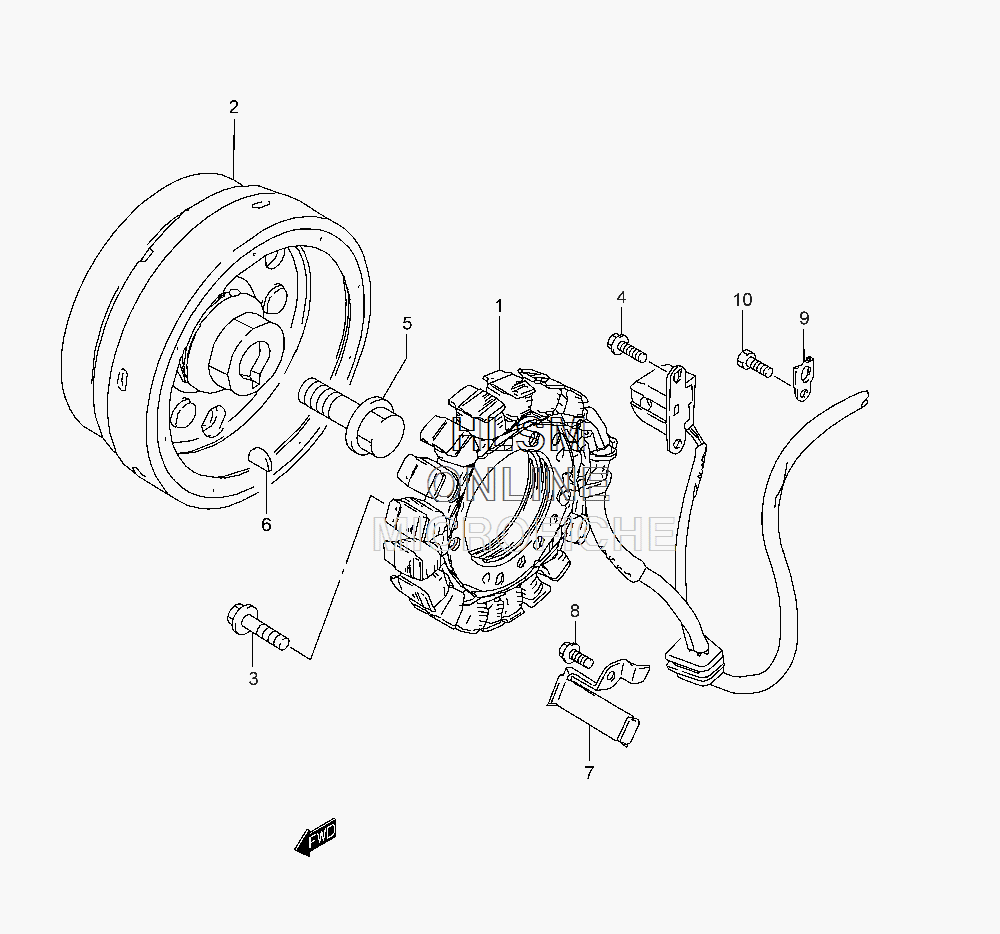

MAGNETO для Suzuki LS650 L3 SAVAGE - 2013 года выпуска
-
№АртикулНазвание
-
132101-24B02 STATOR ASSYSTATOR ASSY
-
232102-24B10 ROTORROTOR
-
301547-0625A BOLTBOLT
-
401547-0510A BOLTBOLT
-
509103-14001 BOLT (14X43)BOLT (14X43)
-
609420-05007 KEYKEY
-
732371-24B00 CLAMP, LEAD WIRE NO.1CLAMP, LEAD WIRE NO.1
-
801547-0510A BOLTBOLT
-
931497-45000 CLAMP, LEAD WIRE NO.2CLAMP, LEAD WIRE NO.2
-
1009100-05019 BOLT (5X10)BOLT (5X10)
Все узлы модели:
- ACCESSORIES
- AIR CLEANER
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE PEDAL W/ STAND
- CAM CHAIN ASSY. W/ TENSIONER
- CAMSHAFT W/ VALVES
- CARBURETOR ASSY.
- CARBURETOR ASSY. (CALIF ONLY)
- CARBURETOR ASSY. (CANADA ONLY)
- CLUTCH
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS - WARNING LABEL
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- ELECTRICAL - WIRING HARNESS (CALIF ONLY)
- ELECTRICAL - WIRING HARNESS (CANADA ONLY)
- EVAP SYSTEM (CALIF ONLY)
- FENDER - FRONT
- FENDER - REAR
- FOOTREST
- FRAME
- FUEL COCK ASSY.
- FUEL TANK
- FUEL TANK (CALIF ONLY)
- FUEL TANK (CANADA ONLY)
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR
- HANDLEBAR - LEVERS
- HANDLEBAR - LEVERS / SWITCHES
- HEADLAMP
- • MAGNETO
- MUFFLER
- OIL PUMP
- PILLION HANDLE
- SEAT
- SIDE COVER
- SPEEDOMETER
- SPEEDOMETER (CALIF ONLY)
- SPEEDOMETER (CANADA ONLY)
- STARTER CLUTCH
- STARTING MOTOR
- STEERING STEM
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SWING ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- TURN SIGNAL ASSY.
- WARNING LABEL (CALIF ONLY)
- WARNING LABEL (CANADA ONLY)
- WHEEL - FRONT
- WHEEL - REAR
