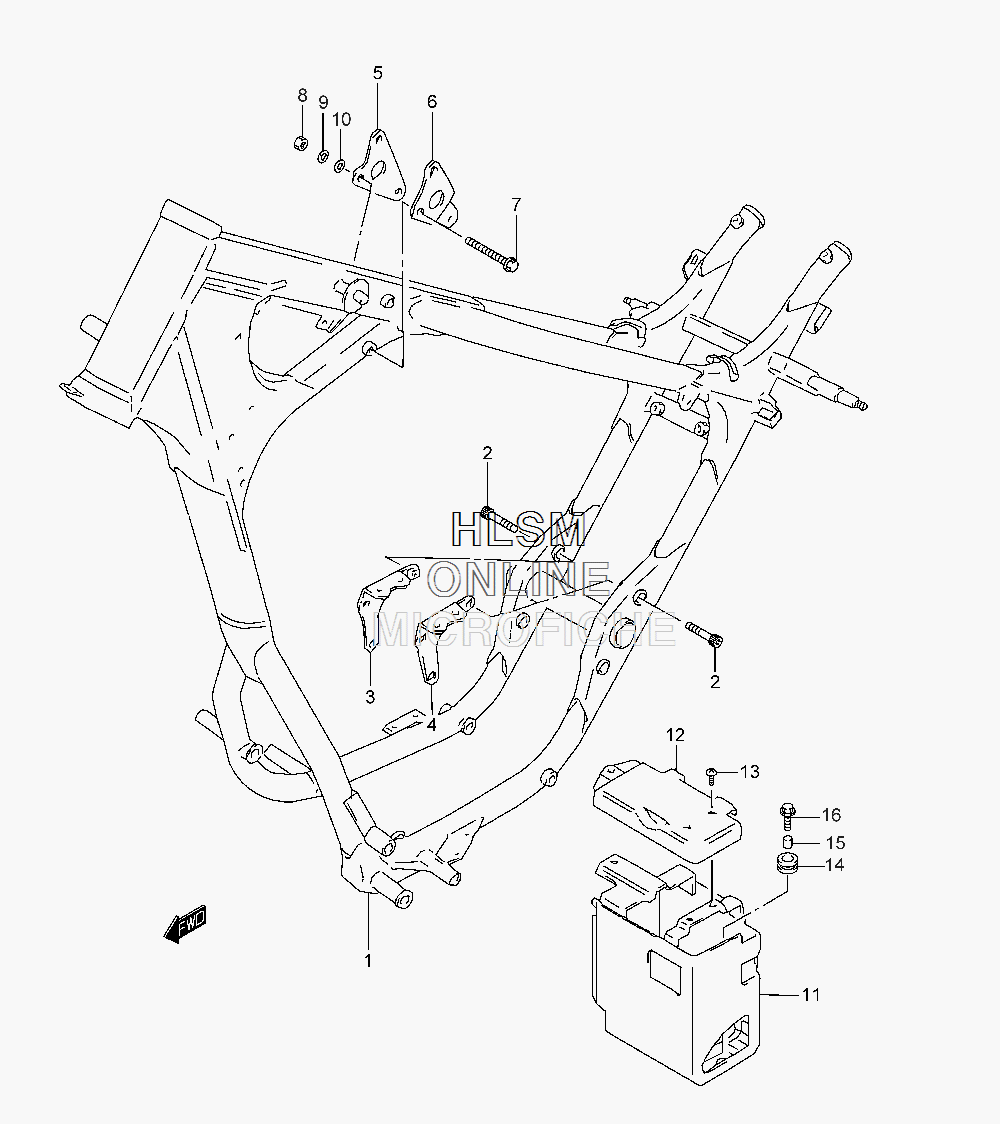

FRAME для Suzuki LS650 L3 SAVAGE - 2013 года выпуска

№

Артикул

Название
1

41100-24B10-019 FRAME (019 - BLACK)

FRAME (019 - BLACK)

8 858 200 ₽
2

09106-08074 BOLT (8X40)

BOLT (8X40)

650 ₽
3

41970-24B00-019 PLATE, ENGINE MOUNTING NO.4 RIGHT (019 - BLACK)

PLATE, ENGINE MOUNTING NO.4 RIGHT (019 - BLACK)

72 800 ₽
4

41980-24B00-019 PLATE, ENGINE MOUNTING NO.4 LEFT (019 - BLACK)

PLATE, ENGINE MOUNTING NO.4 LEFT (019 - BLACK)

72 800 ₽
5

41991-24B00-019 PLATE, ENGINE MOUNTING NO.5 RIGHT (019 - BLACK)

PLATE, ENGINE MOUNTING NO.5 RIGHT (019 - BLACK)

42 900 ₽
6

41992-24B00-019 PLATE, ENGINE MOUNTING NO.5 LEFT (019 - BLACK)

PLATE, ENGINE MOUNTING NO.5 LEFT (019 - BLACK)

42 900 ₽
7

09103-08279 BOLT (8X72)

BOLT (8X72)

0 ₽
8

08319-2108A NUT

NUT

350 ₽
9

08321-0108B LOCK WASHER

LOCK WASHER

390 ₽
10

08322-0108B WASHER

WASHER

390 ₽
11

41540-24B01 HOLDER, BATTERY

HOLDER, BATTERY

14 490 ₽
12

41576-24B01 COVER, BATTERY

COVER, BATTERY

5 370 ₽
13

02142-04107 SCREW

SCREW

220 ₽
14

09320-08021 CUSHION

CUSHION

550 ₽
15

09180-06260 SPACER (6.5X9X7.2)

SPACER (6.5X9X7.2)

590 ₽
16

09116-06010 BOLT (6X20)

BOLT (6X20)

340 ₽
