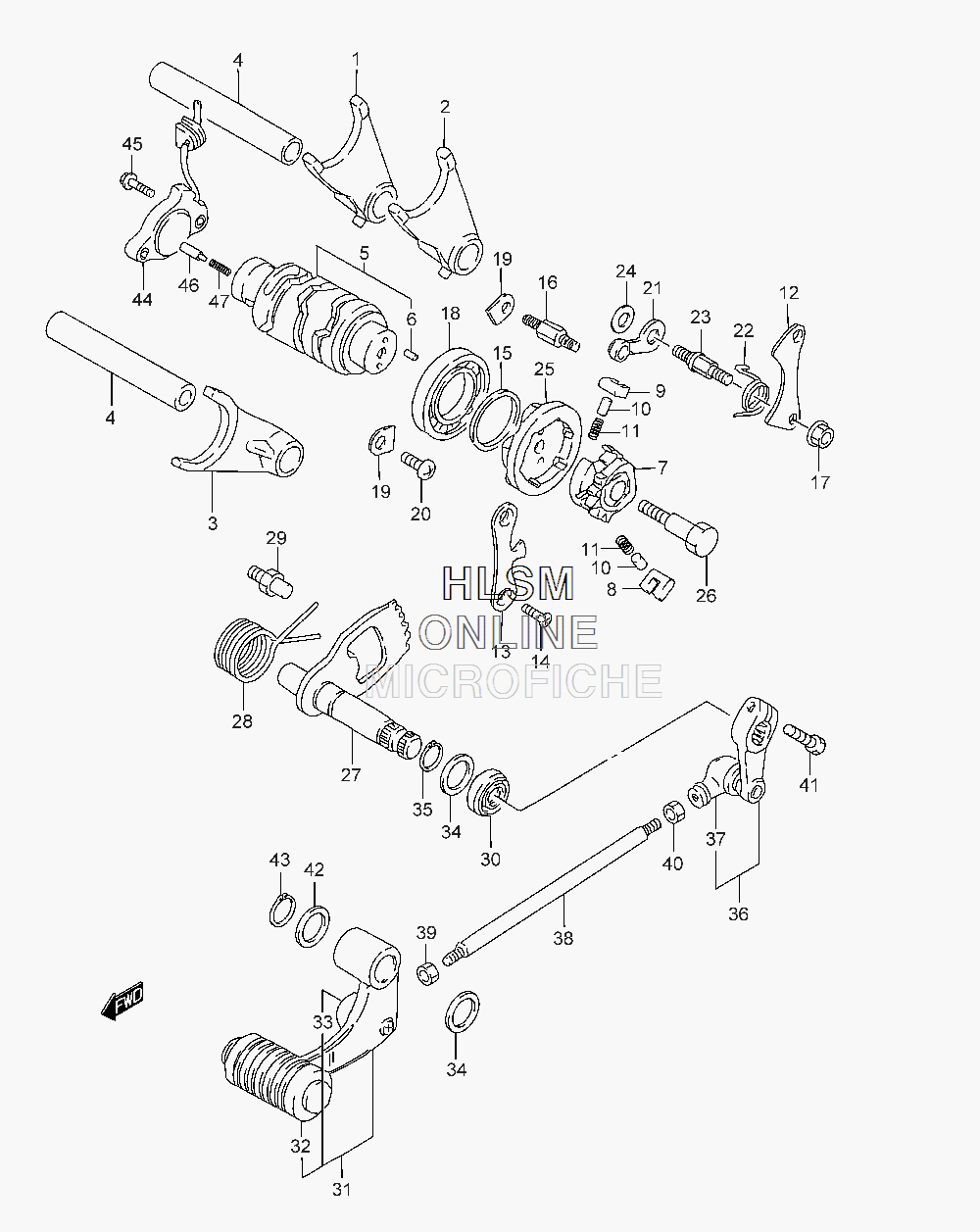

GEAR SHIFTING для Suzuki LS650 L3 SAVAGE - 2013 года выпуска
-
№АртикулНазвание
-
125211-24B10 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
225221-24B10 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
325231-24B10 FORK, GEAR SHIFTING NO.3FORK, GEAR SHIFTING NO.3
-
425411-24B00 SHAFT, GEAR SHIFTING FORKSHAFT, GEAR SHIFTING FORK
-
525310-24B11 CAM, GEAR SHIFTINGCAM, GEAR SHIFTING
-
604221-04089 ...PIN...PIN
-
725322-31310 GEAR, GEAR SHIFT CAM DRIVENGEAR, GEAR SHIFT CAM DRIVEN
-
825323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
925324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1009261-05003 PIN (5X8)PIN (5X8)
-
1109440-04003 SPRINGSPRING
-
1225331-38A00 LIFTER, GEAR SHIFT PAWLLIFTER, GEAR SHIFT PAWL
-
1325341-38A00 GUIDE, GEAR SHIFT CAMGUIDE, GEAR SHIFT CAM
-
1402122-0612A SCREWSCREW
-
1509160-25059 WASHER (25X32X3)WASHER (25X32X3)
-
1625332-24B01 BOSS, SHIFT PAWL LIFTERBOSS, SHIFT PAWL LIFTER
-
1708316-1006A NUTNUT
-
1809262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1924741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
2002112-0612A SCREWSCREW
-
2125350-24B00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2209448-17021 SPRINGSPRING
-
2325356-12C00 SUPPORT, CAM STOPPER ARMSUPPORT, CAM STOPPER ARM
-
2408211-06141 WASHERWASHER
-
2525380-38A02 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
2625312-38A00 PIN, GEAR SHIFT CAM DRIVEN GEARPIN, GEAR SHIFT CAM DRIVEN GEAR
-
2725510-24B01 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
2809444-26013 SPRINGSPRING
-
2925671-01011 STOPPER, SHIFT ARMSTOPPER, SHIFT ARM
-
3009285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
3125600-24B03 LEVER ASSY, GEAR SHIFTINGLEVER ASSY, GEAR SHIFTING
-
3225652-20C00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3325526-47000 ...COVER, DUST...COVER, DUST
-
3409160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3508331-3112A CIRCLIPCIRCLIP
-
3625520-22A00 ARM, GEAR SHIFTARM, GEAR SHIFT
-
3725526-47000 ...COVER, DUST...COVER, DUST
-
3825525-21E50 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3909140-06025 NUTNUT
-
4008310-0006A NUTNUT
-
4101500-0620A SCREWSCREW
-
4208212-12201 WASHERWASHER
-
4308331-3112A CIRCLIPCIRCLIP
-
4437720-24B30 BASE ASSY, NEUT SWITCH TERMBASE ASSY, NEUT SWITCH TERM
-
4502112-7516A SCREWSCREW
-
4609209-05011 PIN (5X15.5)PIN (5X15.5)
-
4709440-04010 SPRINGSPRING
