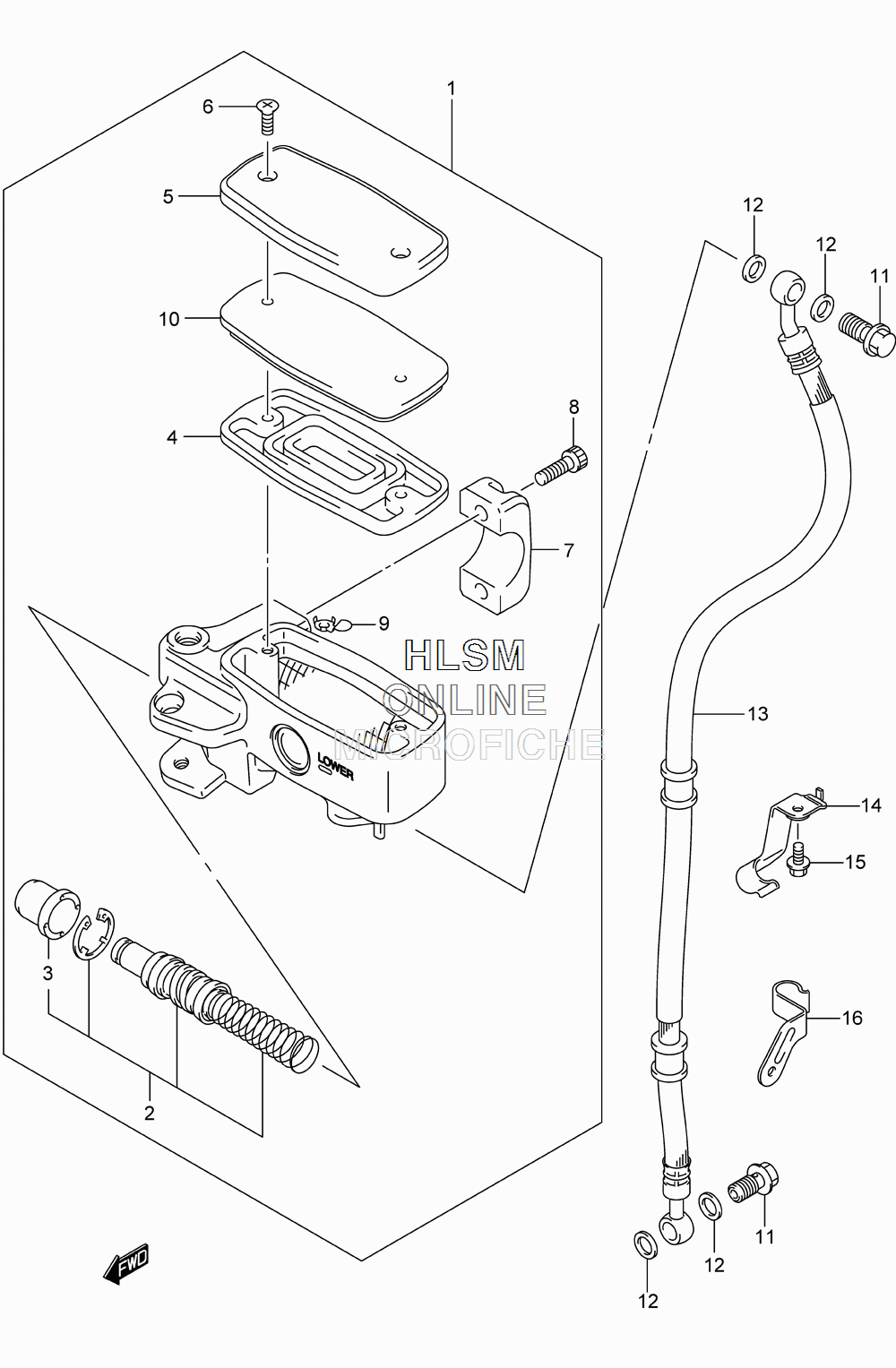

BRAKE - FRONT MASTER CYLINDER для Suzuki VZ800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
159600-10F71 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-04810 ...PISTON/CUP SET...PISTON/CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-10F00 ...DIAPHRAGM...DIAPHRAGM
-
559669-10F10 ...CAP...CAP
-
602122-04127 ...SCREW...SCREW
-
759671-10F00 ...HOLDER...HOLDER
-
807130-06207 ...BOLT...BOLT
-
959664-32F00 ...PROTECTOR...PROTECTOR
-
1057437-10F00 ...PLATE...PLATE
-
1109360-10062 UNIONL, BRAKEUNIONL, BRAKE
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-39G20 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459266-43H00 CLAMP, BRAKE HOSE UPPERCLAMP, BRAKE HOSE UPPER
-
1501547-0612B BOLTBOLT
-
1659268-39G00 CLAMP, FR BRAKE HOSECLAMP, FR BRAKE HOSE
