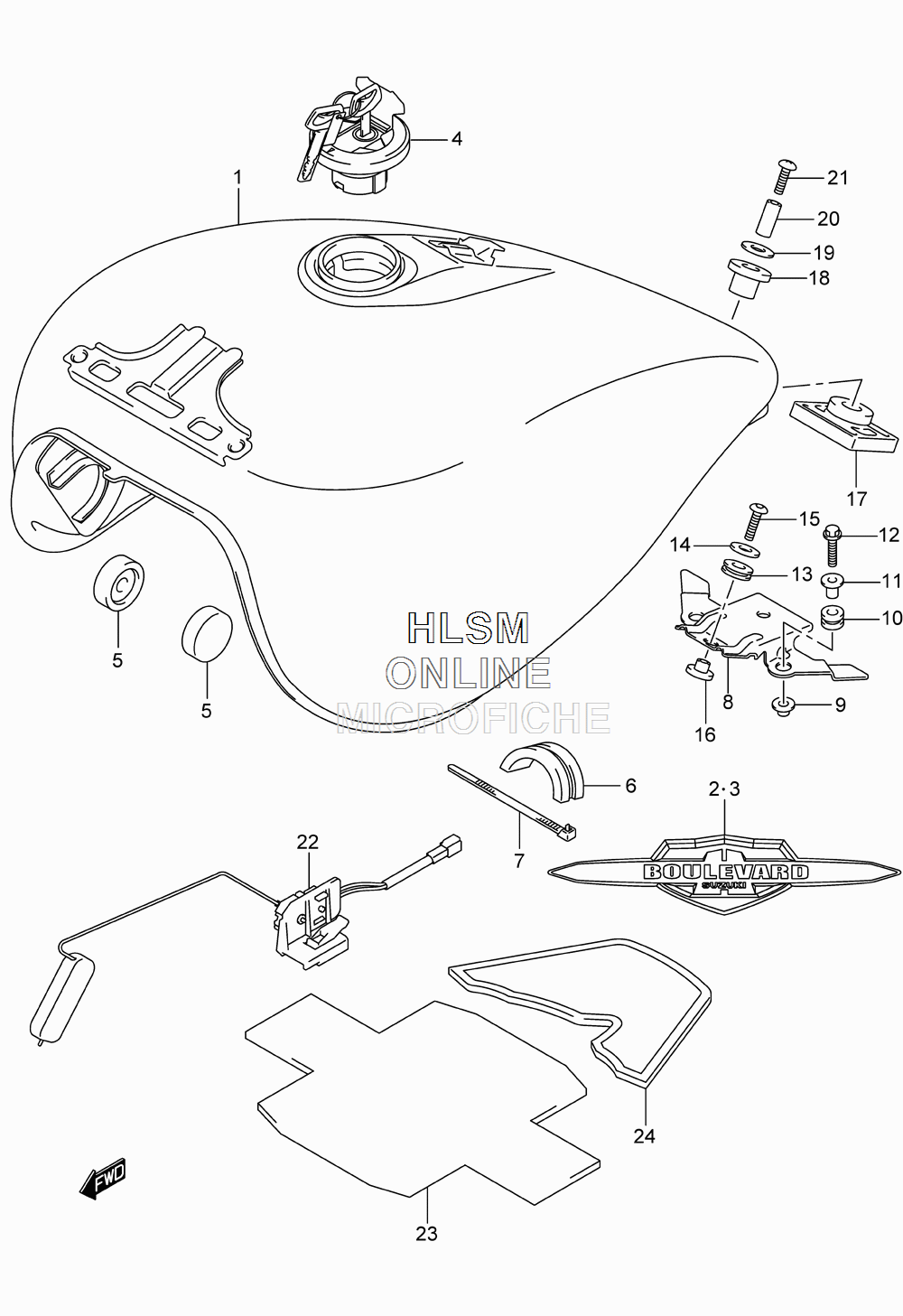

FUEL TANK для Suzuki VZ800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
144100-39GK0-YMD TANK ASSY, FUEL (YMD - SILVER)TANK ASSY, FUEL (YMD - SILVER)
-
144100-39GK0-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
268111-39G01 EMBLEM, RIGHTEMBLEM, RIGHT
-
368121-39G01 EMBLEM, LEFTEMBLEM, LEFT
-
444200-39830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509329-10007 CUSHIONCUSHION
-
644541-14F10 CUSHION, SIDECUSHION, SIDE
-
709407-25402 CLAMP (L:248)CLAMP (L:248)
-
844530-39G20 BRACKET, REARBRACKET, REAR
-
909169-06076 WASHERWASHER
-
1009320-08001 CUSHIONCUSHION
-
1109169-06070 WASHERWASHER
-
1202162-0625B SCREWSCREW
-
1309320-12011 CUSHIONCUSHION
-
1409160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
1509106-08150 BOLT (8X23)BOLT (8X23)
-
1644512-39G00 WASHERWASHER
-
1744542-41F00 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
1844541-41F01 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
1909180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
2009160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2101550-0835A BOLTBOLT
-
2234810-39G00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
2344192-39G00 SHIELD, TANK HEATSHIELD, TANK HEAT
-
2444193-39G00 SHIELD, TANK HEAT NO.2SHIELD, TANK HEAT NO.2
