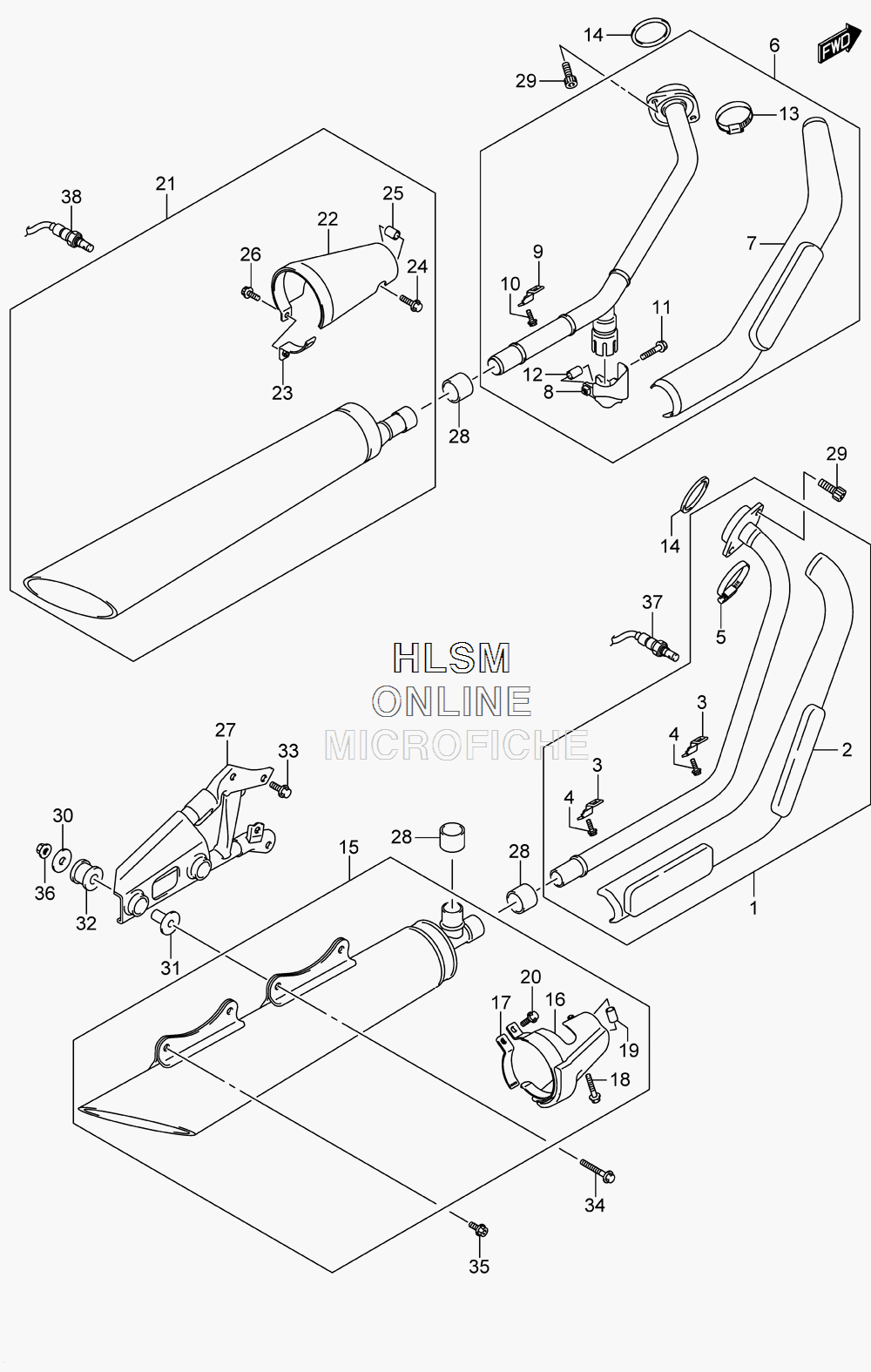

MUFFLER для Suzuki VZ800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
114150-39G10 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
214193-39G00 ...COVER...COVER
-
314185-41F00 ...CLAMP...CLAMP
-
407120-0616A ...BOLT...BOLT
-
514185-39G00 ...BAND...BAND
-
614160-39G00 PIPE, EXHAUST REARPIPE, EXHAUST REAR
-
714194-39G00 ...COVER...COVER
-
814195-39G00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
914185-41F00 ...CLAMP...CLAMP
-
1007120-0616A ...BOLT...BOLT
-
1109103-08365 ...BOLT (8X35)...BOLT (8X35)
-
1214167-22H00 ...SPACER...SPACER
-
1314185-39G00 ...BAND...BAND
-
1414181-10F00 GASKET, EXHAUSTGASKET, EXHAUST
-
1514310-39G10-H01 MUFFLER, FRONTMUFFLER, FRONT
-
1614344-39G00 ...COVER...COVER
-
1714399-22H00 ...CLAMP...CLAMP
-
1809103-08365 ...BOLT (8X35)...BOLT (8X35)
-
1914167-22H00 ...SPACER...SPACER
-
2007120-0616A ...BOLT...BOLT
-
2114340-39G10-H01 MUFFLER, REARMUFFLER, REAR
-
2214345-39G00 ...COVER...COVER
-
2314399-22H00 ...CLAMP...CLAMP
-
2409103-08365 ...BOLT (8X35)...BOLT (8X35)
-
2514167-22H00 ...SPACER...SPACER
-
2607120-0616A ...BOLT...BOLT
-
2714410-39G00 BRACKETBRACKET
-
2814771-39G00 CONNECTORCONNECTOR
-
2909106-08165 BOLT (8X25)BOLT (8X25)
-
3009160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
3109180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
3209320-12049 CUSHIONCUSHION
-
3309103-08283-A05 BOLT (8X16)BOLT (8X16)
-
3401550-0845B BOLTBOLT
-
3509106-08107 BOLT (8X20)BOLT (8X20)
-
3608361-2508A NUTNUT
-
3718213-15H01 SENSOR, OXYGENSENSOR, OXYGEN
-
3818213-23H01 SENSOR, OXYGENSENSOR, OXYGEN
