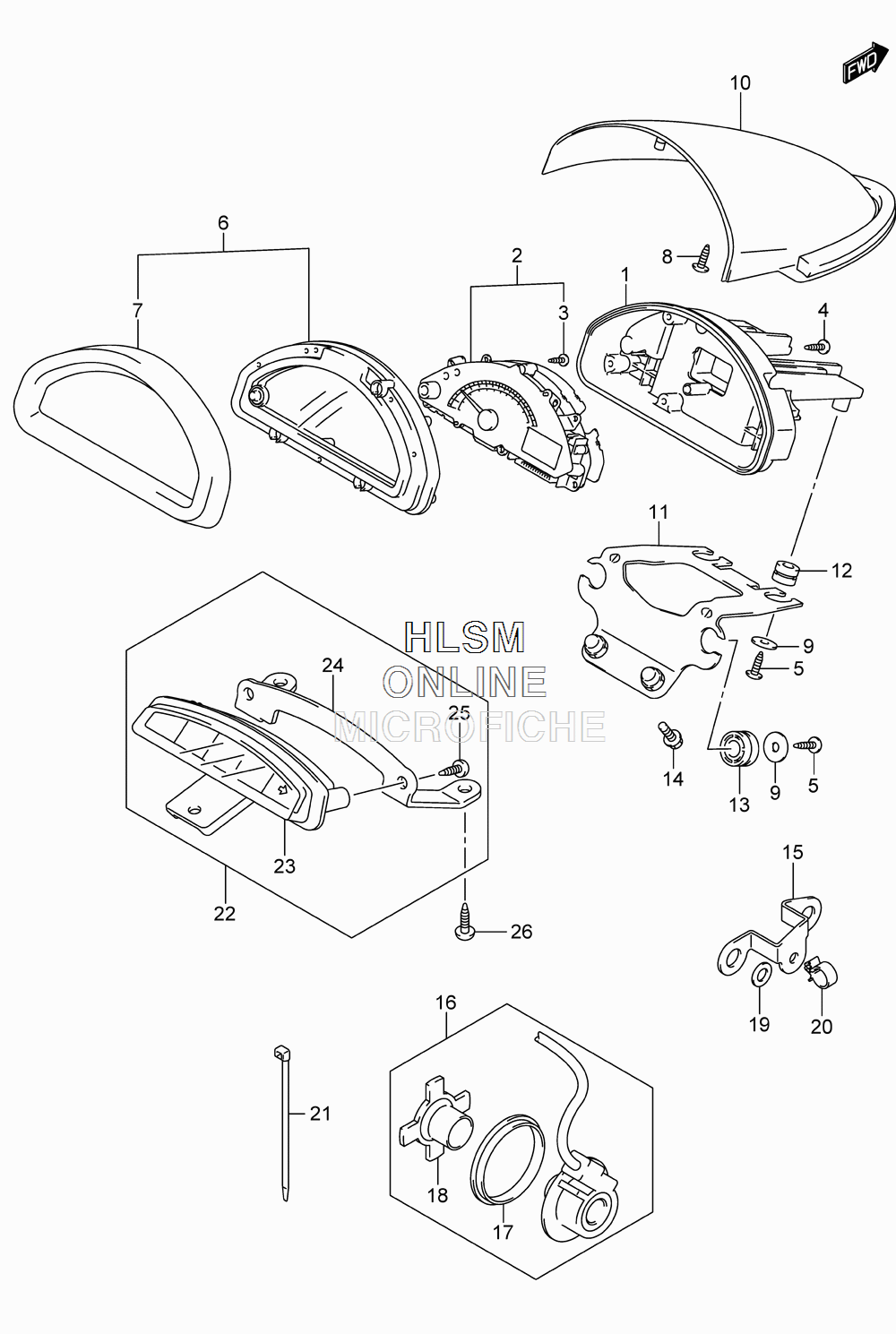

SPEEDOMETER для Suzuki VZ800 L3 - 2013 года выпуска
-
№АртикулНазвание
-
134111-40H00 LOWER CASELOWER CASE
-
234120-39GD0 SPEEDOMETERSPEEDOMETER
-
334149-03G00 ...SCREW (3X14)...SCREW (3X14)
-
434149-03G00 SCREW (3X14)SCREW (3X14)
-
534149-40H00 SCREW (5X16)SCREW (5X16)
-
634150-40H00 UPPER CASEUPPER CASE
-
734256-40H00 ...UPPER COVER...UPPER COVER
-
834184-12B00 SCREWSCREW
-
934189-40H00 WASHER (5.2X20X1.0)WASHER (5.2X20X1.0)
-
1034257-39GC0 COVER ASSY, LOWERCOVER ASSY, LOWER
-
1134952-39GC0 BRACKETBRACKET
-
1234955-39G00 DAMPER NO.2DAMPER NO.2
-
1334955-39G10 DAMPER NO.1DAMPER NO.1
-
1401547-0612A BOLTBOLT
-
1534938-39G10 GUIDE, SPEED SENSOR LEADGUIDE, SPEED SENSOR LEAD
-
1634990-39G00 SENSOR, SPEEDSENSOR, SPEED
-
1709286-44001 ...OIL SEAL (44X55X6)...OIL SEAL (44X55X6)
-
1834983-27G00 ...MAGNET...MAGNET
-
1909160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
2009403-06410 CLAMPCLAMP
-
2109407-14407 CLAMP (L:145)CLAMP (L:145)
-
2236380-39G10 BOX ASSY, PILOT LAMPBOX ASSY, PILOT LAMP
-
2336381-39G10 ...CASE UNIT...CASE UNIT
-
2436386-39G00 ...BRACKET, PILOT LAMP...BRACKET, PILOT LAMP
-
2503241-0512A ...SCREW...SCREW
-
2603511-0512B SCREWSCREW
