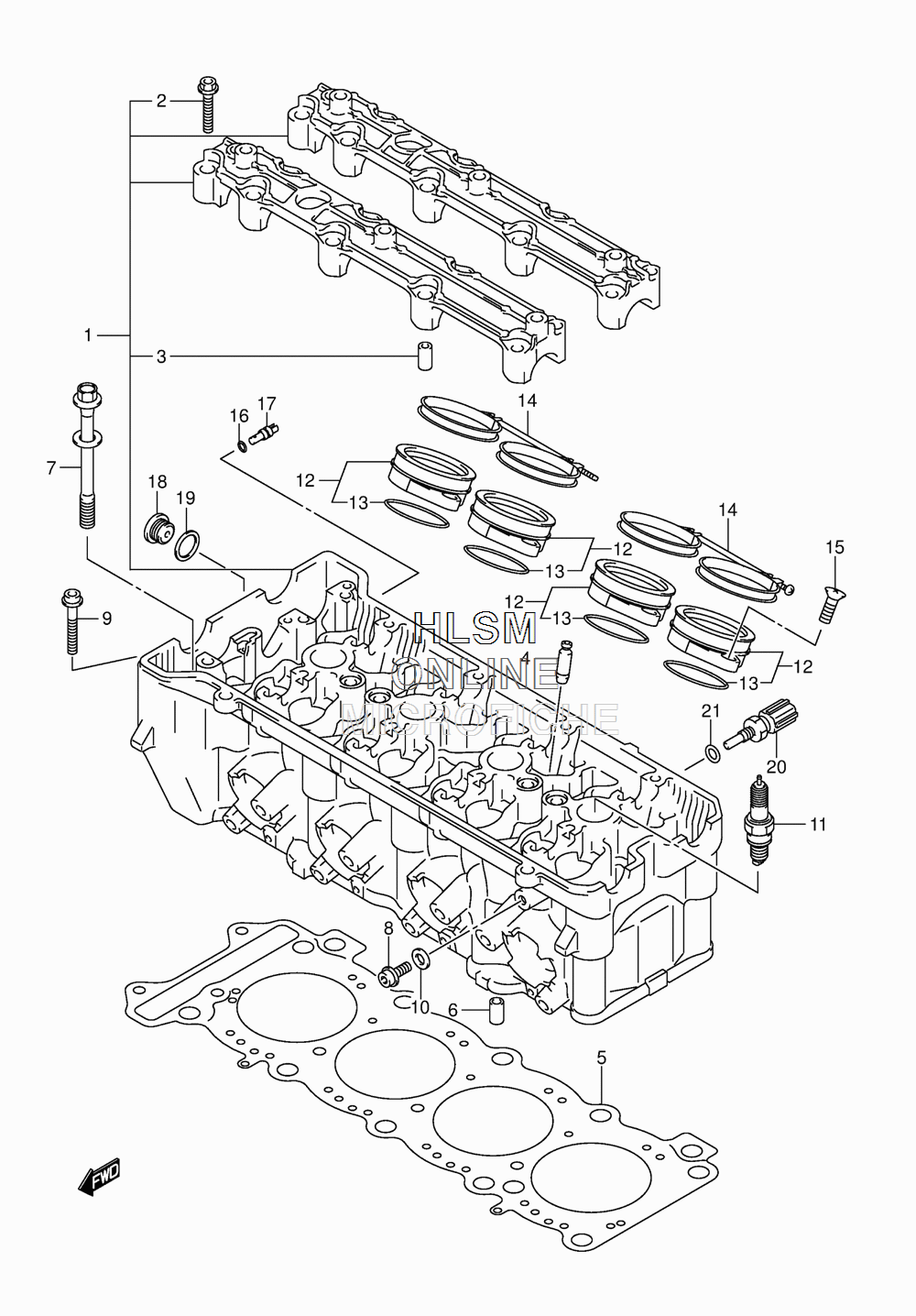

CYLINDER HEAD для Suzuki GSX-1000RZ L4 - 2014 года выпуска
-
№АртикулНазвание
-
111100-47H10 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06266 BOLT (6X40)BOLT (6X40)
-
309206-08007 PIN (6.2X8X16)PIN (6.2X8X16)
-
411115-29G70 GUIDE, VALVE (OS 0.3)GUIDE, VALVE (OS 0.3)
-
511141-47H01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-11169 PIN 11X16PIN 11X16
-
711117-30G00 BOLT CYLINDER HEAD L105BOLT CYLINDER HEAD L105
-
809103-06222 BOLT (6X12)BOLT (6X12)
-
907120-0650A BOLTBOLT
-
1009168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1109482-00558 SPARK PLUG (CR9EIA-9)SPARK PLUG (CR9EIA-9)
-
1109482-00557 SPARK PLUG (IU27D)SPARK PLUG (IU27D)
-
1109482-00556 SPARK PLUG (CR8EIA-9)SPARK PLUG (CR8EIA-9)
-
1109482-00560 SPARK PLUG (CR10EIA-9)SPARK PLUG (CR10EIA-9)
-
1109482-00555 SPARK PLUG (IU24D)SPARK PLUG (IU24D)
-
1109482-00559 SPARK PLUG (IU31D)SPARK PLUG (IU31D)
-
1213101-47H00 PIPE, INTAKEPIPE, INTAKE
-
1309280-48010 O RING (D:2.4,ID:47.2)O RING (D:2.4,ID:47.2)
-
1413170-47H00 CLAMPCLAMP
-
1502122-0616B SCREWSCREW
-
1609280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1709493-32006 JET, OIL GALY (16)JET, OIL GALY (16)
-
1809248-16012 PLUG (16X8)PLUG (16X8)
-
1909168-16009 GASKET (16X22X0.8)GASKET (16X22X0.8)
-
2013650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2109168-12017 GASKET (12X17X1)GASKET (12X17X1)
