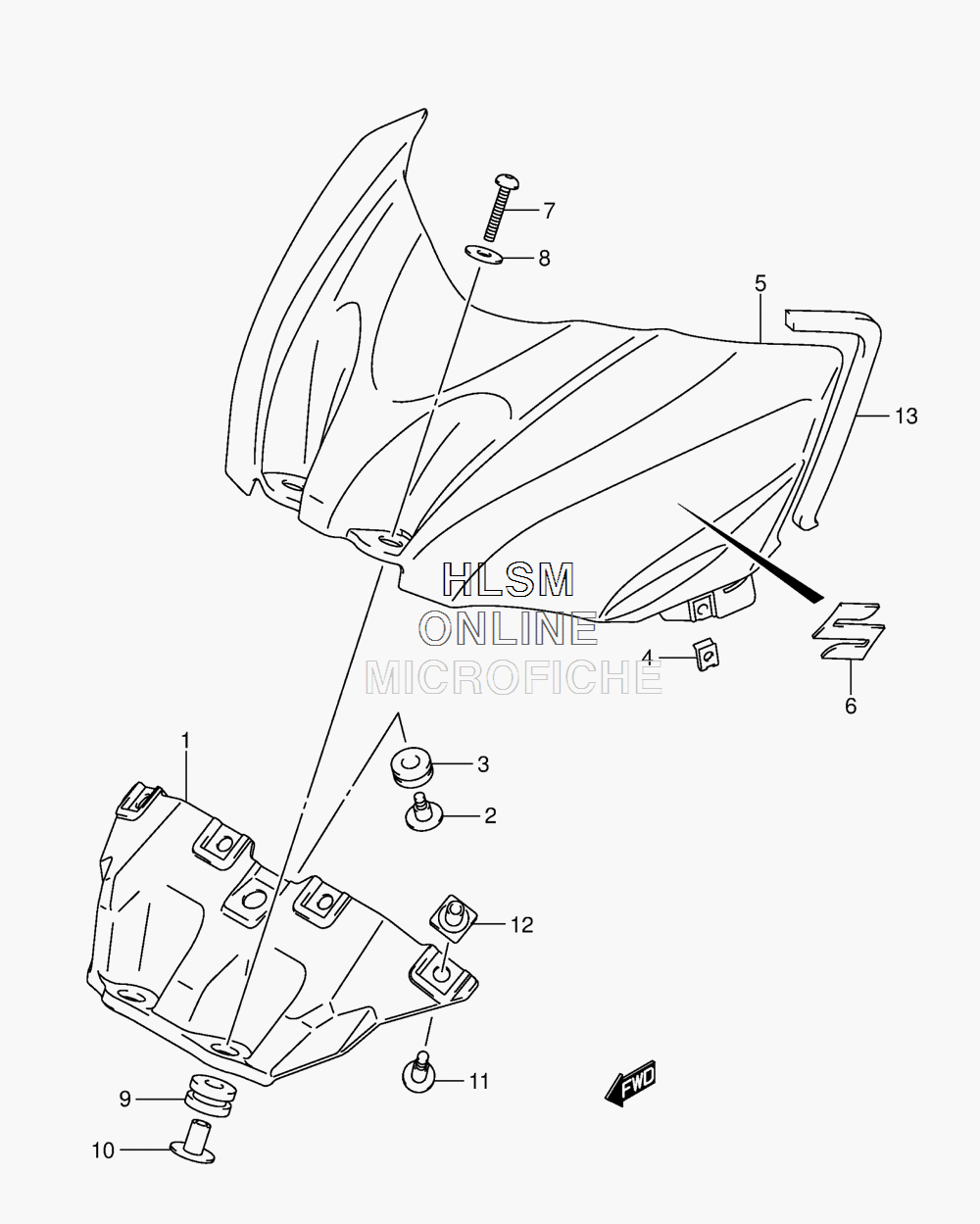

FUEL TANK - FRONT COVER (CANADA) для Suzuki GSX-1000RZ L4 - 2014 года выпуска
-
№АртикулНазвание
-
144521-47H00 BRACKET, FRONTBRACKET, FRONT
-
209139-05078 SCREW (5X16.4)SCREW (5X16.4)
-
309320-08021 CUSHIONCUSHION
-
409148-05052 NUTNUT
-
544291-47H10-YWW COVER, FRONT (WHITE)COVER, FRONT (WHITE)
-
668111-47HA0 EMBLEM ''S''EMBLEM ''S''
-
709139-06105 SCREW (6X40)SCREW (6X40)
-
809160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
909320-10050 CUSHIONCUSHION
-
1044512-47H00 SPACERSPACER
-
1109139-06181 SCREW (6X10)SCREW (6X10)
-
1244523-47H00 NUTNUT
-
1344277-37H00 CUSHIONCUSHION
