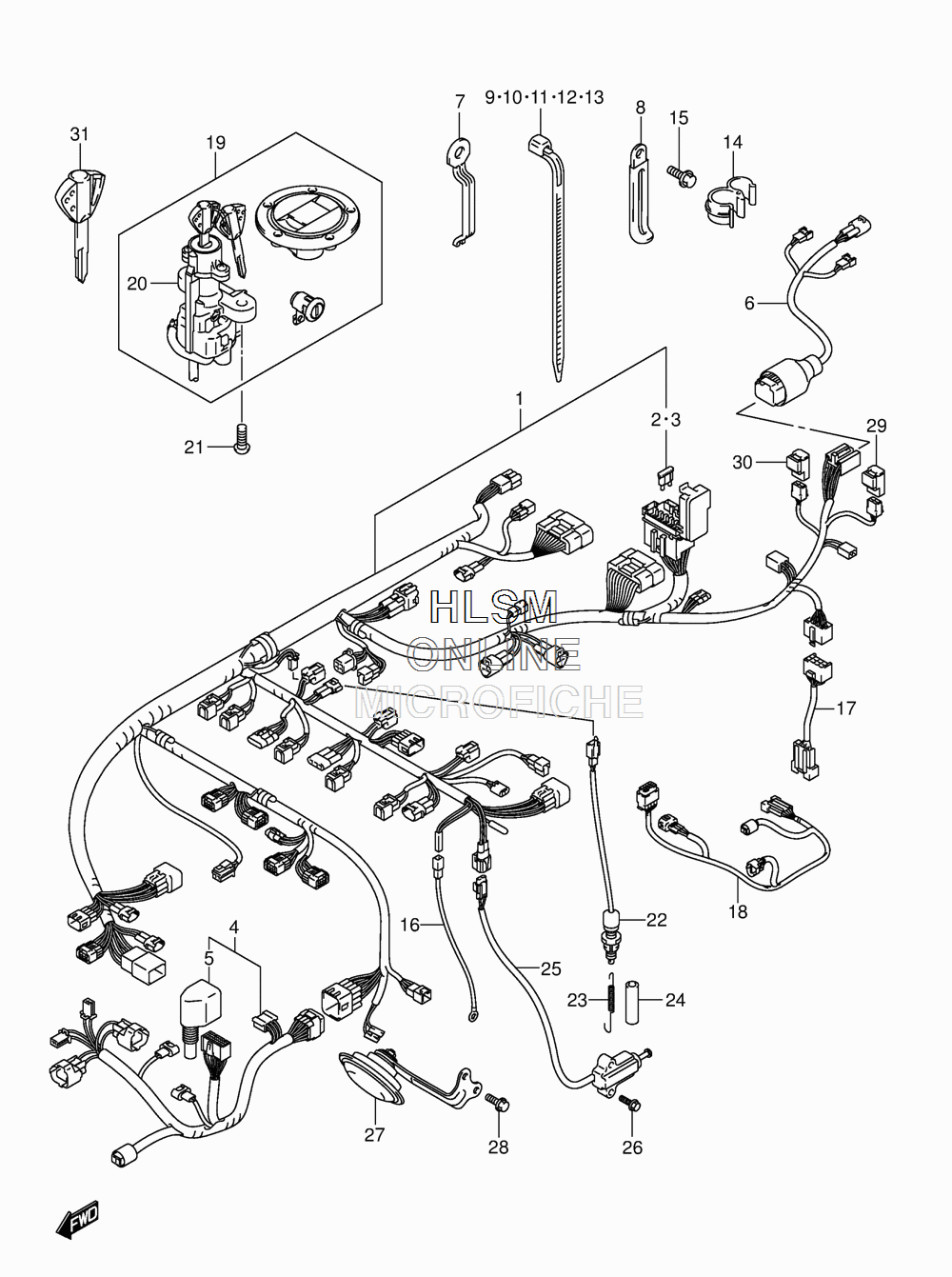

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki GSX-1000RZ L4 - 2014 года выпуска
-
№АртикулНазвание
-
136610-47HB0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436620-47H10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536618-47H00 COVER, CONNECTORCOVER, CONNECTOR
-
636855-47H00 WIRE, REARCOMBINATIONWIRE, REARCOMBINATION
-
709403-06322 CLAMPCLAMP
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
1009407-11401 CLAMP (L:95)CLAMP (L:95)
-
1109407-18402 CLAMP (L:165)CLAMP (L:165)
-
1209407-19401 CLAMP (L:190)CLAMP (L:190)
-
1309407-19401 CLAMP (L:190)CLAMP (L:190)
-
1409408-00242 CLAMPCLAMP
-
1501547-0612A BOLTBOLT
-
1636851-47H00 WIRE, OIL PRESSURE SWITCHWIRE, OIL PRESSURE SWITCH
-
1736857-47H00 WIRE, RELAY LEADWIRE, RELAY LEAD
-
1836859-47H10 WIRE, ISC LEADWIRE, ISC LEAD
-
1937101-42830 LOCK SETLOCK SET
-
2037100-41G80 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2109139-08016 BOLT (8X20)BOLT (8X20)
-
2237740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2309443-06087 SPRINGSPRING
-
2409352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2537840-47H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2609103-06286 BOLT (6X20)BOLT (6X20)
-
2738500-47H00 HORN ASSYHORN ASSY
-
2801550-0616B BOLTBOLT
-
2938740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3038740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
3137146-41G00 KEY, BLANKKEY, BLANK
