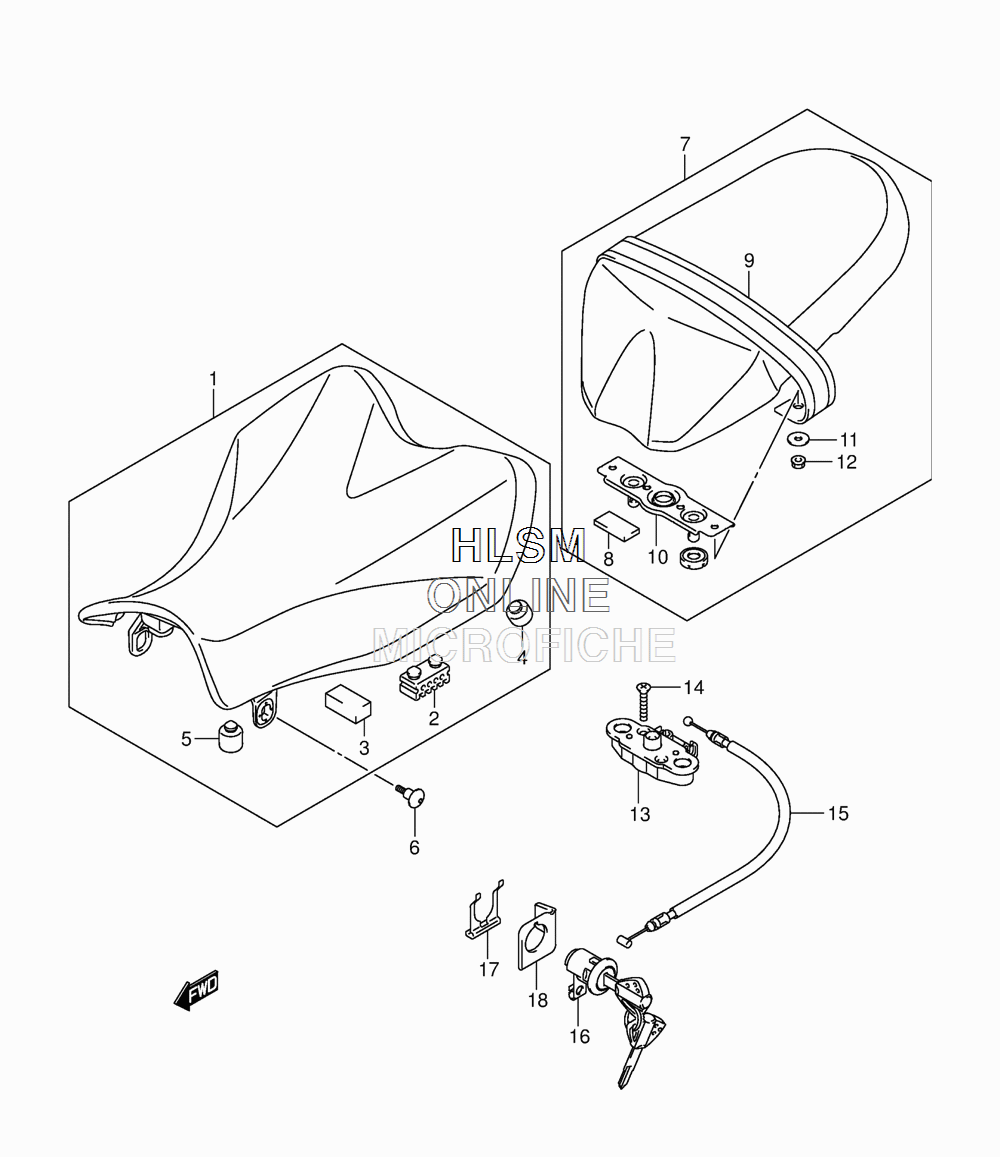

SEAT для Suzuki GSX-1000RZ L4 - 2014 года выпуска
-
№АртикулНазвание
-
145100-47H10-AQT SEAT ASSY (BLUE/BLACK)SEAT ASSY (BLUE/BLACK)
-
245149-19D00 CUSHION, SIDECUSHION, SIDE
-
345149-31E00 CUSHION, FRONT (20X40X15)CUSHION, FRONT (20X40X15)
-
409321-10011 CUSHIONCUSHION
-
509321-10034 CUSHIONCUSHION
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
745300-47H20-PQU SEAT ASSY, PILLION (BLUE)SEAT ASSY, PILLION (BLUE)
-
845149-31E00 CUSHION, FRONT (20X40X15)CUSHION, FRONT (20X40X15)
-
945180-47H00-P3H BAND ASSY, SEAT (BLACK)BAND ASSY, SEAT (BLACK)
-
1045290-47H01 STRIKERSTRIKER
-
1109160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1208316-1006A NUTNUT
-
1345220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1402122-0630A SCREWSCREW
-
1545280-47H00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1695700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1745289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
1845288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
