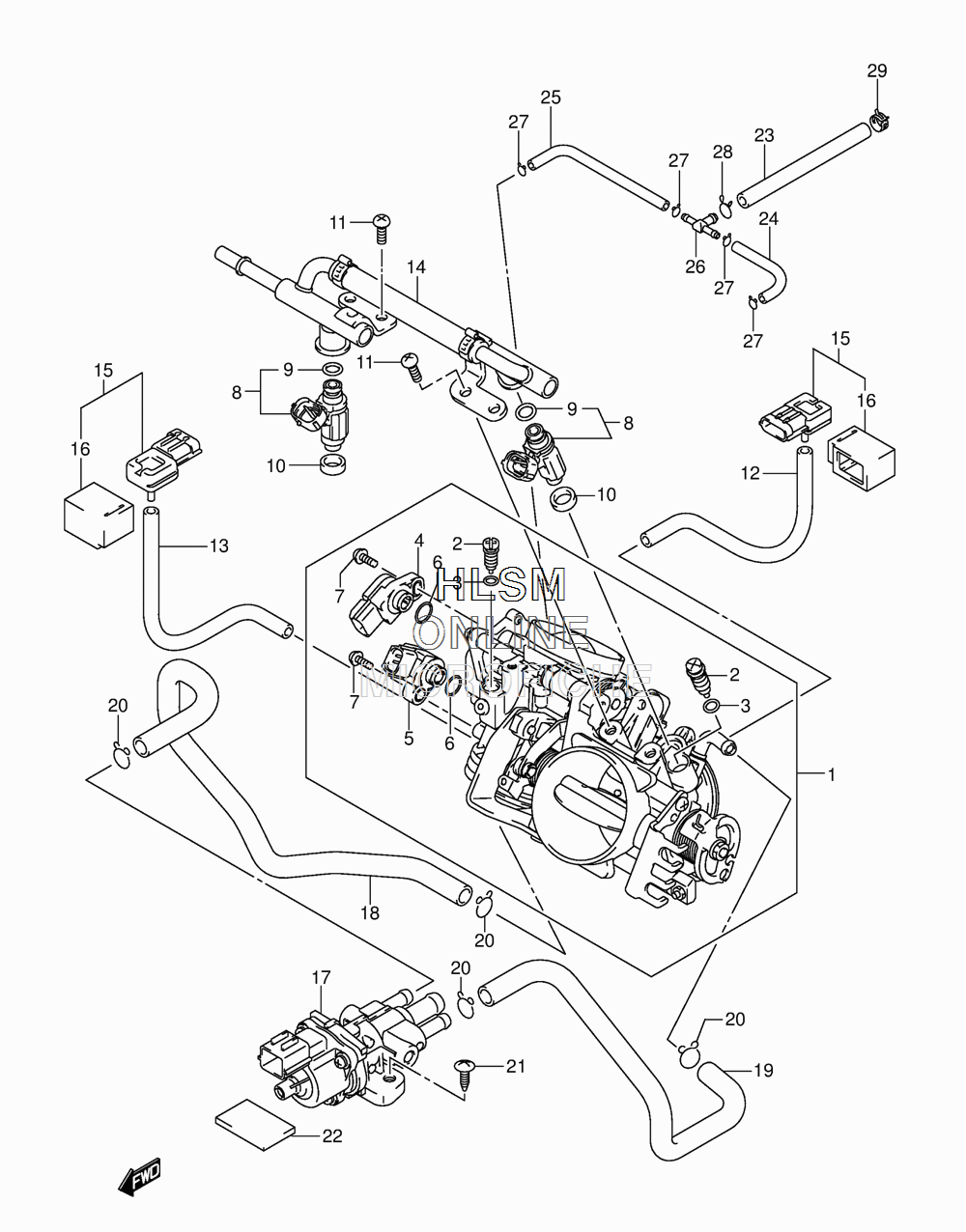

CARBURETOR - THROTTLE BODY (CALIF.) для Suzuki VZR1800BZ L4 BOULEVARD M109R BLACK EDITION - 2014 года выпуска
-
№АртикулНазвание
-
113405-48G30 BODY, THROTTLEBODY, THROTTLE
-
213269-48G00 ADJUSTERADJUSTER
-
313521-29FA0 O RINGO RING
-
413580-29G00 SENSOR ASSYSENSOR ASSY
-
513580-48G00 SENSOR ASSYSENSOR ASSY
-
613575-29G00 O RINGO RING
-
713605-02F00 SCREWSCREW
-
815710-48G00 INJECTOR ASSYINJECTOR ASSY
-
915717-58B00 O RINGO RING
-
1015722-29G00 SEALSEAL
-
1113602-06148 SCREWSCREW
-
1213683-48G00 HOSEHOSE
-
1313683-48G10 HOSEHOSE
-
1415730-48G01 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1515630-29G10 SENSOR, PRESSURESENSOR, PRESSURE
-
1615625-29G00 COVERCOVER
-
1718117-48G00 VALVE, ISCVALVE, ISC
-
1813697-48G00 HOSE, RIGHT HANDHOSE, RIGHT HAND
-
1913698-48G00 HOSE, LEFT HANDHOSE, LEFT HAND
-
2009401-13102 CLIPCLIP
-
2103111-0625A SCREWSCREW
-
2244612-13600 CUSHIONCUSHION
-
2313680-48G01 HOSEHOSE
-
2413683-48G21 HOSEHOSE
-
2513683-48G31 HOSEHOSE
-
2613685-04F10 NIPPLENIPPLE
-
2709401-06101 CLIPCLIP
-
2809401-10410 CLIPCLIP
-
2909401-09403 CLIPCLIP
