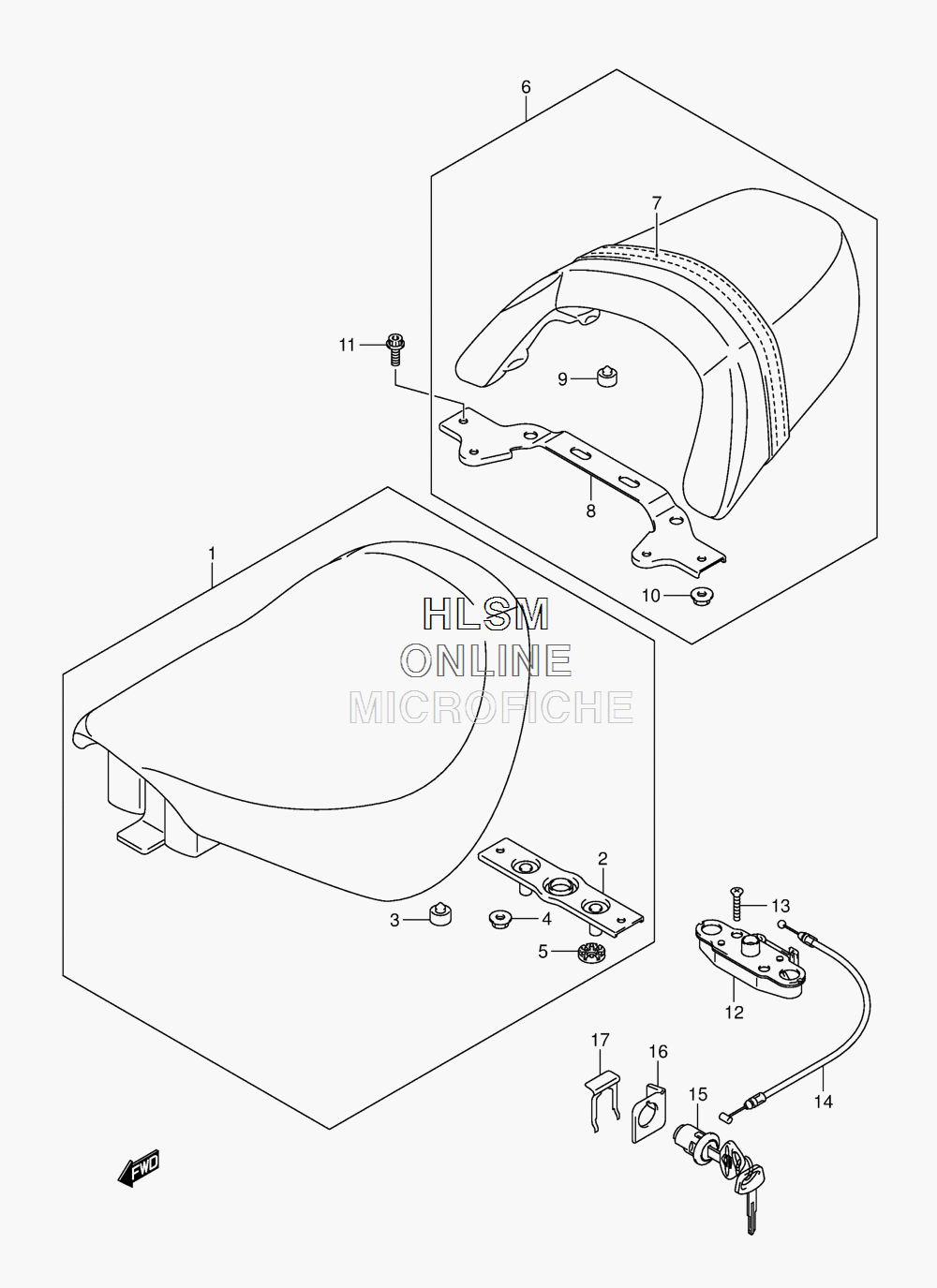

SEAT для Suzuki VZR1800BZ L4 BOULEVARD M109R BLACK EDITION - 2014 года выпуска
-
№АртикулНазвание
-
145100-48G01-48H SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245290-42F02 STRIKER, SEAT LOCKSTRIKER, SEAT LOCK
-
245290-42F02 STRIKER, SEAT LOCKSTRIKER, SEAT LOCK
-
309321-10011 CUSHIONCUSHION
-
408319-3106A NUTNUT
-
545213-31300 CUSHIONCUSHION
-
645300-48G00-48H SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
745180-48G00 BAND ASSYBAND ASSY
-
845315-48G00 BRACKET, BANDBRACKET, BAND
-
909321-10011 CUSHIONCUSHION
-
1008319-3106A NUTNUT
-
1107120-0616A BOLTBOLT
-
1245220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1302122-0630A SCREWSCREW
-
1445280-48G00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1595700-14F00 LOCK SET, SEATLOCK SET, SEAT
-
1645288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1745289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
