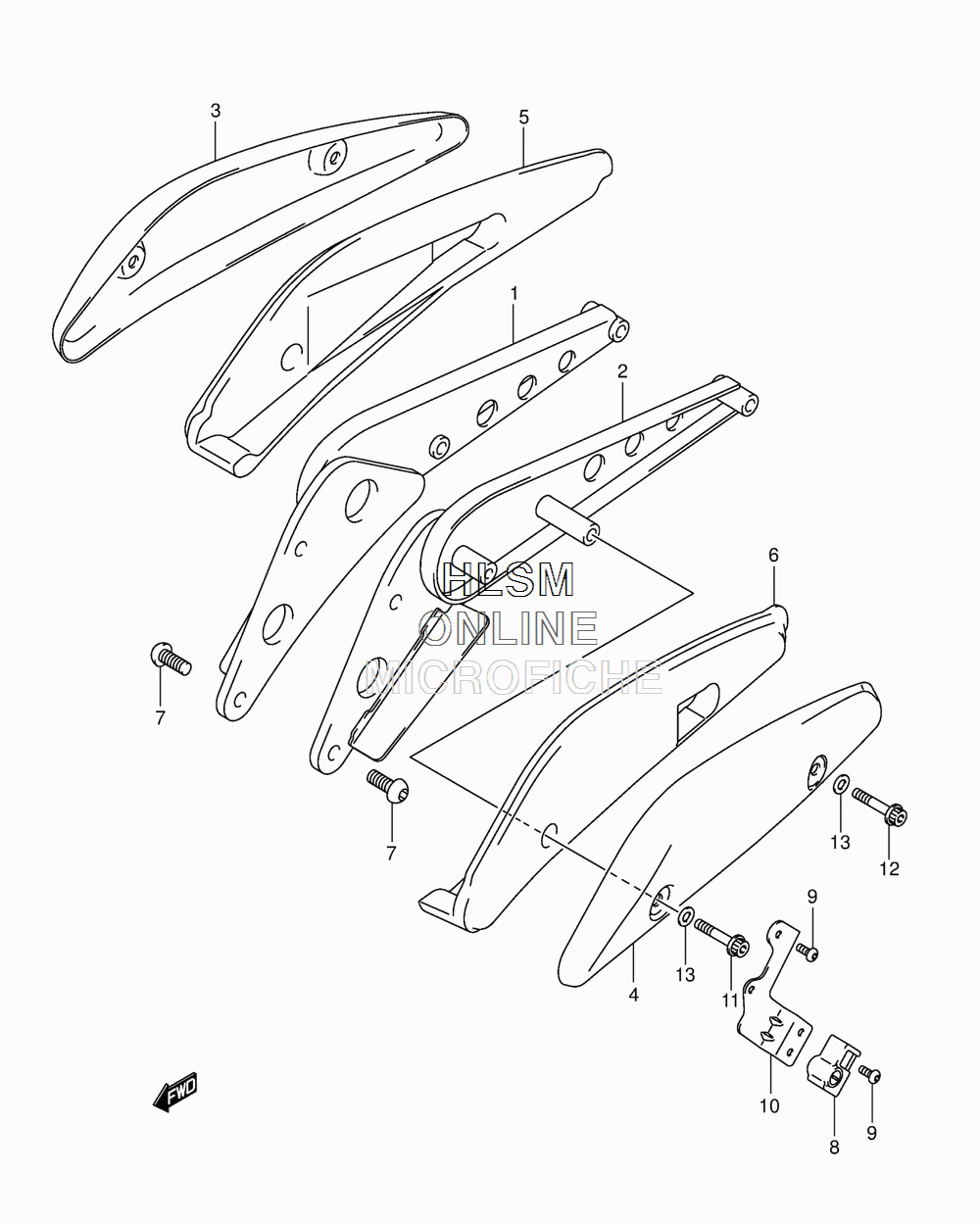

FRAME HANDLE GRIP для Suzuki VZR1800BZ L4 BOULEVARD M109R BLACK EDITION - 2014 года выпуска
-
№АртикулНазвание
-
141610-48G10 GRIP, FRAME HANDLE RIGHT HANDGRIP, FRAME HANDLE RIGHT HAND
-
241620-48G10 GRIP, FRAME HANDLE LEFT HANDGRIP, FRAME HANDLE LEFT HAND
-
341630-48G20 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
441640-48G20 PLATE, LEFT HANDPLATE, LEFT HAND
-
541615-48G10 RUBBER, RIGHT HANDRUBBER, RIGHT HAND
-
641625-48G10 RUBBER, LEFT HANDRUBBER, LEFT HAND
-
709139-10003 BOLT (10X25)BOLT (10X25)
-
895700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
909139-06089 SCREW (6X14)SCREW (6X14)
-
1095710-48G00 BRACKET, HELMET LOCKBRACKET, HELMET LOCK
-
1109106-08182 BOLT (8X70)BOLT (8X70)
-
1209106-08183 BOLT (8X50)BOLT (8X50)
-
1308322-0108A WASHERWASHER
