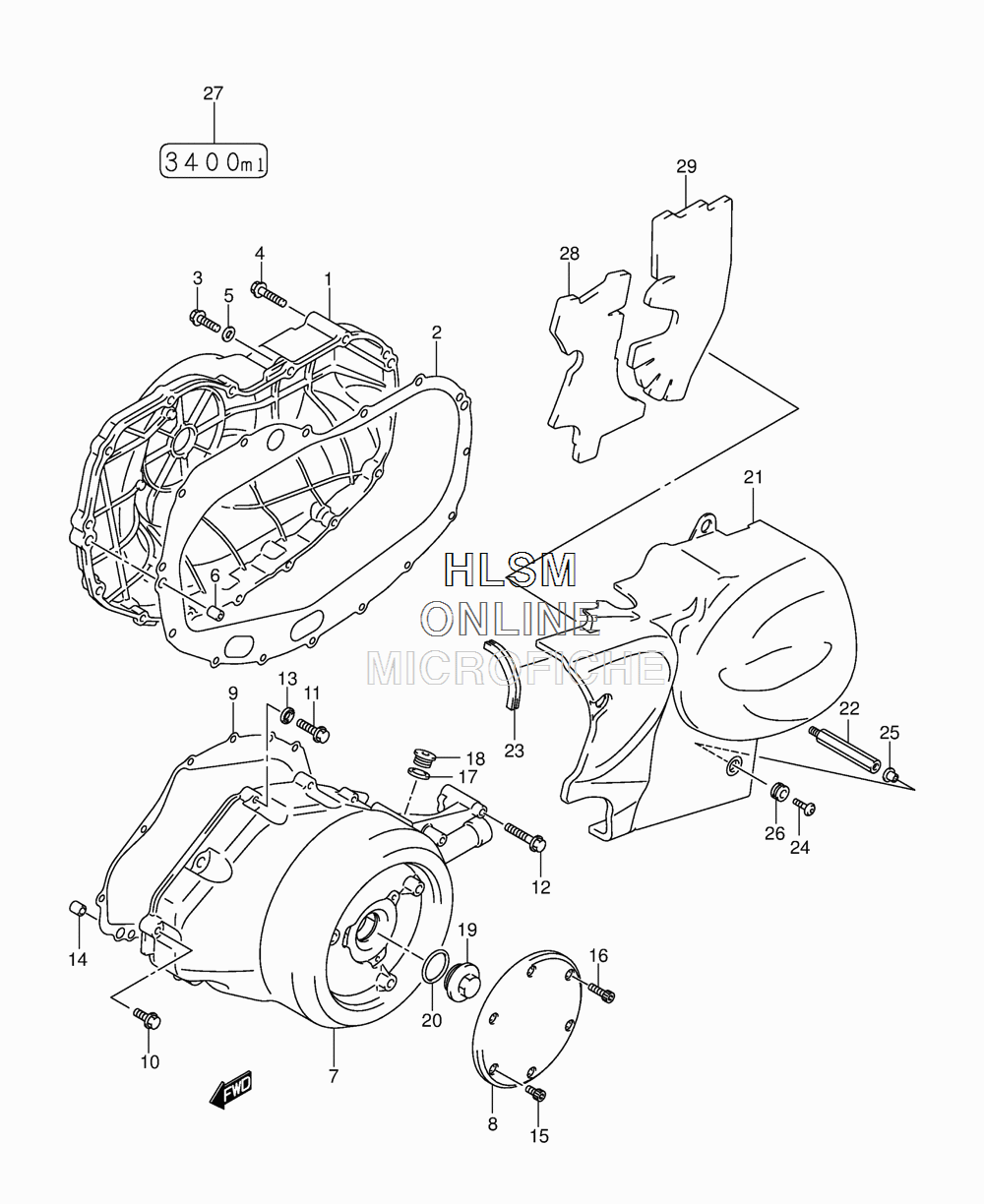

CRANKCASE COVER для Suzuki VZR1800BZ L4 BOULEVARD M109R BLACK EDITION - 2014 года выпуска
-
№АртикулНазвание
-
111341-48G10 COVER, CLUTCHCOVER, CLUTCH
-
211482-48G00 GASKETGASKET
-
309103-06213 BOLT (6X30)BOLT (6X30)
-
409103-06261 BOLT (6X60)BOLT (6X60)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
604211-09189 PINPIN
-
711351-48G10 COVER, MAGNETOCOVER, MAGNETO
-
811352-48G00 CAPCAP
-
911483-48G00 GASKETGASKET
-
1009103-06213 BOLT (6X30)BOLT (6X30)
-
1109103-06238 BOLT (6X50)BOLT (6X50)
-
1209103-06225 BOLT (6X70)BOLT (6X70)
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1404211-09149 PIN 9X14PIN 9X14
-
1509106-06068 BOLT (6X10)BOLT (6X10)
-
1609106-06123 BOLT (6X20)BOLT (6X20)
-
1709168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
1809248-16012 PLUG,16X8PLUG,16X8
-
1909259-30005 CAPCAP
-
2009280-26006 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
-
2111361-48G30 COVER, SECONDARY DRIVECOVER, SECONDARY DRIVE
-
2211372-48G00 BOLTBOLT
-
2309139-06028 SCREW (6X20)SCREW (6X20)
-
2409169-06062 WASHERWASHER
-
2509320-09501 CUSHIONCUSHION
-
2668322-48G00 NOTE, ENGINE OILNOTE, ENGINE OIL
-
2711353-48G00 DAMPER, MAGNETO COVER CAPDAMPER, MAGNETO COVER CAP
-
2811363-48G20 DAMPER, SEC DRIVE COVERDAMPER, SEC DRIVE COVER
-
2911364-48G00 DAMPER, SEC DRIVE COVERDAMPER, SEC DRIVE COVER
