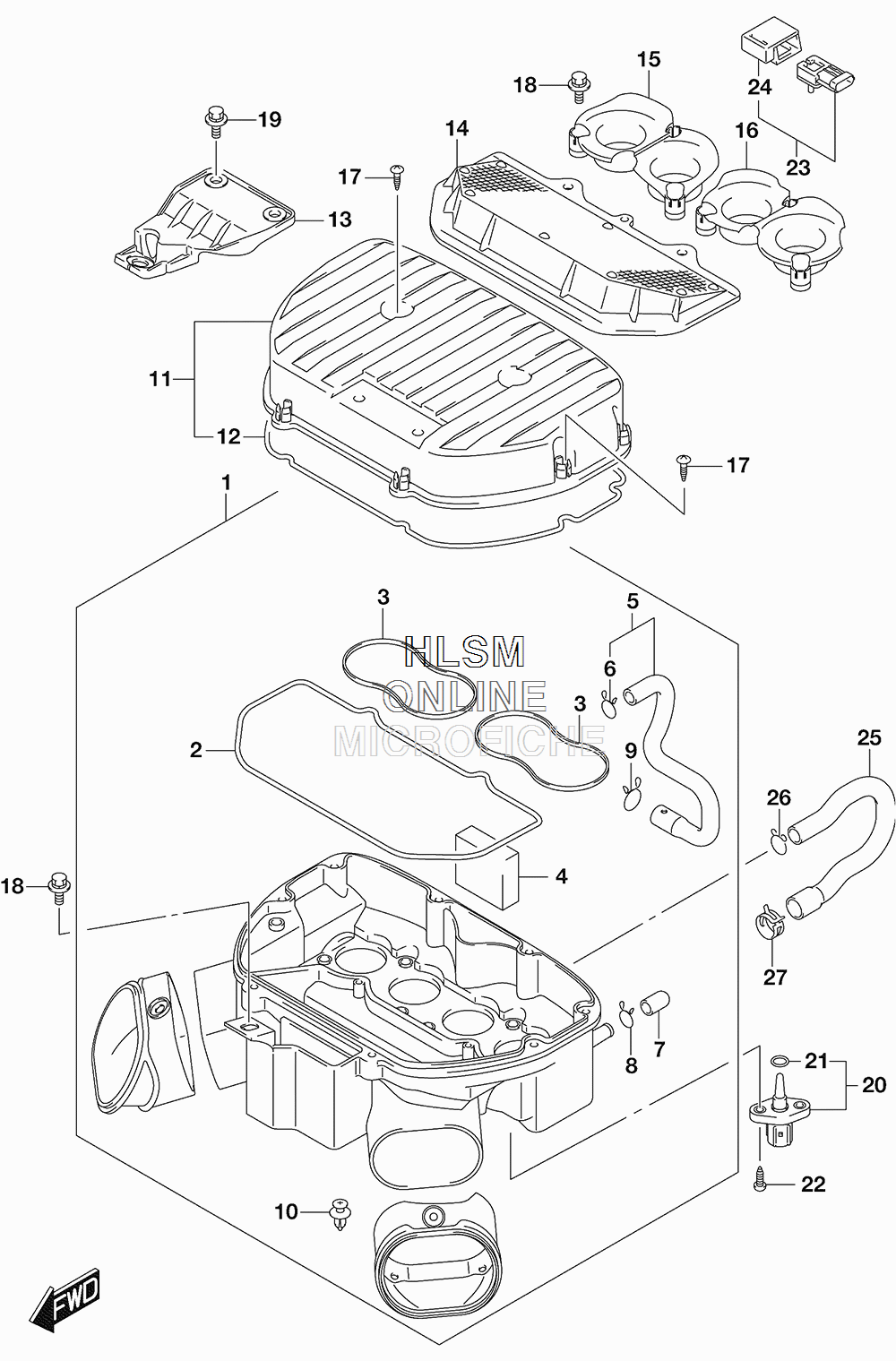

AIR CLEANER для Suzuki GSX-R750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
113720-14J00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213756-14J00 ...GASKET, CASE...GASKET, CASE
-
313757-14J00 ...GASKET, CASE...GASKET, CASE
-
413788-14J00 ...FILTER BREATHER...FILTER BREATHER
-
513850-14J00 ...TUBE, BREATHER...TUBE, BREATHER
-
609401-15101 ......CLIP......CLIP
-
713878-10G00 ...PLUG...PLUG
-
809401-14301 ...CLIP...CLIP
-
909401-17201 ...CLIP...CLIP
-
1009409-07305-5PK ...CLIP (BLACK)...CLIP (BLACK)
-
1113740-14J00 CAP,AIR CLEANERCAP,AIR CLEANER
-
1213746-14J00 ...GASKET,CAP...GASKET,CAP
-
1313760-14J00 HOLDER, AIR CLEANERHOLDER, AIR CLEANER
-
1413780-14J00 FILTER ASSYFILTER ASSY
-
1513881-15J00 FUNNEL, OUTLET RFUNNEL, OUTLET R
-
1613882-15J00 FUNNEL, OUTLET LFUNNEL, OUTLET L
-
1703541-0520A SCREWSCREW
-
1813831-47H00 BOLT, AIR CLEANER CASEBOLT, AIR CLEANER CASE
-
1909111-06089 BOLT (6X16)BOLT (6X16)
-
2013650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2113655-14G10 ...O RING...O RING
-
2203511-0516A SCREWSCREW
-
2315630-29G10 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2415625-29G00 ...COVER...COVER
-
2513697-14J00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2609401-15101 CLIPCLIP
-
2709401-17401 CLIPCLIP
