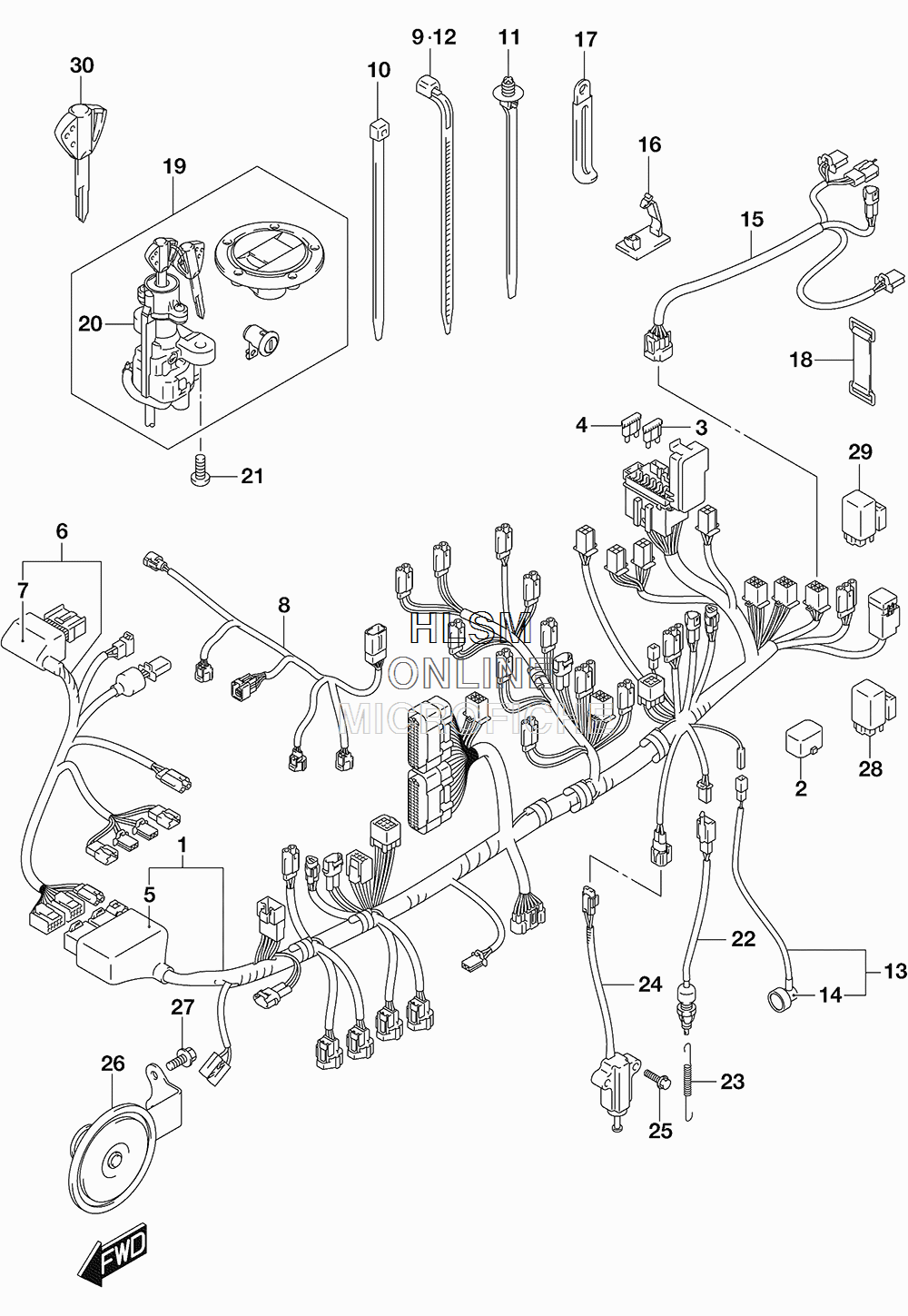

WIRING HARNESS (CAN) для Suzuki GSX-R750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
136610-14JC0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
236654-06J00 ...CAP, TS...CAP, TS
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409481-15501 ...FUSE (15A)...FUSE (15A)
-
536618-18G00 ...COVER, CONNECTOR...COVER, CONNECTOR
-
636620-14J10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
736618-47H00 ...COVER, CONNECTOR...COVER, CONNECTOR
-
836630-14J10 HARNESS, WIRING NO.3HARNESS, WIRING NO.3
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1109407-17403 CLAMP (L:154)CLAMP (L:154)
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1336851-14J00 WIRE, OIL PRESSURE LEADWIRE, OIL PRESSURE LEAD
-
1436618-43410 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
1536859-14J00 WIRE, REAR COMBINATION LEADWIRE, REAR COMBINATION LEAD
-
1609403-04310 CLAMPCLAMP
-
1709404-06429 CLAMP (L:45)CLAMP (L:45)
-
1809462-00033 BANDBAND
-
1937101-40821 LOCK SETLOCK SET
-
2037100-41G11 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2109139-08016 BOLT (8X20)BOLT (8X20)
-
2237740-14J00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2309443-06087 SPRINGSPRING
-
2437840-18J00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2501550-0620A BOLTBOLT
-
2638500-14J00 HORN ASSYHORN ASSY
-
2701550-0616B BOLTBOLT
-
2838740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2938740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3037146-41G00 KEY, BLANK (OPT)KEY, BLANK (OPT)
