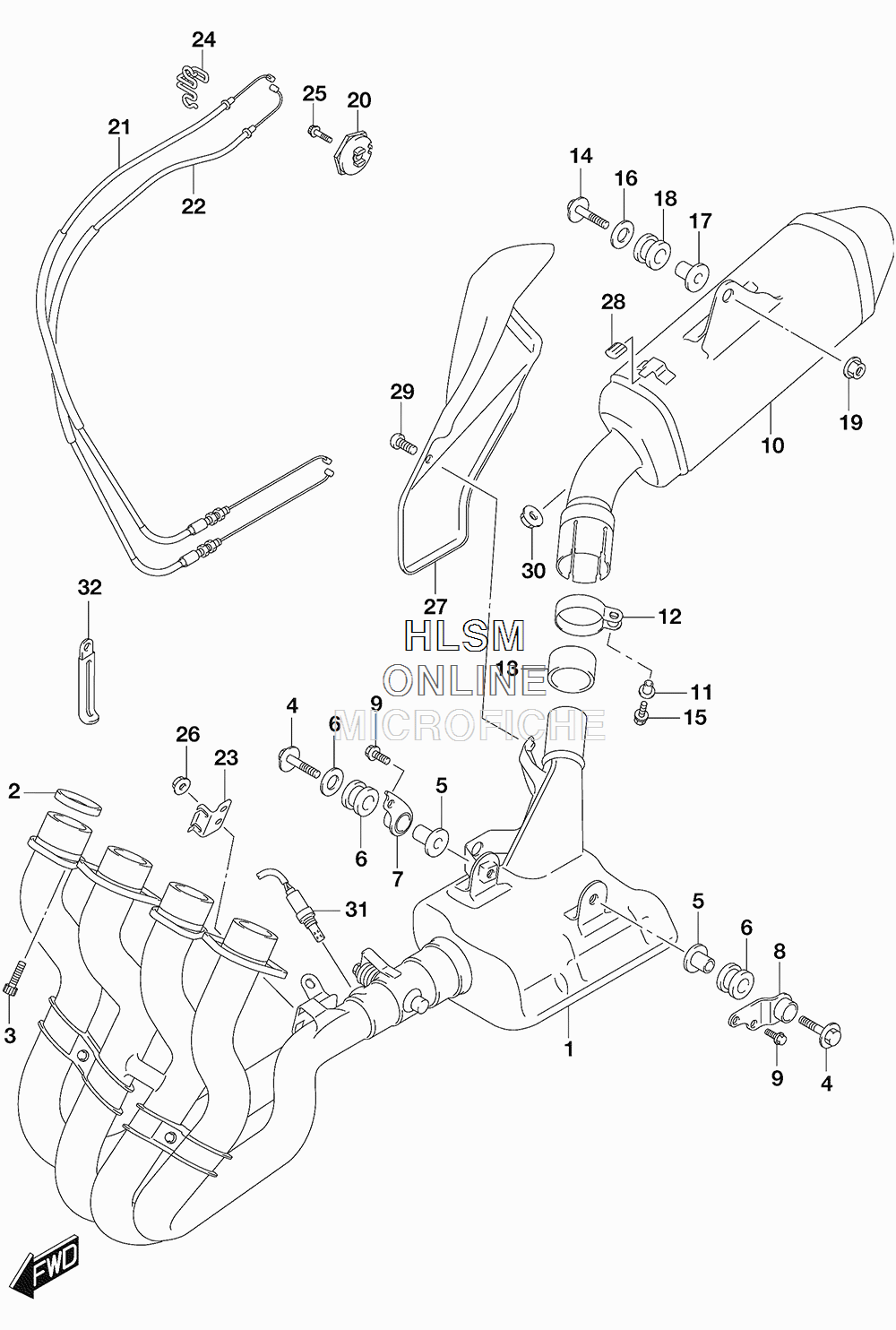

MUFFLER для Suzuki GSX-R750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
114100-15J00 EXHAUSTEXHAUST
-
214181-46E00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
309106-08165 BOLT (8X25)BOLT (8X25)
-
409118-08152-A05 BOLT (8X45)BOLT (8X45)
-
509180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
609320-12077 CUSHIONCUSHION
-
714770-14J00 BRACKET, CHAMBER SPRT,RBRACKET, CHAMBER SPRT,R
-
814773-14J00 BRACKET, CHAMBER SPRT,LBRACKET, CHAMBER SPRT,L
-
901550-0816A BOLTBOLT
-
1014310-15J00-H01 BODY, MUFFLERBODY, MUFFLER
-
1114458-14J00 SPACER, MUFFLER CLAMPSPACER, MUFFLER CLAMP
-
1214459-21H40 CLAMP, MUFFLER CONNECTORCLAMP, MUFFLER CONNECTOR
-
1314771-42F10 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
1409103-08358 BOLT (8X45)BOLT (8X45)
-
1509103-08392 BOLT (8X40)BOLT (8X40)
-
1609160-08142 WASHER (8.5X28X1.5)WASHER (8.5X28X1.5)
-
1709180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1809320-12048 CUSHIONCUSHION
-
1908361-2508A NUTNUT
-
2011269-18G01 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
2111276-14J00 CABLE, EXH VALVE NO.1CABLE, EXH VALVE NO.1
-
2211277-14J00 CABLE, EXH VALVE NO.2CABLE, EXH VALVE NO.2
-
2314250-21H00 BRACKET, EXH VALVE CABLEBRACKET, EXH VALVE CABLE
-
2414252-14J00 GUIDE, EXH VALVE CABLEGUIDE, EXH VALVE CABLE
-
2501547-0516A BOLTBOLT
-
2608316-1006A NUTNUT
-
2714780-14J00 COVER, MUF FRCOVER, MUF FR
-
2814795-10FA0 GROMMETGROMMET
-
2909139-06172 SCREW (6X10)SCREW (6X10)
-
3009320-08066 CUSHIONCUSHION
-
3118213-23H01 SENSOR,OXYGENSENSOR,OXYGEN
-
3209404-06429 CLAMP (L:45)CLAMP (L:45)
