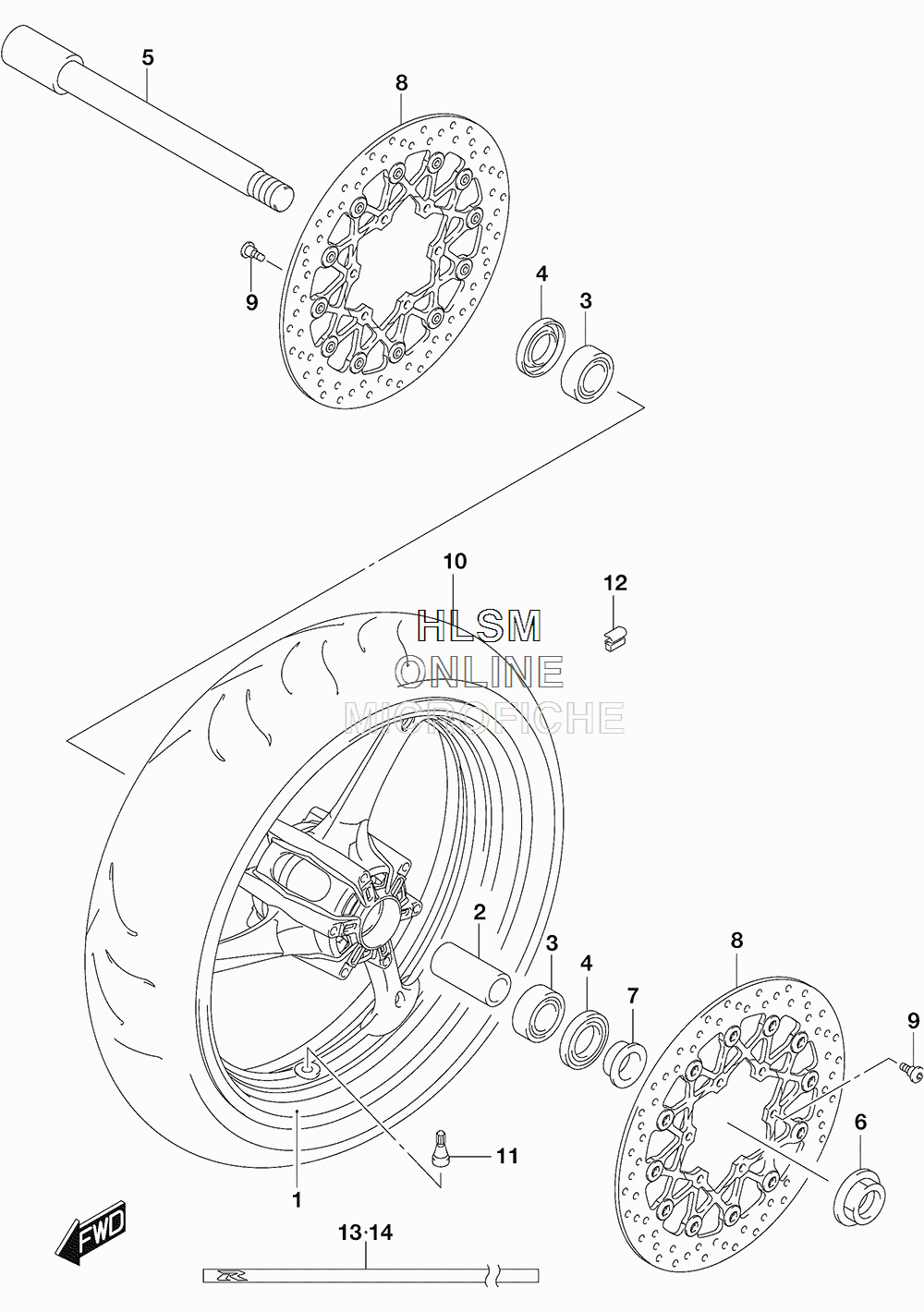

WHEEL - FRONT для Suzuki GSX-R750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
154111-14J00-019 WHEEL, FRONT (17M/CXMT3.50)WHEEL, FRONT (17M/CXMT3.50)
-
254731-14J00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-22035 BEARING (22X44X12)BEARING (22X44X12)
-
409283-28016 OIL SEAL (28X44X7.5)OIL SEAL (28X44X7.5)
-
554711-14J00 AXLE, FRONTAXLE, FRONT
-
662994-47H00 NUT, AXLENUT, AXLE
-
754751-14J00 SPACER, FRONT AXLE (RH)SPACER, FRONT AXLE (RH)
-
859210-37H01 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909106-06124 BOLT (6X21)BOLT (6X21)
-
1055110-15J00 TIRE, FRONT (120/70ZR17M/C, 58W)TIRE, FRONT (120/70ZR17M/C, 58W)
-
1143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1255411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
1255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
1255413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
-
1368251-47H00-A29 TAPE, RIGHT HAND (BLACK/ORANGE) (FOR YSF)TAPE, RIGHT HAND (BLACK/ORANGE) (FOR YSF)
-
1468252-47H00-A29 TAPE, LEFT HAND (BLACK/ORANGE) (FOR YSF)TAPE, LEFT HAND (BLACK/ORANGE) (FOR YSF)
