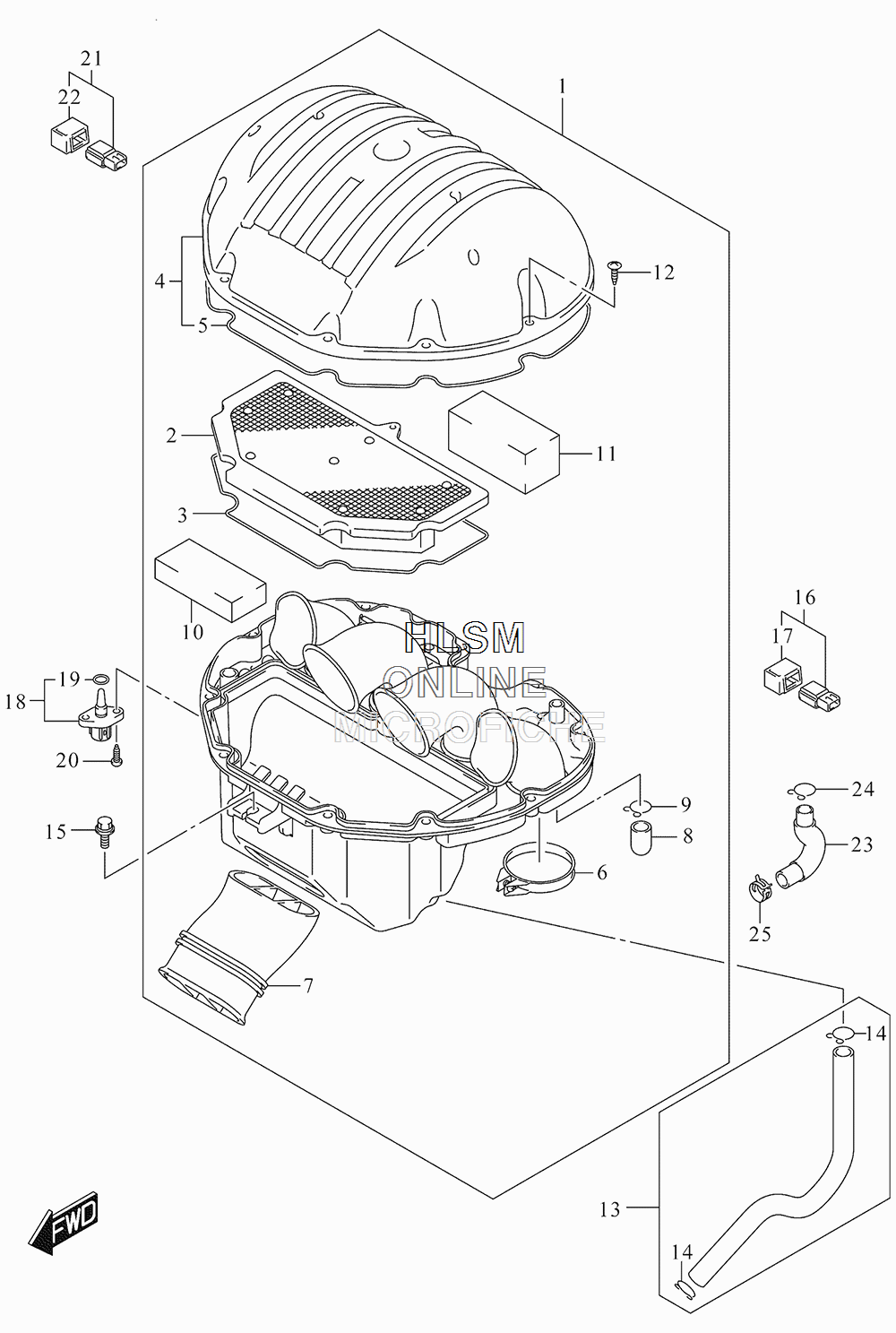

AIR CLEANER для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
113700-08J02 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-44G00 ...FILTER ASSY...FILTER ASSY
-
313756-44G00 ...GASKET, CASE...GASKET, CASE
-
413740-08J00 ...CAP...CAP
-
513746-08J00 ......GASKET, CAP......GASKET, CAP
-
613170-25D01 ...CLAMP...CLAMP
-
713891-08J00 ...TUBE, INLET...TUBE, INLET
-
813859-41B10 ...PLUG...PLUG
-
909401-14101 ...CLIP...CLIP
-
1013788-08J00 ...FILTER, BREATHER...FILTER, BREATHER
-
1113789-08J00 ...FILTER, BREATHER...FILTER, BREATHER
-
1203541-0520A ...SCREW...SCREW
-
1313850-08J00 TUBE, BREATHERTUBE, BREATHER
-
1409401-15101 ...CLIP...CLIP
-
1509116-06130 BOLT (6X16)BOLT (6X16)
-
1615630-29G10 SENSOR, BOOSTSENSOR, BOOST
-
1715625-29G00 ...COVER...COVER
-
1813650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1913655-14G10 ...O RING...O RING
-
2003511-0516A SCREWSCREW
-
2115630-29G10 SENSOR, BOOSTSENSOR, BOOST
-
2215625-29G00 ...COVER...COVER
-
2313697-08J00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2409401-15101 CLIPCLIP
-
2509401-16407 CLIPCLIP
