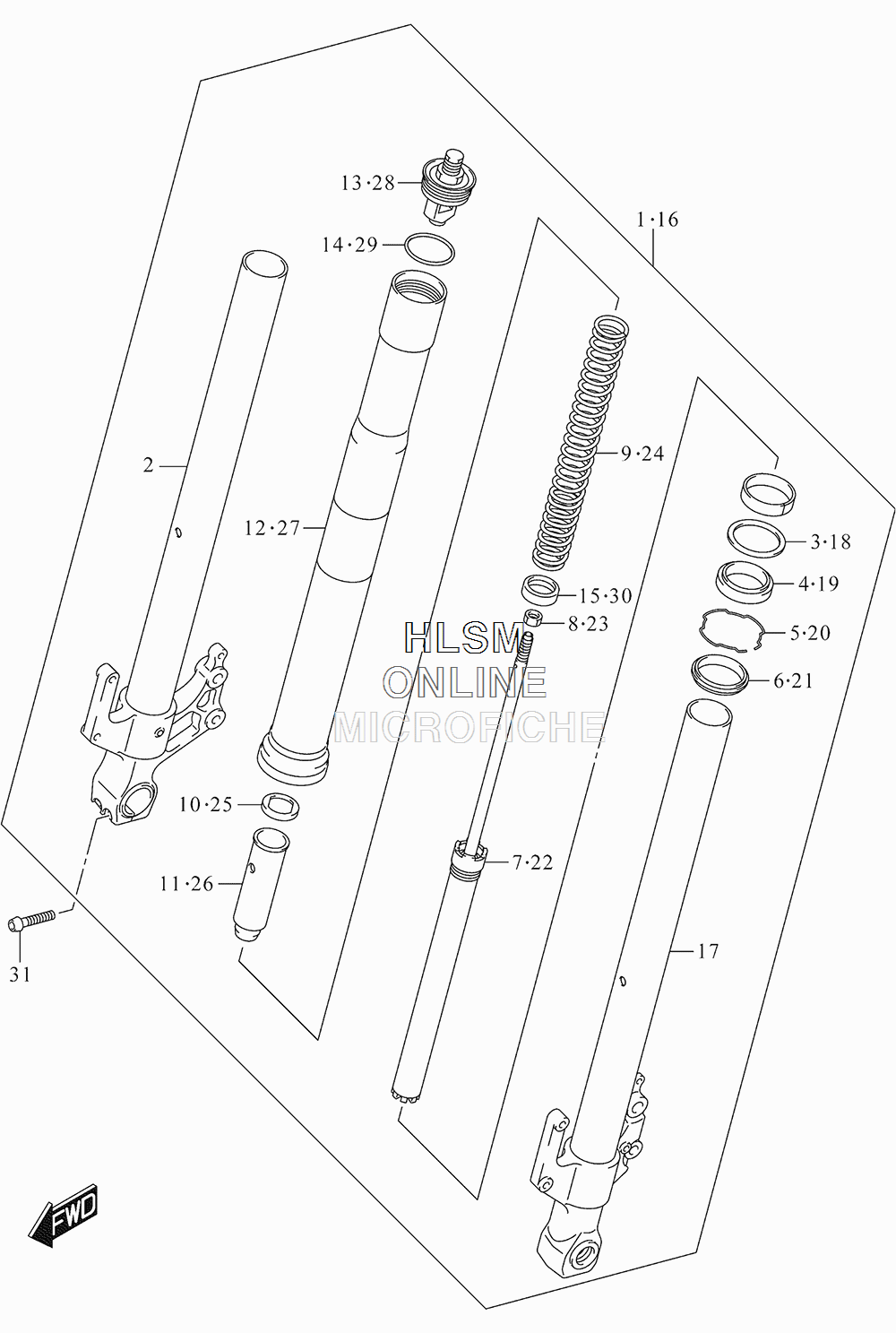

SUSPENSION - FRONT FORK для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
151103-08J00 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-08J00 ...TUBE, INNER RIGHT HAND...TUBE, INNER RIGHT HAND
-
351158-05A00 ...WASHER...WASHER
-
451153-10G50 ...OIL SEAL...OIL SEAL
-
551156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
651173-14F00 ...SEAL, DUST...SEAL, DUST
-
751146-08J00 ...CYLINDER...CYLINDER
-
851352-13A60 ...NUT, ROD...NUT, ROD
-
951171-08J00 ...SPRING...SPRING
-
1051158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
1151176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
1251130-08J00 ...TUBE, OUTER...TUBE, OUTER
-
1351351-08J00 ...CAP...CAP
-
1451117-39G20 ...O RING...O RING
-
1551178-08J00 ...SEAT,SPRING...SEAT,SPRING
-
1651104-08J00 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
1751120-08J00 ...TUBE, INNER LEFT HAND...TUBE, INNER LEFT HAND
-
1851158-05A00 ...WASHER...WASHER
-
1951153-10G50 ...OIL SEAL...OIL SEAL
-
2051156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
2151173-14F00 ...SEAL, DUST...SEAL, DUST
-
2251146-08J00 ...CYLINDER...CYLINDER
-
2351352-13A60 ...NUT, ROD...NUT, ROD
-
2451171-08J00 ...SPRING...SPRING
-
2551158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
2651176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
2751130-08J00 ...TUBE, OUTER...TUBE, OUTER
-
2851351-08J00 ...CAP...CAP
-
2951117-39G20 ...O RING...O RING
-
3051178-08J00 ...SEAT,SPRING...SEAT,SPRING
-
3151166-40H20 BOLTBOLT
