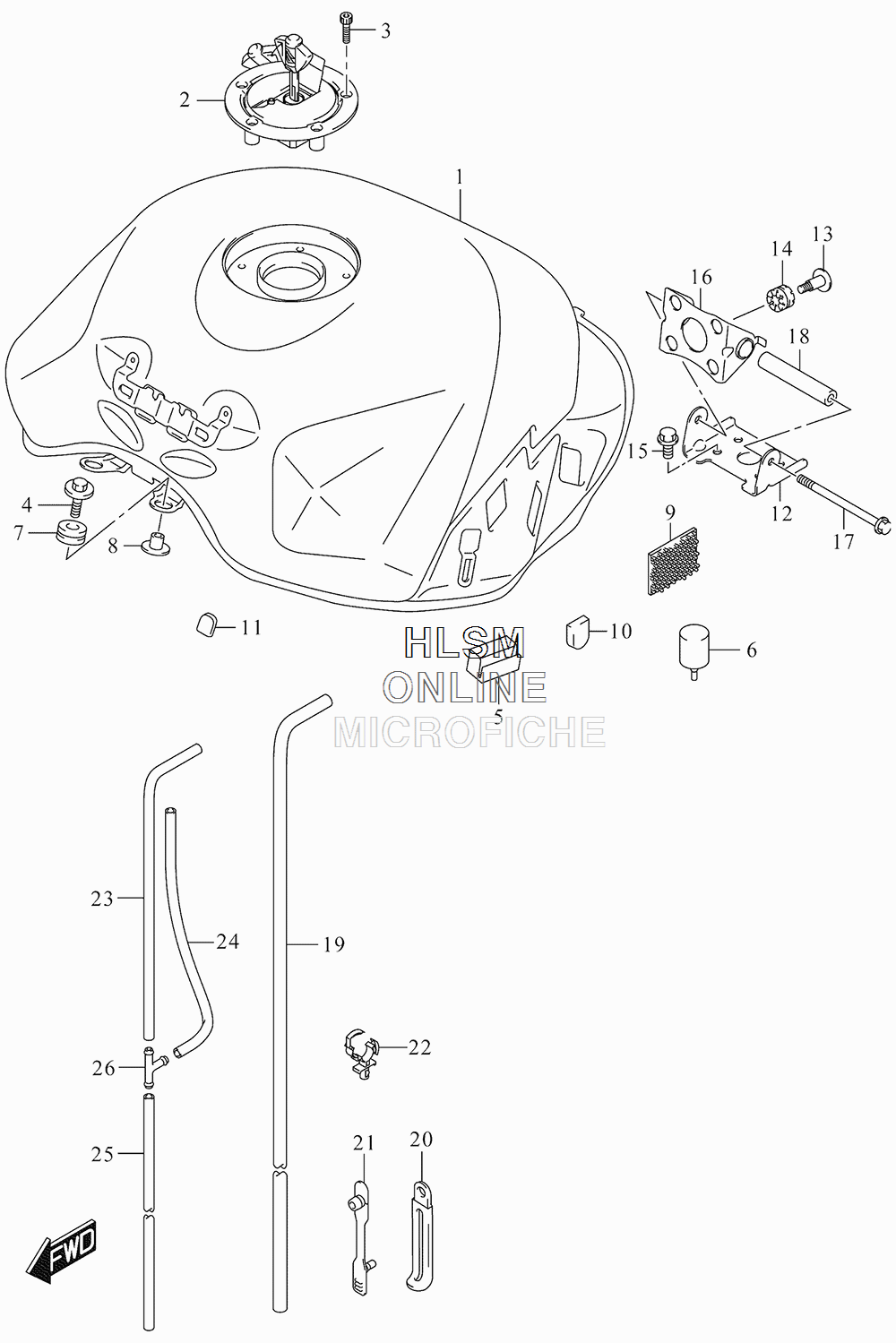

FUEL TANK для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
144100-08J01-YKV TANK ASSY, FUEL (BLACK) (FOR YKV)TANK ASSY, FUEL (BLACK) (FOR YKV)
-
144100-08J01-YWW TANK ASSY, FUEL (WHITE) (FOR AJX)TANK ASSY, FUEL (WHITE) (FOR AJX)
-
244200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
309106-05017 BOLT (5X20)BOLT (5X20)
-
401560-0625A BOLTBOLT
-
544541-08J00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
644542-41G00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
744511-16G00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
844512-16G00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
944572-13G00 FASTENERFASTENER
-
1044542-08J00 CUSHION, TANK COVER SIDECUSHION, TANK COVER SIDE
-
1144543-08J00 CUSHION, TANK COVER CENTERCUSHION, TANK COVER CENTER
-
1244550-08J00 BRACKET, FUEL TANK REAR NO.2BRACKET, FUEL TANK REAR NO.2
-
1309139-06191 SCREW (6X22)SCREW (6X22)
-
1409320-08071 CUSHIONCUSHION
-
1501550-0612A BOLTBOLT
-
1644530-41G01 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1707120-0695A BOLTBOLT
-
1844561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1944423-08J01 HOSE, FUEL TANK DRAINHOSE, FUEL TANK DRAIN
-
2009404-06433 CLAMP (L:80)CLAMP (L:80)
-
2109407-05406 CLAMP (L:118)CLAMP (L:118)
-
2209403-18307 CLAMPCLAMP
-
2344424-08J01 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2444424-15H10 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
2509352-50823-600 HOSE (5X8.2X600) (L:600->260)HOSE (5X8.2X600) (L:600->260)
-
2609367-06007 3 WAY3 WAY
