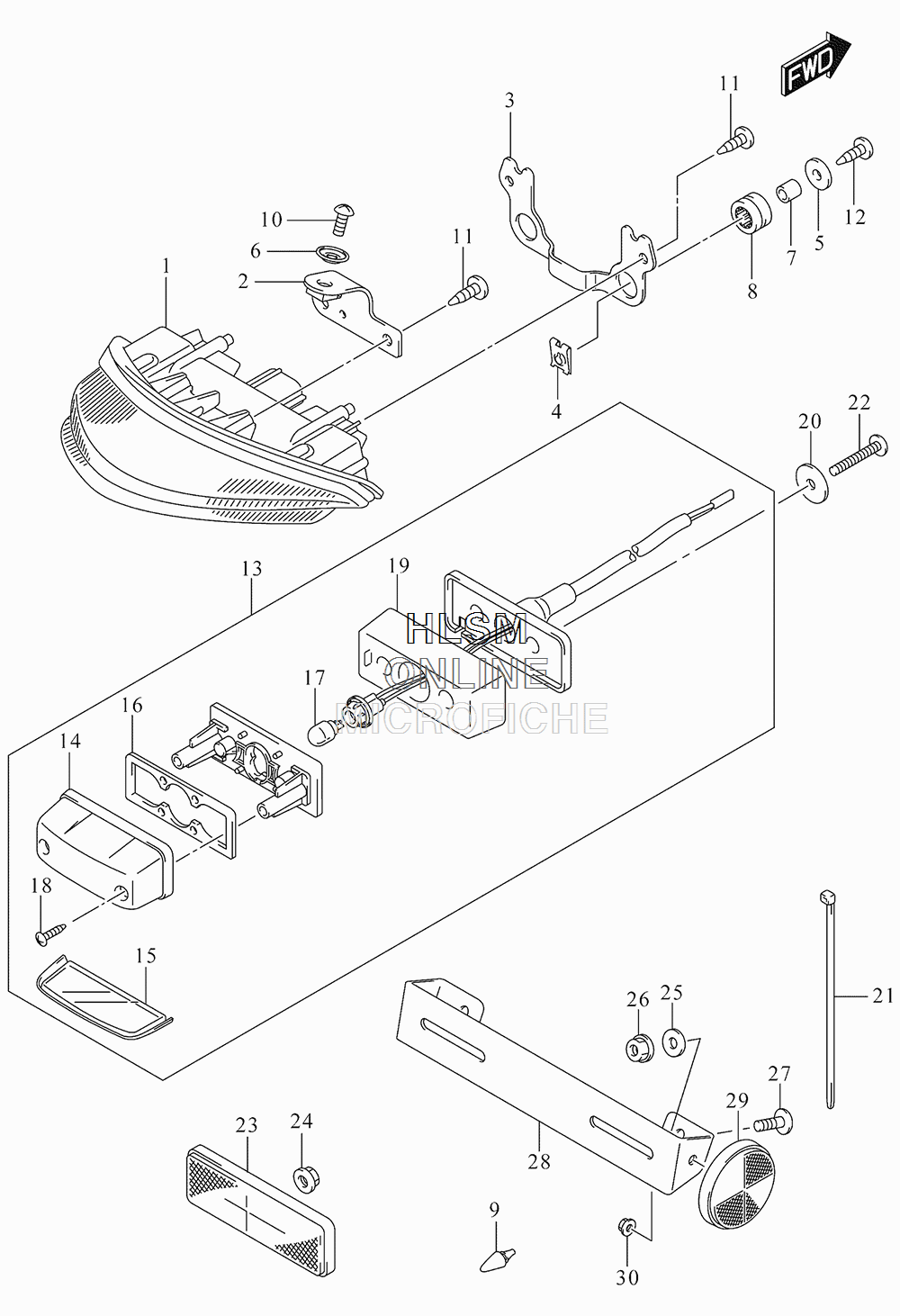

TAILLIGHT ASSY. для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
135710-21H30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235726-08J00 BRACKET, REAR COMBINATION LAMPBRACKET, REAR COMBINATION LAMP
-
335726-08J10 BRACKET, REAR COMBINATION LAMPBRACKET, REAR COMBINATION LAMP
-
409148-05047 NUTNUT
-
509160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
609169-06071 WASHERWASHER
-
709180-06285 SPACER (6.5X10X9)SPACER (6.5X10X9)
-
809320-09009 CUSHIONCUSHION
-
909321-06028 CUSHIONCUSHION
-
1002142-0612A SCREWSCREW
-
1103541-0516A SCREWSCREW
-
1203541-0520B SCREWSCREW
-
1335910-16G31 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1435917-16G00 ...COVER...COVER
-
1535912-16G01 ...LENS...LENS
-
1635913-16G00 ...GASKET...GASKET
-
1709471-12216 ...BULB (12V5W)...BULB (12V5W)
-
1803211-0416A ...SCREW...SCREW
-
1935978-16G30 ...SPACER...SPACER
-
2009160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
2109407-14407 CLAMP (L:145)CLAMP (L:145)
-
2203541-0540A SCREWSCREW
-
2335970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2408316-1005A NUTNUT
-
2509160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2608316-1006A NUTNUT
-
2702142-0616A SCREWSCREW
-
2835927-08J30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2935970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
3008316-1005A NUTNUT
