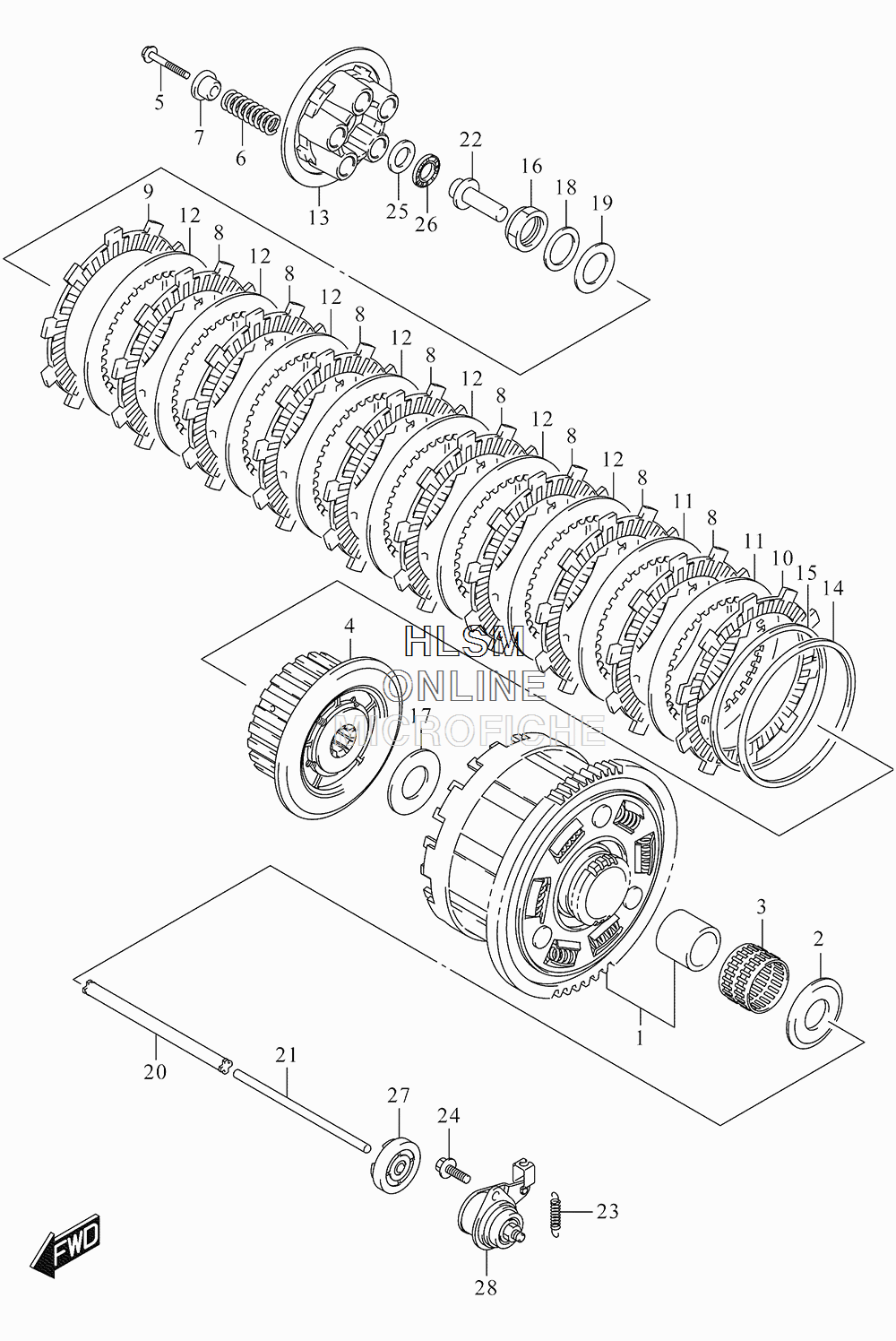

CLUTCH для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска

№

Артикул

Название
1

21200-35830 GEAR ASSY, PRIMARY DRIVEN (NT:78)

GEAR ASSY, PRIMARY DRIVEN (NT:78)

72 850 ₽
2

09160-25073 WASHER (25X54X2.4)

WASHER (25X54X2.4)

2 080 ₽
3

09263-35036 BEARING (35X40X29.8)

BEARING (35X40X29.8)

5 340 ₽
4

21410-35F20 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

19 190 ₽
5

21482-40F00 BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

530 ₽
6

21413-08J00 SPRING, CLUTCH

SPRING, CLUTCH

1 350 ₽
7

21414-29F00 WASHER, CLUTCH SPRING

WASHER, CLUTCH SPRING

1 090 ₽
8

21441-31EA0 PLATE, CLUTCH DRIVE NO.1 (T:3.0)

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

3 890 ₽
9

21441-31E60 PLATE, CLUTCH DRIVE NO.2 (T:3.0)

PLATE, CLUTCH DRIVE NO.2 (T:3.0)

4 140 ₽
10

21442-31E21 PLATE, CLUTCH DRIVE NO.3 (T:3.0)

PLATE, CLUTCH DRIVE NO.3 (T:3.0)

5 830 ₽
11

21451-31E00 PLATE, CLUTCH DRIVEN NO.1 (T:1.6)

PLATE, CLUTCH DRIVEN NO.1 (T:1.6)

1 910 ₽
12

21451-31E10 PLATE, CLUTCH DRIVEN NO.2 (T:2.0)

PLATE, CLUTCH DRIVEN NO.2 (T:2.0)

2 050 ₽
13

21462-35F00 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

9 110 ₽
14

21471-31E20 SEAT, WAVE WASHER

SEAT, WAVE WASHER

2 580 ₽
15

21472-39F00 WASHER, CLUTCH PLATE WAVE

WASHER, CLUTCH PLATE WAVE

2 590 ₽
16

09159-24010 NUT

NUT

2 310 ₽
17

09160-25056 WASHER (25X50X2.5)

WASHER (25X50X2.5)

2 030 ₽
18

09164-24008 WASHER

WASHER

660 ₽
19

09181-25223 SHIM (25X38X1)

SHIM (25X38X1)

540 ₽
20

23110-27A00 ROD, CLUTCH

ROD, CLUTCH

3 830 ₽
21

23111-35F00 ROD, CLUTCH PUSH LEFT HAND

ROD, CLUTCH PUSH LEFT HAND

2 420 ₽
22

23121-31E00 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

4 180 ₽
23

09443-09051 SPRING

SPRING

650 ₽
24

01550-0616A BOLT

BOLT

340 ₽
25

09160-15045 WASHER (15.5X28X1)

WASHER (15.5X28X1)

680 ₽
26

09263-15003 BEARING (15X28X2)

BEARING (15X28X2)

1 440 ₽
27

09283-06010 OIL SEAL (6X34X10.5)

OIL SEAL (6X34X10.5)

2 940 ₽
28

23200-35F01 SCREW ASSY, CLUTCH RELEASE

SCREW ASSY, CLUTCH RELEASE

12 000 ₽
