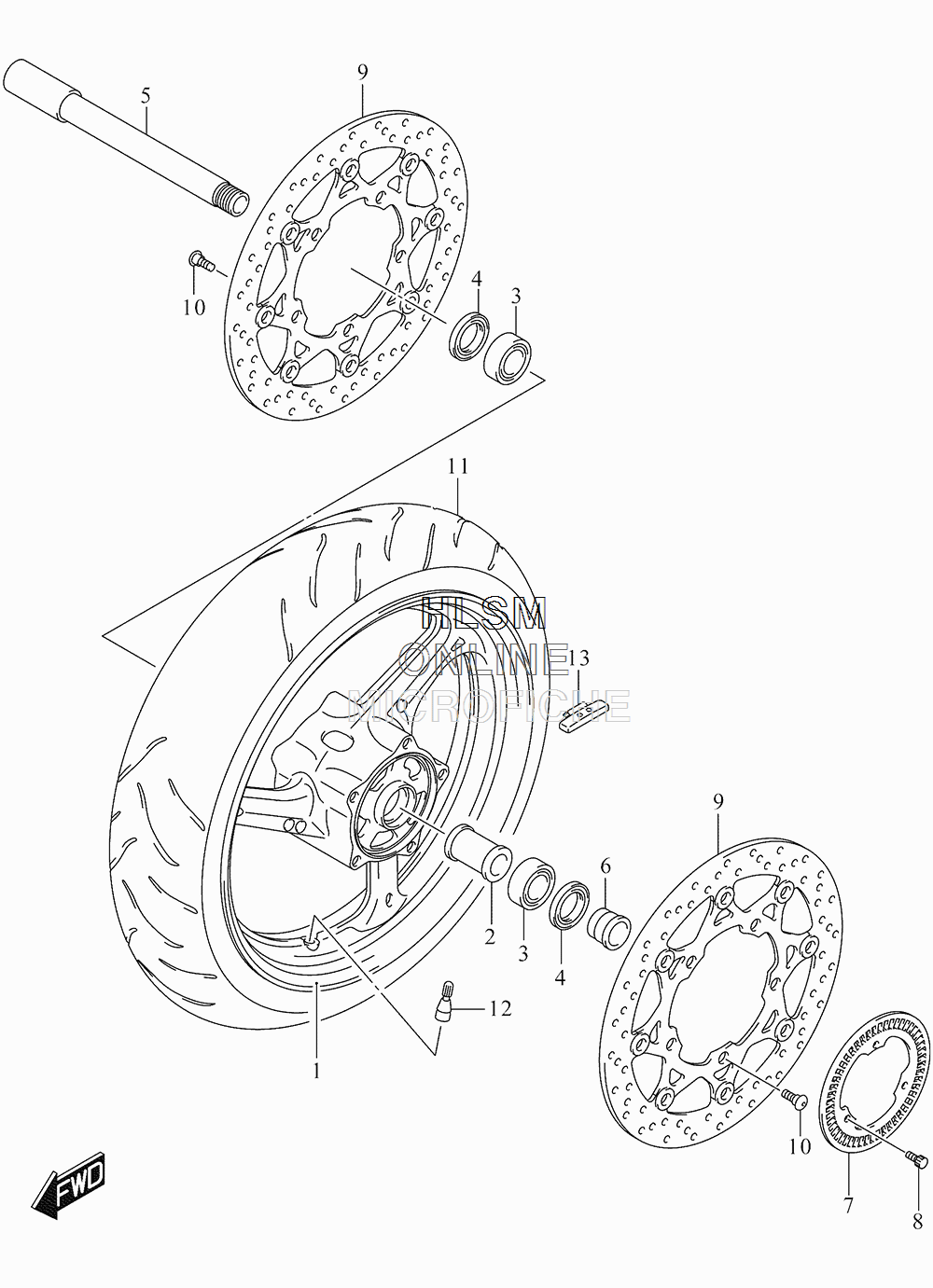

WHEEL - FRONT для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска
-
№АртикулНазвание
-
154111-44G10-019 WHEEL, FRONT (17M/CXMT3.50) (BLACK)WHEEL, FRONT (17M/CXMT3.50) (BLACK)
-
254731-44G00 SPACER, FRONT WHEEL BEARINGSPACER, FRONT WHEEL BEARING
-
309262-22035 BEARING (22X44X12)BEARING (22X44X12)
-
409283-28016 OIL SEAL (28X44X7.5)OIL SEAL (28X44X7.5)
-
554711-44G00 AXLE, FRONTAXLE, FRONT
-
654751-44G00 SPACER, FRONT AXLESPACER, FRONT AXLE
-
754162-27G00 RING, SPEED SENSOR FRONTRING, SPEED SENSOR FRONT
-
807130-0512A BOLTBOLT
-
959210-44G11 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1009106-08160 BOLT (8X21)BOLT (8X21)
-
1155110-08J00 TIRE, FRONT (120/70ZR17M/C 58W)TIRE, FRONT (120/70ZR17M/C 58W)
-
1243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1355411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
1355412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
1355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
