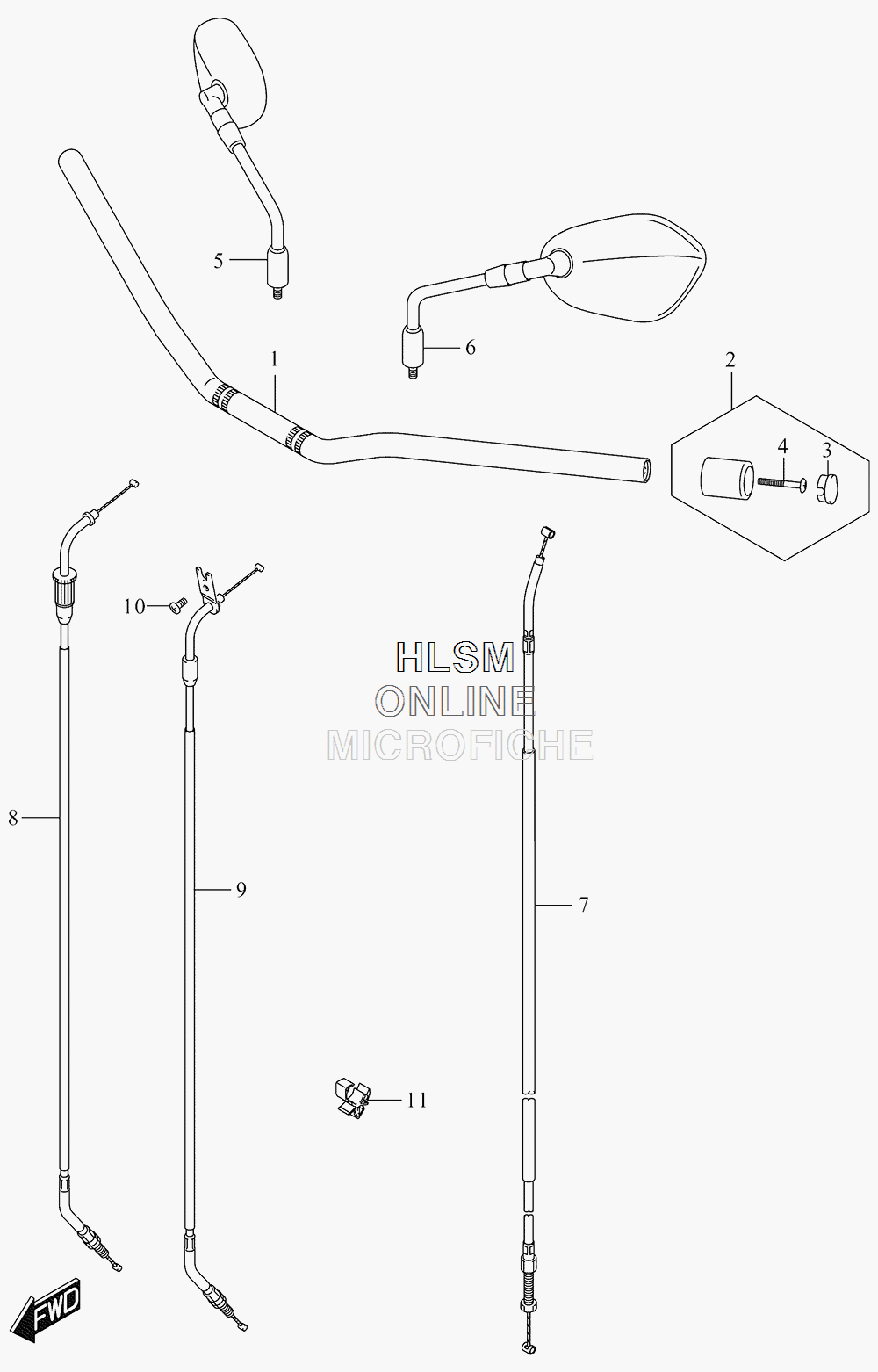

HANDLEBAR для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска
-
№АртикулНазвание
-
156110-08J10-YMC HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256200-33870 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
356279-33E00 ...CAP...CAP
-
402142-0640A ...SCREW...SCREW
-
556500-08J00 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
656600-08J00 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
758200-08J00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
858300-08J00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
958300-08J10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1009125-05042 SCREW (5X10)SCREW (5X10)
-
1109403-11321 CLAMPCLAMP
