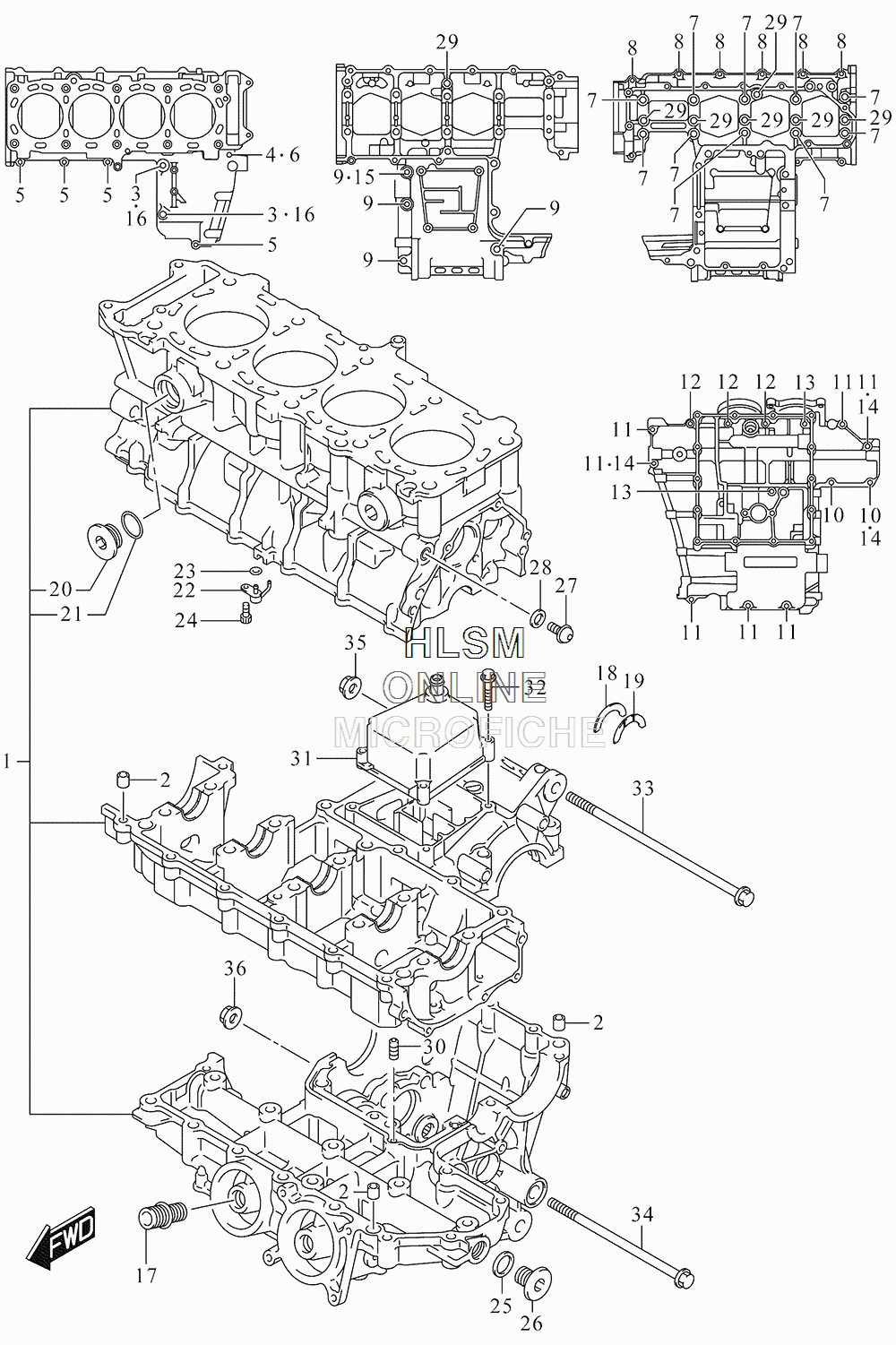

CRANKCASE для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска
-
№АртикулНазвание
-
111300-08810 CRANKCASE ASSYCRANKCASE ASSY
-
211319-33E50 ...PIN...PIN
-
309106-08139 ...BOLT (8X120)...BOLT (8X120)
-
409168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
501547-0640A ...BOLT...BOLT
-
601547-0680A ...BOLT...BOLT
-
709103-09012 ...BOLT (9X95)...BOLT (9X95)
-
801547-0640A ...BOLT...BOLT
-
907120-0865A ...BOLT...BOLT
-
1001547-0630A ...BOLT...BOLT
-
1101547-0640A ...BOLT...BOLT
-
1201547-0660A ...BOLT...BOLT
-
1301547-0670A ...BOLT...BOLT
-
1409168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
1509168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1609168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1716591-06B01 ...UNION, OIL FILTER STAND...UNION, OIL FILTER STAND
-
1812228-17E00-0D0 ...BEARING, THRUST RIGHT HAND (GREEN)...BEARING, THRUST RIGHT HAND (GREEN)
-
1912228-17E00-0A0 ...BEARING, THRUST LEFT HAND (RED)...BEARING, THRUST LEFT HAND (RED)
-
1912228-17E00-0B0 ...BEARING, THRUST LEFT HAND (BLACK)...BEARING, THRUST LEFT HAND (BLACK)
-
1912228-17E00-0C0 ...BEARING, THRUST LEFT HAND (BLUE)...BEARING, THRUST LEFT HAND (BLUE)
-
1912228-17E00-0D0 ...BEARING, THRUST LEFT HAND (GREEN)...BEARING, THRUST LEFT HAND (GREEN)
-
1912228-17E00-0E0 ...BEARING, THRUST LEFT HAND (YELLOW)...BEARING, THRUST LEFT HAND (YELLOW)
-
1912228-17E00-0F0 ...BEARING, THRUST LEFT HAND (WHITE)...BEARING, THRUST LEFT HAND (WHITE)
-
2011318-35F00 ...PLUG,WATER JACKET...PLUG,WATER JACKET
-
2109280-20002 ...O RING (D:3.1,ID:19.4)...O RING (D:3.1,ID:19.4)
-
2211390-35F00 JET, PISTON COOLINGJET, PISTON COOLING
-
2309280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2409106-06075 BOLT (6X12)BOLT (6X12)
-
2509168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2609248-16013 PLUGPLUG
-
2709248-10010 PLUG (10X10)PLUG (10X10)
-
2809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
2909280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
3009493-28012 JET, 140JET, 140
-
3111370-44G00 COVER, BREATHERCOVER, BREATHER
-
3201547-0635A BOLTBOLT
-
3309103-10458 BOLT (10X175)BOLT (10X175)
-
3409103-10137 BOLT (10X255)BOLT (10X255)
-
3509159-10115 NUTNUT
-
3609159-10123 NUTNUT
