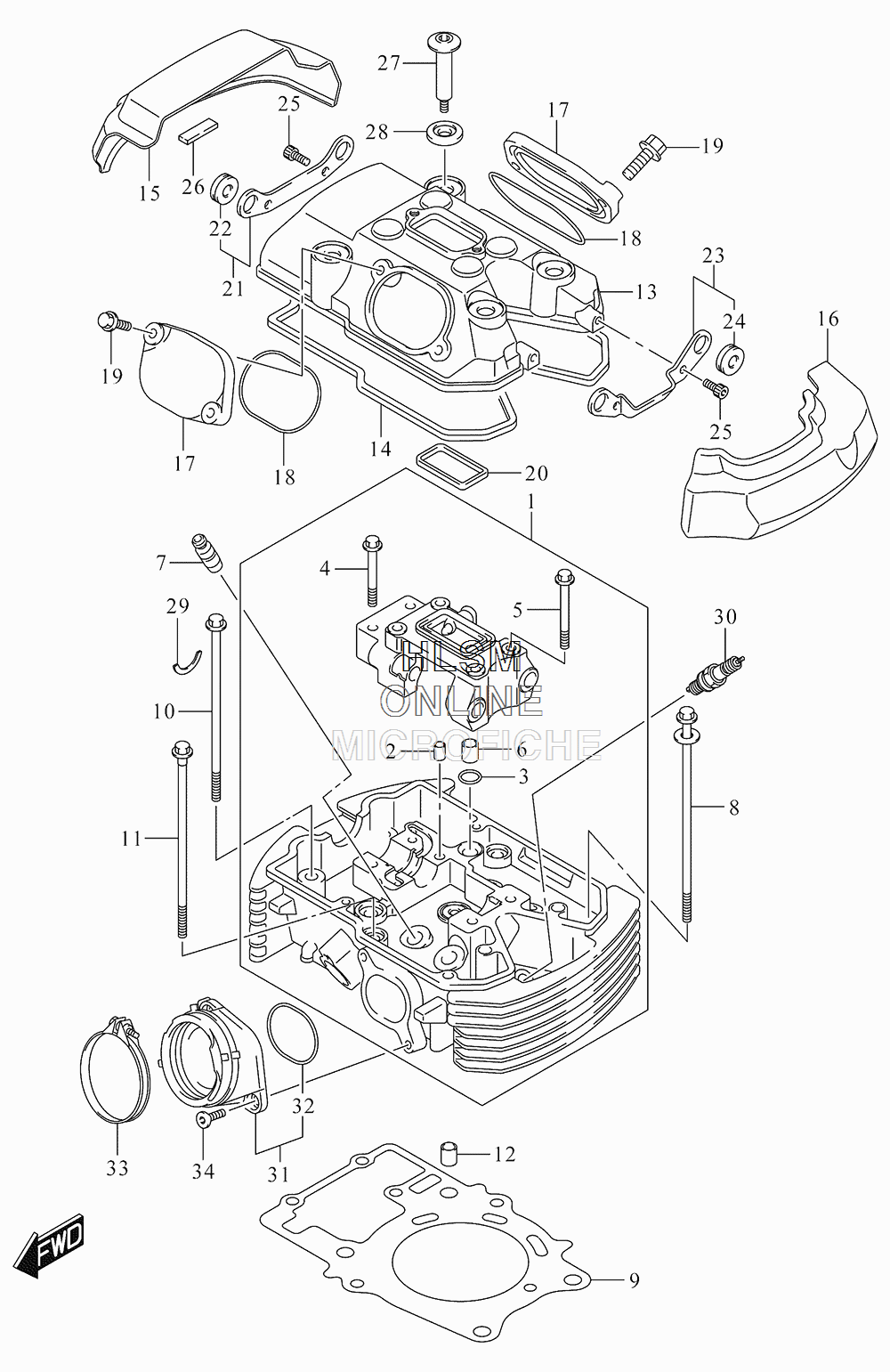

CYLINDER HEAD (REAR) для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
111103-40H00 HEAD ASSY, CYLINDER REARHEAD ASSY, CYLINDER REAR
-
209206-08001 ...PIN (8X11)...PIN (8X11)
-
309280-11001 ...O RING (D:2.4,ID:10.8)...O RING (D:2.4,ID:10.8)
-
401547-0650A ...BOLT...BOLT
-
501547-0665A ...BOLT...BOLT
-
604211-11129 ...PIN...PIN
-
711115-32E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
811117-05H00 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
911142-40H00 GASKET, CYLINDER HEAD REARGASKET, CYLINDER HEAD REAR
-
1009103-08528 BOLT (8X160)BOLT (8X160)
-
1109103-08529 BOLT (8X180)BOLT (8X180)
-
1204211-13189 PINPIN
-
1311171-40H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1411173-40H00 GASKET, HEAD COVER NO.1GASKET, HEAD COVER NO.1
-
1511174-40H20 CAP, CYLINDER HEAD COVER REARCAP, CYLINDER HEAD COVER REAR
-
1611175-40H00 CAP, CYLINDER HEAD COVER NO.2CAP, CYLINDER HEAD COVER NO.2
-
1711176-40H00 CAP, INSPECTIONCAP, INSPECTION
-
1809280-60004 O RING (D:2.4,ID:23)O RING (D:2.4,ID:23)
-
1901547-0620A BOLTBOLT
-
2011177-40H00 GASKET, HEAD COVER NO.2GASKET, HEAD COVER NO.2
-
2111180-40H00 BRACKET, HEAD COVER CAP NO.1BRACKET, HEAD COVER CAP NO.1
-
2209320-08013 ...CUSHION...CUSHION
-
2311180-40H10 BRACKET, HEAD COVER CAP NO.2BRACKET, HEAD COVER CAP NO.2
-
2409320-08013 ...CUSHION...CUSHION
-
2507130-0612A BOLTBOLT
-
2694424-03H00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
2709106-07022 BOLT (7X57)BOLT (7X57)
-
2811191-27E00 WASHERWASHER
-
2909390-22002 C RINGC RING
-
3009482-00620 SPARK PLUG (CPR6EA-9) (NGK)SPARK PLUG (CPR6EA-9) (NGK)
-
3009482-00626 SPARK PLUG (U20EPR9) (DENSO)SPARK PLUG (U20EPR9) (DENSO)
-
3009482-00621 SPARK PLUG (CPR7EA-9) (OPT NGK)SPARK PLUG (CPR7EA-9) (OPT NGK)
-
3009482-00627 SPARK PLUG (U22EPR9) (OPT DENSO)SPARK PLUG (U22EPR9) (OPT DENSO)
-
3113102-40HA0 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
3209280-45004 ...O RING (D:2.4,ID:44.7)...O RING (D:2.4,ID:44.7)
-
3313170-40H01 CLAMPCLAMP
-
3409120-06008 BOLT (6X20.5)BOLT (6X20.5)
