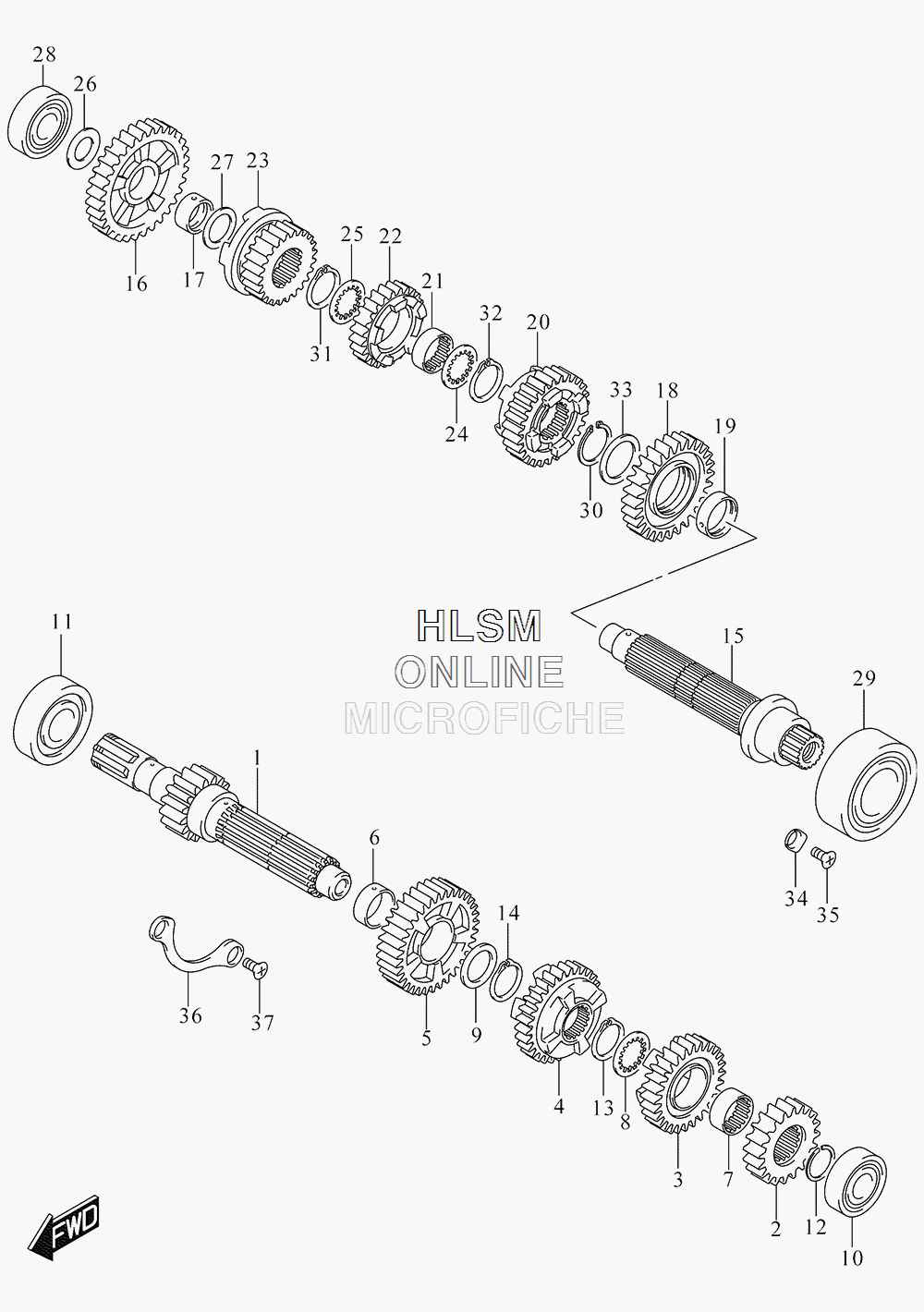

TRANSMISSION для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска

№

Артикул

Название
1

24120-40H00 SHAFT, COUNTER (NT:16)

SHAFT, COUNTER (NT:16)

35 130 ₽
2

24221-48G00 GEAR, 2ND DRIVE (NT:20)

GEAR, 2ND DRIVE (NT:20)

22 790 ₽
3

24231-48G10 GEAR, 3RD DRIVE (NT:26)

GEAR, 3RD DRIVE (NT:26)

26 480 ₽
4

24241-06J00 GEAR, 4TH DRIVE (NT:32)

GEAR, 4TH DRIVE (NT:32)

31 940 ₽
5

24251-40H00 GEAR, 5TH DRIVE (NT:33)

GEAR, 5TH DRIVE (NT:33)

30 980 ₽
6

24252-24F10 BUSH, 5TH DRIVE GEAR

BUSH, 5TH DRIVE GEAR

5 270 ₽
7

24262-24F10 BUSH, 3RD DRIVE GEAR

BUSH, 3RD DRIVE GEAR

5 270 ₽
8

09167-27003 LOCK WASHER

LOCK WASHER

970 ₽
9

09181-27014 SHIM (27X36X2.5)

SHIM (27X36X2.5)

900 ₽
10

09262-20080 BEARING (20X52X15) (LEFT HAND)

BEARING (20X52X15) (LEFT HAND)

5 450 ₽
11

09262-25153 BEARING (25X62X17) (RIGHT HAND)

BEARING (25X62X17) (RIGHT HAND)

10 110 ₽
12

09380-27004 CIRCLIP

CIRCLIP

650 ₽
13

09380-27006 CIRCLIP

CIRCLIP

470 ₽
14

09380-27006 CIRCLIP

CIRCLIP

470 ₽
15

24130-40H10 SHAFT, DRIVE

SHAFT, DRIVE

39 290 ₽
16

24311-48G00 GEAR, 1ST DRIVEN (NT:35)

GEAR, 1ST DRIVEN (NT:35)

30 980 ₽
17

24312-24F10 BUSH, 1ST DRIVEN GEAR

BUSH, 1ST DRIVEN GEAR

5 270 ₽
18

24321-48G10 GEAR, 2ND DRIVEN (NT:28)

GEAR, 2ND DRIVEN (NT:28)

30 980 ₽
19

24322-48G00 BUSH, 2ND DRIVEN GEAR

BUSH, 2ND DRIVEN GEAR

4 960 ₽
20

24331-06J00 GEAR, 3RD DRIVEN (NT:27)

GEAR, 3RD DRIVEN (NT:27)

33 240 ₽
21

24332-24F10 BUSH, 4TH DRIVEN GEAR

BUSH, 4TH DRIVEN GEAR

5 270 ₽
22

24341-40H00 GEAR, 4TH DRIVEN (NT:28)

GEAR, 4TH DRIVEN (NT:28)

27 900 ₽
23

24351-40H00 GEAR, 5TH DRIVEN (NT:26)

GEAR, 5TH DRIVEN (NT:26)

29 910 ₽
24

09167-30008 LOCK WASHER (LEFT HAND)

LOCK WASHER (LEFT HAND)

900 ₽
25

09167-30008 LOCK WASHER (RIGHT HAND)

LOCK WASHER (RIGHT HAND)

900 ₽
26

09181-22223 SHIM (22X34X1) (RIGHT HAND)

SHIM (22X34X1) (RIGHT HAND)

540 ₽
27

09181-24005 SHIM (24X34X1) (LEFT HAND)

SHIM (24X34X1) (LEFT HAND)

610 ₽
28

09262-22024 BEARING (22X56X16) (RIGHT HAND)

BEARING (22X56X16) (RIGHT HAND)

10 090 ₽
29

09267-35004 BEARING (35X72X27) (LEFT HAND)

BEARING (35X72X27) (LEFT HAND)

17 650 ₽
30

09380-30009 CIRCLIP

CIRCLIP

610 ₽
31

09380-30009 CIRCLIP (RIGHT HAND)

CIRCLIP (RIGHT HAND)

610 ₽
32

09380-30009 CIRCLIP (LEFT HAND)

CIRCLIP (LEFT HAND)

610 ₽
33

08211-30403 WASHER

WASHER

590 ₽
34

24741-20A00 RETAINER, DRIVE SHAFT LEFT HAND

RETAINER, DRIVE SHAFT LEFT HAND

480 ₽
35

09126-06011 SCREW (6X12)

SCREW (6X12)

350 ₽
36

24741-27A00 RETAINER, COUNTER SHAFT RIGHT HAND

RETAINER, COUNTER SHAFT RIGHT HAND

1 440 ₽
37

09126-06011 SCREW (6X12)

SCREW (6X12)

350 ₽
