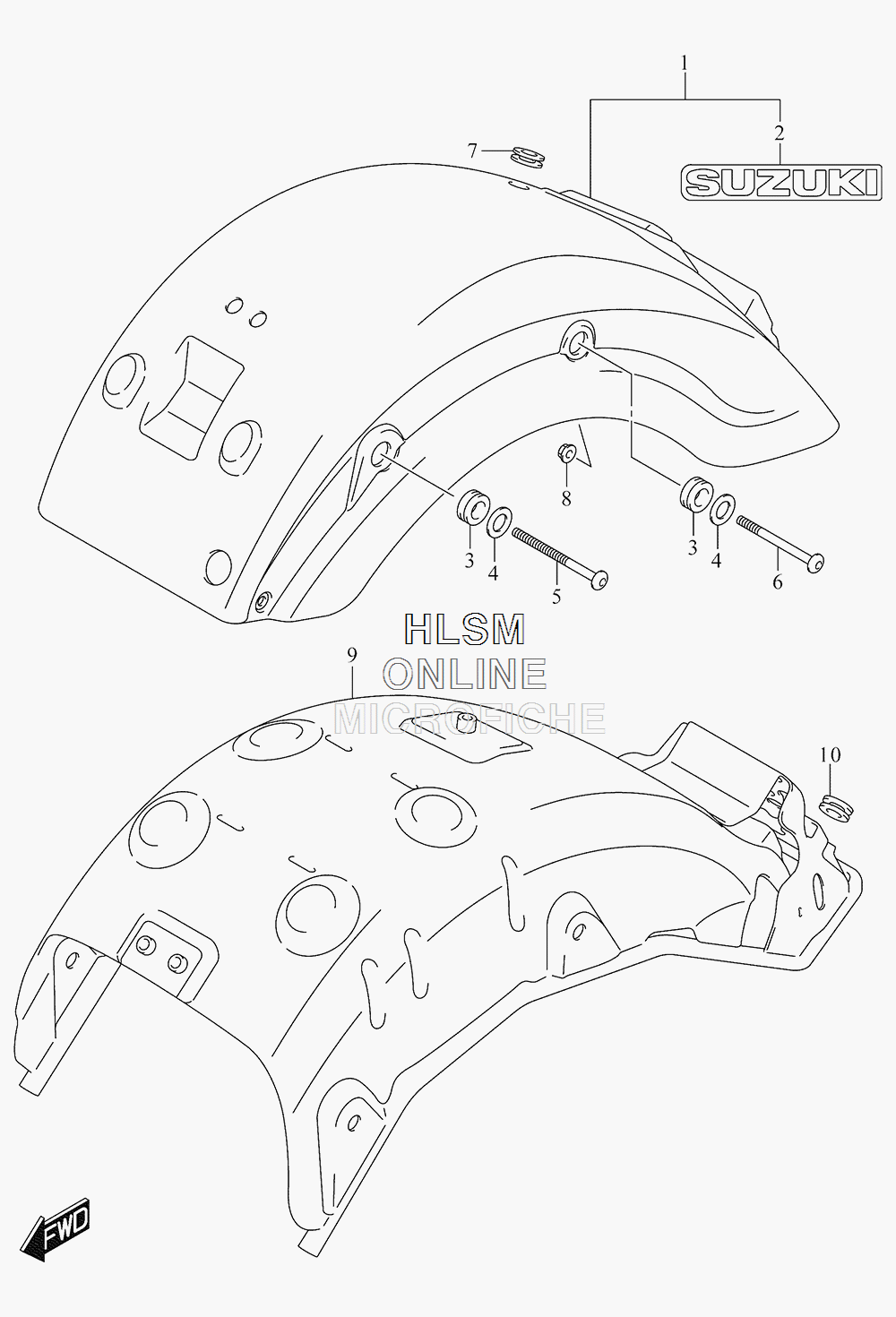

FENDER - REAR для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
163110-06J00-YMK FENDER, REAR (RED)FENDER, REAR (RED)
-
268271-34A00-YES ...EMBLEM, ''SUZUKI'' (SILVER)...EMBLEM, ''SUZUKI'' (SILVER)
-
347191-24F00 CUSHIONCUSHION
-
409160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
563161-06J10 BOLT (FRONT)BOLT (FRONT)
-
663161-41F00 BOLT (REAR)BOLT (REAR)
-
709320-15008 CUSHIONCUSHION
-
808316-1008A NUTNUT
-
963130-06J01 REINFORCE, REAR FENDERREINFORCE, REAR FENDER
-
1009308-10017 GROMMETGROMMET
