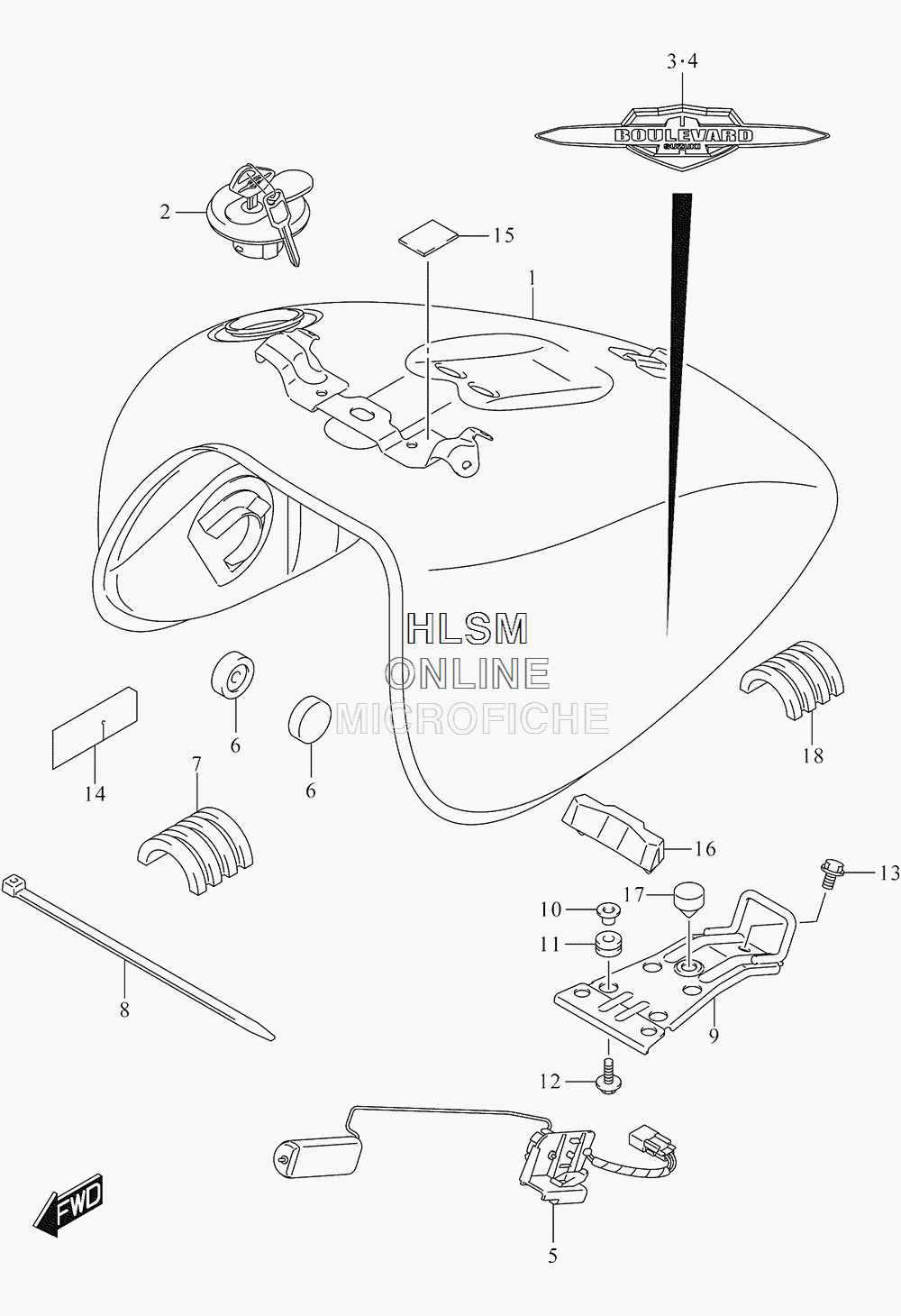

FUEL TANK для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
144100-06J01-YMK TANK ASSY, FUEL (RED)TANK ASSY, FUEL (RED)
-
244200-41840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
368111-06J00 EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
468121-06J00 EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
534810-40H00 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
609329-10007 CUSHIONCUSHION
-
744541-04F00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
809407-30402 CLAMP (L:300)CLAMP (L:300)
-
944530-06J00 BRACKET, REARBRACKET, REAR
-
1009169-06062 WASHERWASHER
-
1109320-08001 CUSHIONCUSHION
-
1209116-06192 BOLT (6X20)BOLT (6X20)
-
1301550-0812A BOLTBOLT
-
1444283-06J00 PROTECTORPROTECTOR
-
1563191-25C00 CUSHIONCUSHION
-
1644545-06J00 CUSHIONCUSHION
-
1709321-10011 CUSHIONCUSHION
-
1844541-06J00 CUSHION, TANK SIDE REARCUSHION, TANK SIDE REAR
