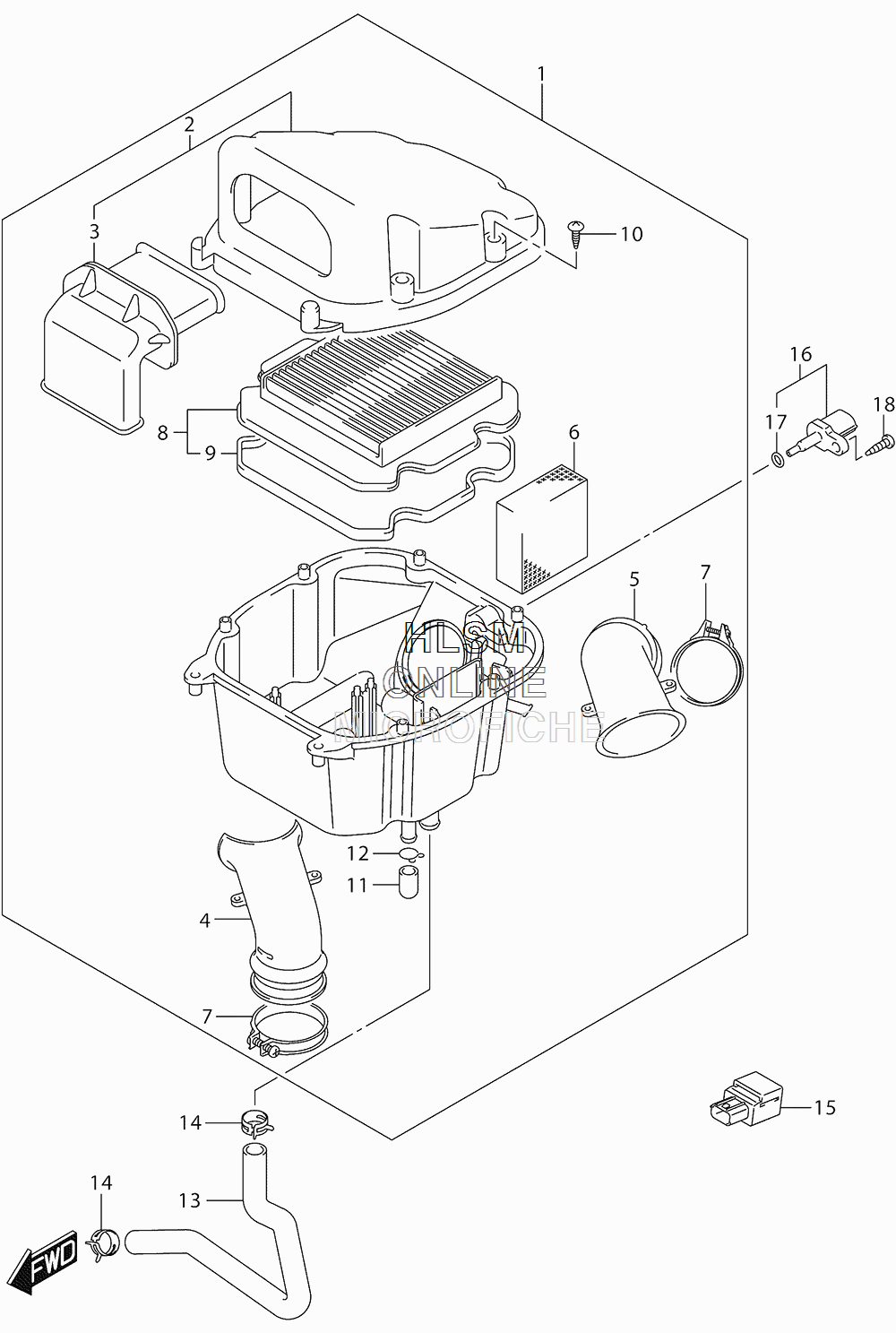

AIR CLEANER для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
113700-11J01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-11J01 ...CLEANER ASSY, AIR...CLEANER ASSY, AIR
-
313891-27G01 ......TUBE, INLET......TUBE, INLET
-
413881-27G10 ...TUBE, OUTLET...TUBE, OUTLET
-
513882-27G10 ...TUBE, OUTLET...TUBE, OUTLET
-
613788-11J00 ...FILTER, BREATHER...FILTER, BREATHER
-
713826-44H01 ...CLAMP, OUTLET TUBE REAR...CLAMP, OUTLET TUBE REAR
-
813780-27G10 ...FILTER, AIR CLEANER...FILTER, AIR CLEANER
-
913746-06G00 ......GASKET......GASKET
-
1003141-0516A ...SCREW...SCREW
-
1113878-10G00 ...PLUG, DRAIN...PLUG, DRAIN
-
1209401-14301 ...CLIP...CLIP
-
1313850-11J00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1409401-20405 CLIPCLIP
-
1518590-32G00 SENSOR, PRESSURESENSOR, PRESSURE
-
1613650-41F10 SENSOR AIR TEMPSENSOR AIR TEMP
-
1713655-41F10 ...O RING...O RING
-
1803511-0516A SCREWSCREW
