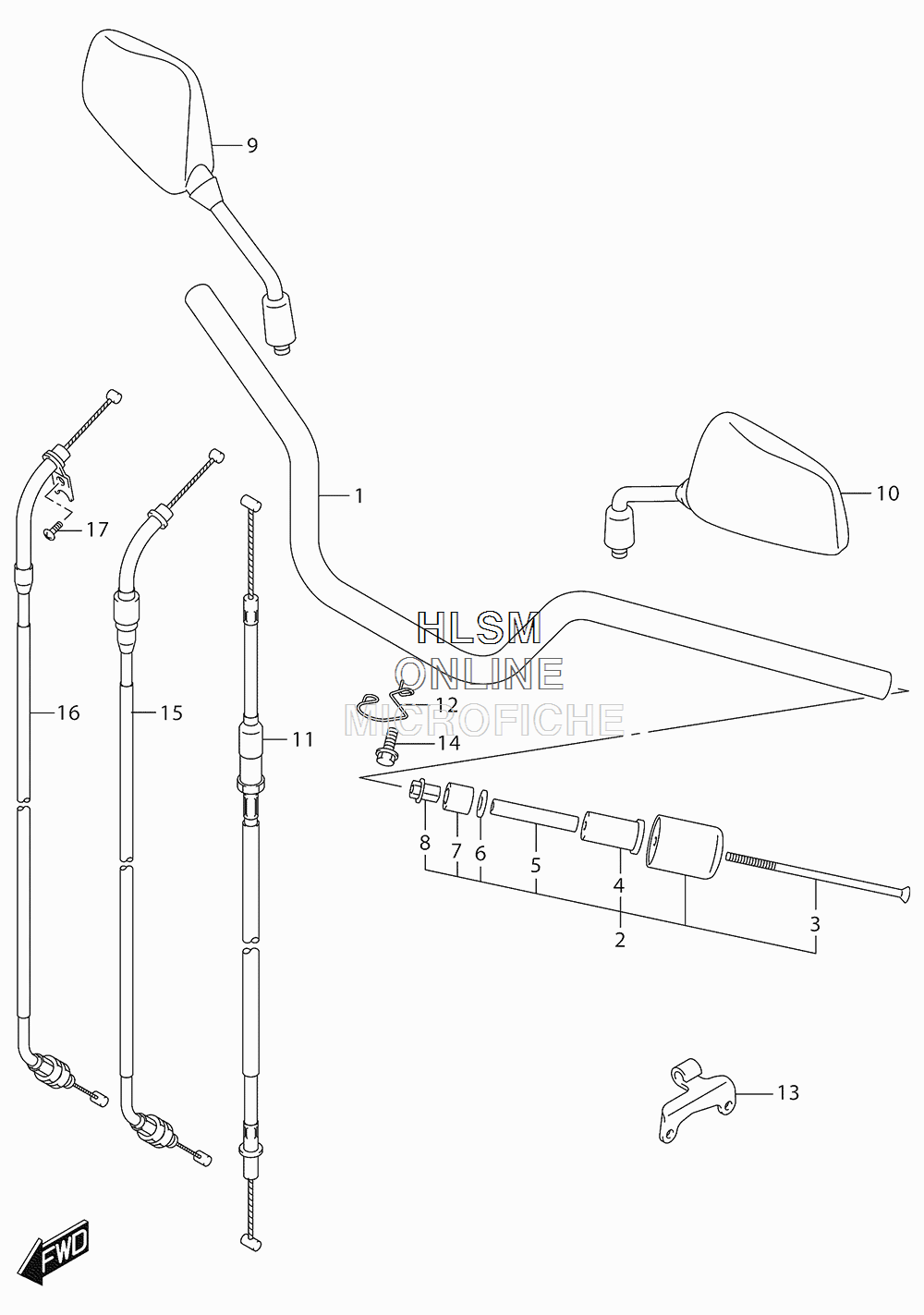

HANDLEBAR для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
156111-11J02-YUS HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256200-16842 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06018 ...SCREW (6X110)...SCREW (6X110)
-
456272-06G00 ...EXPANDER, OUTER...EXPANDER, OUTER
-
556276-17D00 ...SPACER...SPACER
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
756272-10G00 ...EXPANDER, INNER...EXPANDER, INNER
-
856273-10G10 ...NUT...NUT
-
956500-04F30 MIRROR ASSY, REAR VIEW RHMIRROR ASSY, REAR VIEW RH
-
1056600-04F30 MIRROR ASSY, REAR VIEW LHMIRROR ASSY, REAR VIEW LH
-
1158200-11J00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1258631-11J10 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1358634-44H00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1401547-0612A BOLTBOLT
-
1558300-11J00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1658300-11J10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1709125-05042 SCREW (5X10)SCREW (5X10)
