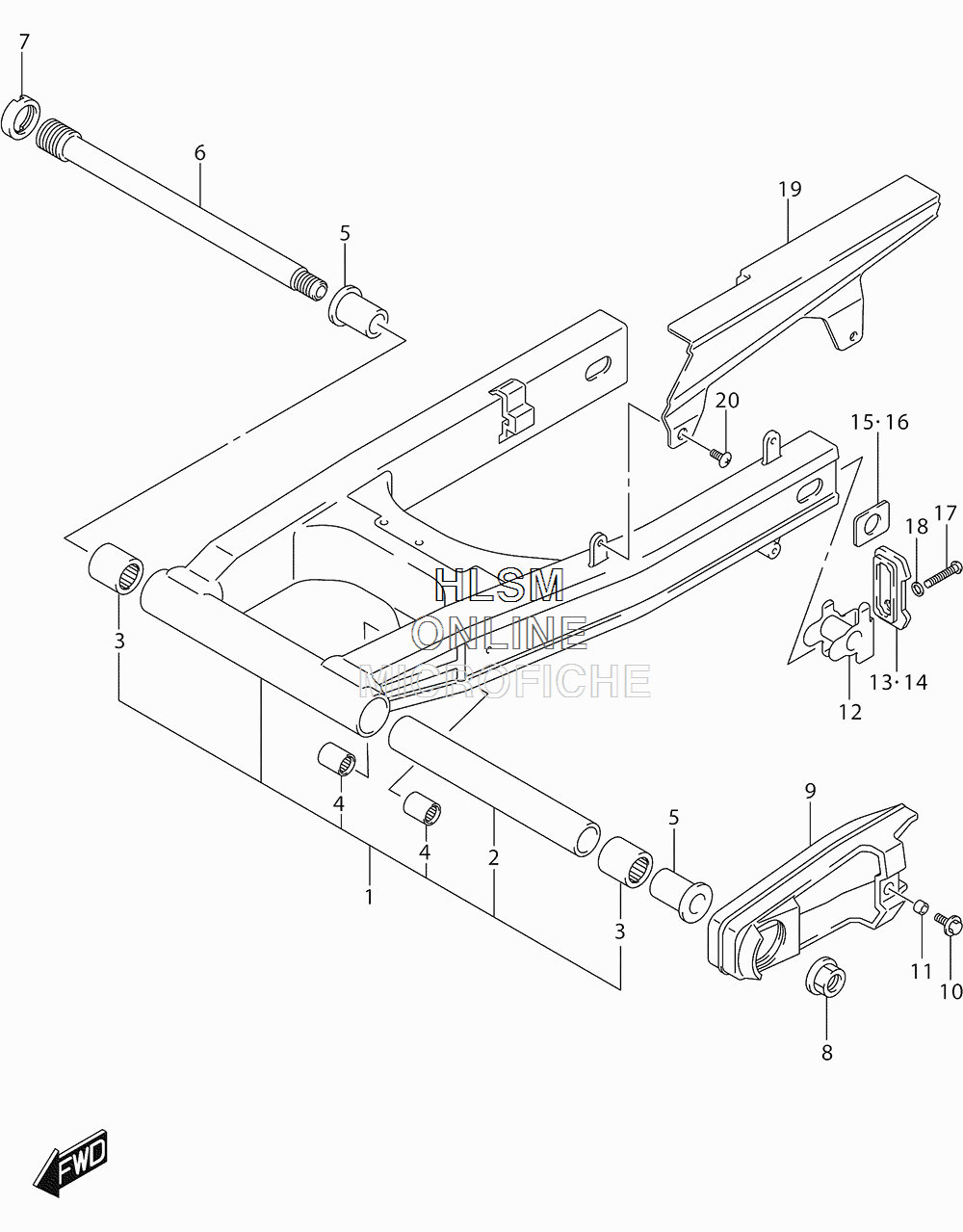

REAR SWINGARM для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска

№

Артикул

Название
1

61000-27G30-YAP SWINGINGARM ASSY, REAR (BLACK)

SWINGINGARM ASSY, REAR (BLACK)

8 251 100 ₽
2

09180-20118 ...SPACER (20.8X27.2X196.7)

...SPACER (20.8X27.2X196.7)

3 360 ₽
3

09263-25059 ...BEARING (25X33X35)

...BEARING (25X33X35)

6 430 ₽
4

09263-17037 ...BEARING (17X24X25)

...BEARING (17X24X25)

3 790 ₽
5

61251-31E00 SPACER, SWINGINGARM

SPACER, SWINGINGARM

8 630 ₽
6

61211-06G00 SHAFT, REAR SWINGINGARM PIVOT

SHAFT, REAR SWINGINGARM PIVOT

20 690 ₽
7

61214-19F10 NUT, PIVOT SHAFT

NUT, PIVOT SHAFT

3 070 ₽
8

08319-3118A NUT

NUT

3 630 ₽
9

61273-27G00 BUFFER, CHAIN TOUCH DEFENSE

BUFFER, CHAIN TOUCH DEFENSE

6 920 ₽
10

09116-06152 BOLT (6X20)

BOLT (6X20)

350 ₽
11

09180-06283 SPACER (6.5X10X7)

SPACER (6.5X10X7)

330 ₽
12

61410-03F00 ADJUSTER, CHAIN

ADJUSTER, CHAIN

5 710 ₽
13

61421-33D01 PLATE, CHAIN ADJUSTER GUIDE RH

PLATE, CHAIN ADJUSTER GUIDE RH

4 720 ₽
14

61422-33D01 PLATE, CHAIN ADJUSTER GUIDE LH

PLATE, CHAIN ADJUSTER GUIDE LH

4 720 ₽
15

64712-03F00 WASHER, CHAIN ADJUSTER RH

WASHER, CHAIN ADJUSTER RH

960 ₽
16

64713-03F00 WASHER, CHAIN ADJUSTER LH

WASHER, CHAIN ADJUSTER LH

960 ₽
17

09106-08119 BOLT (8X50)

BOLT (8X50)

680 ₽
18

09164-08015 WASHER

WASHER

540 ₽
19

61310-16G00 CASE, CHAIN

CASE, CHAIN

14 610 ₽
20

09139-06083 SCREW (6X16)

SCREW (6X16)

390 ₽
