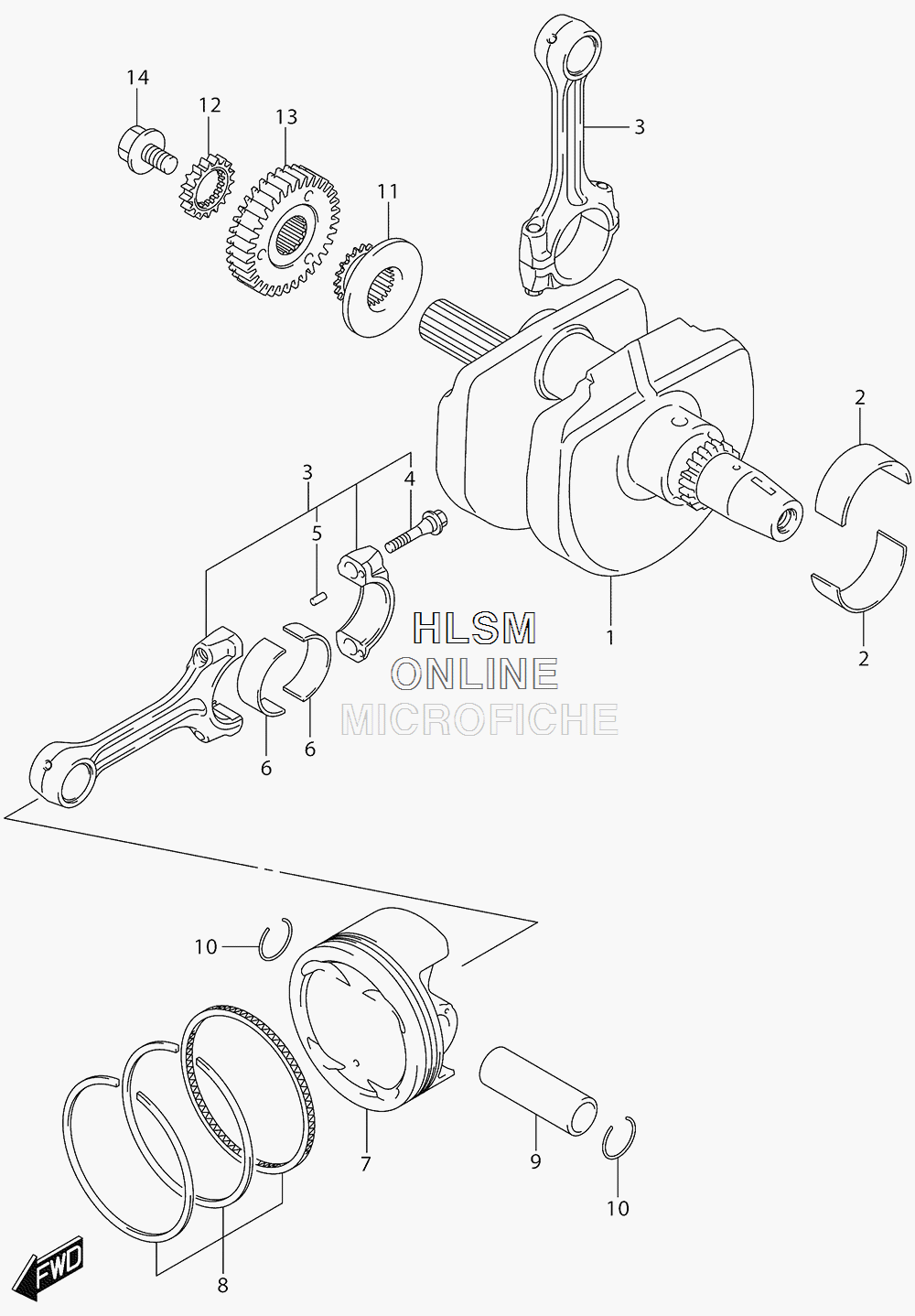

CRANKSHAFT W/ PISTON для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
112220-44H10 CRANKSHAFTCRANKSHAFT
-
212229-44H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
212229-44H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
212229-44H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
312160-17G10 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
412163-24F10 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
504221-04089 ...PIN...PIN
-
612164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
612164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
612164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
612164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
712111-44H20-0F0 PISTONPISTON
-
812140-15H10 RING SET, PISTONRING SET, PISTON
-
912151-05A00 PIN, PISTONPIN, PISTON
-
1009381-20004 SNAP RINGSNAP RING
-
1112731-19F00 SPROCKET, CAM CHAIN DRIVE (NT:18)SPROCKET, CAM CHAIN DRIVE (NT:18)
-
1217451-17G00 GEAR, WATER PUMP DRIVE (NT:17)GEAR, WATER PUMP DRIVE (NT:17)
-
1321100-44H00 GEAR, PRIMARY DRIVE (NT:34)GEAR, PRIMARY DRIVE (NT:34)
-
1409103-10338 BOLT (10X19)BOLT (10X19)
