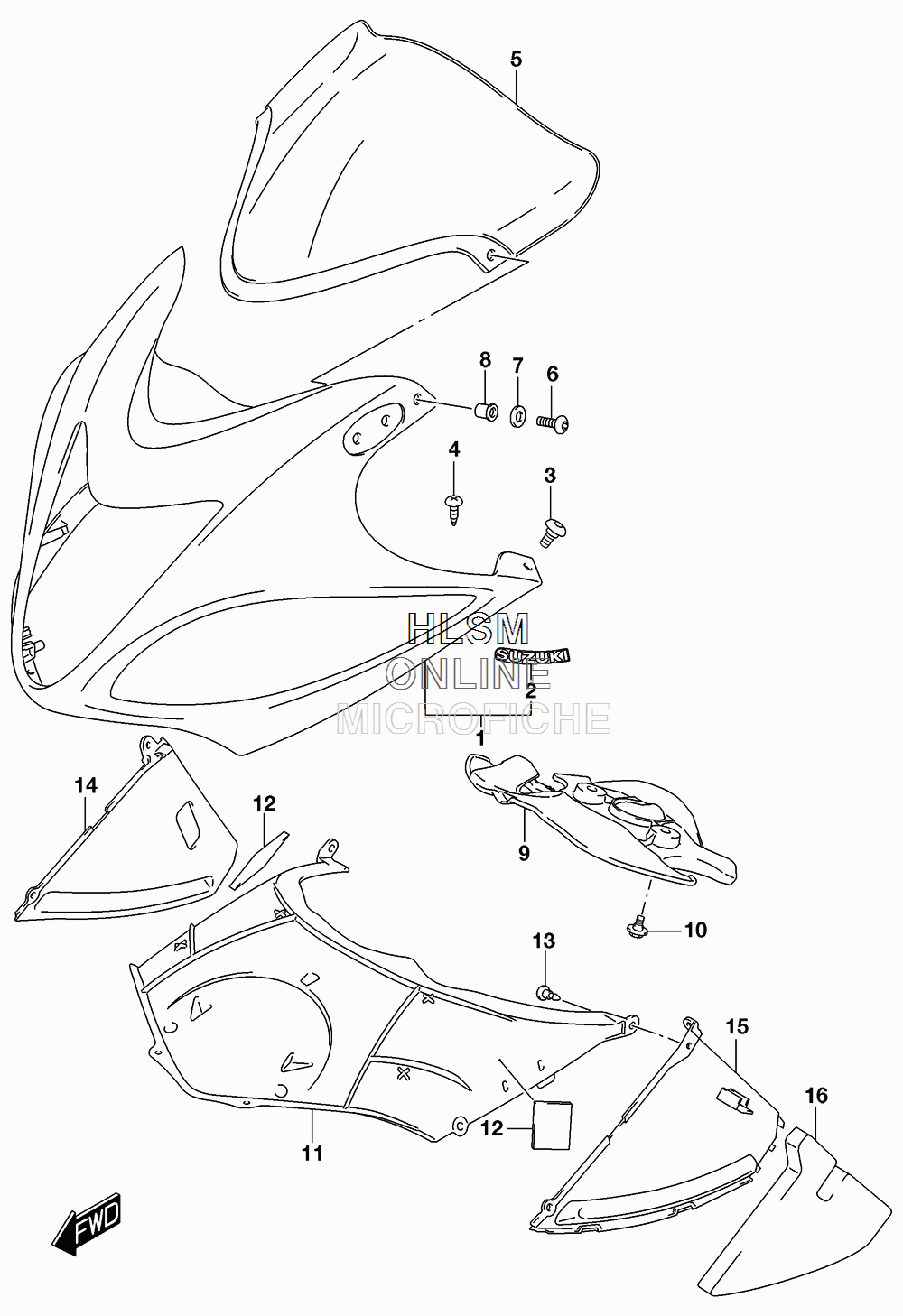

COWLING BODY для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
194401-15H60-YVB BODY, COWLING (BLACK) (FOR AA3)BODY, COWLING (BLACK) (FOR AA3)
-
194401-15H60-RB5 BODY, COWLING (WHITE) (FOR ARA)BODY, COWLING (WHITE) (FOR ARA)
-
194401-15H60-YYG BODY, COWLING (RED) (FOR A9Z)BODY, COWLING (RED) (FOR A9Z)
-
268281-24F10-17U ...EMBLEM (GRAY)...EMBLEM (GRAY)
-
309139-05077 SCREW (5X16)SCREW (5X16)
-
403541-0516A SCREWSCREW
-
594611-15H00 WINDSCREENWINDSCREEN
-
609139-05025 SCREW (5X14)SCREW (5X14)
-
708322-0105B WASHERWASHER
-
809159-05019 NUTNUT
-
994458-15H10 COVER, LOWER BRACKETCOVER, LOWER BRACKET
-
1009111-06107 BOLT (6X12)BOLT (6X12)
-
1194419-15H01 COVER, BODY COWLCOVER, BODY COWL
-
1236930-60A10 CUSHION, COVERCUSHION, COVER
-
1309409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1494461-15H00 COWL, INNER (RH)COWL, INNER (RH)
-
1594462-15H00 COWL, INNER (LH)COWL, INNER (LH)
-
1694463-15H00 CUSHION, (LH)CUSHION, (LH)
