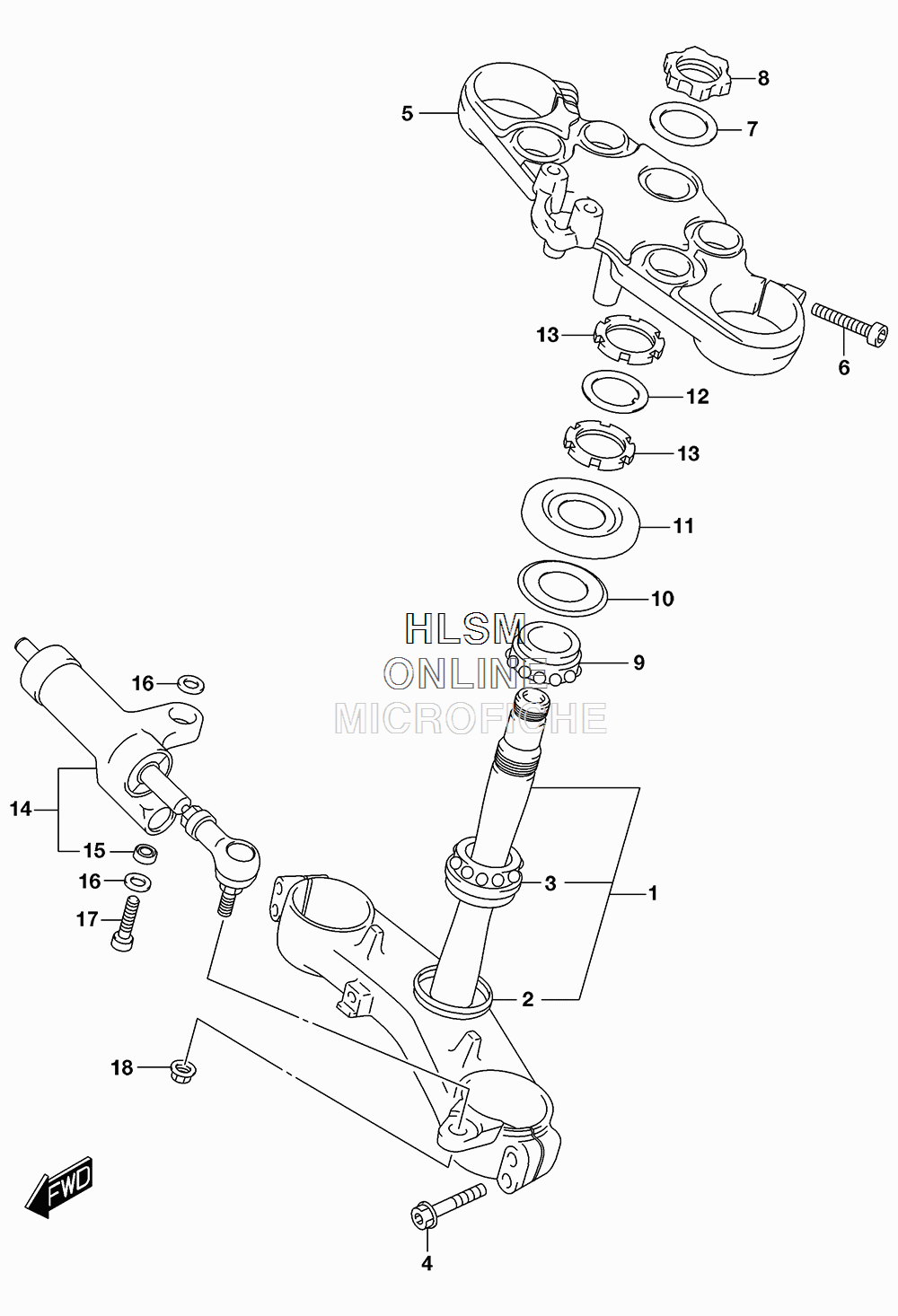

STEERING STEM для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
151410-24F50 BRACKET, LOWERBRACKET, LOWER
-
251644-12C00 ...SEAL, LOWER...SEAL, LOWER
-
309267-30010 ...BEARING (30X55X17)...BEARING (30X55X17)
-
451166-01D80 BOLTBOLT
-
551311-24F50 BRACKET, UPPERBRACKET, UPPER
-
651328-24F50 BOLTBOLT
-
751356-24F50 WASHERWASHER
-
851353-24F00 NUTNUT
-
909267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
1051644-12C00 SEAL, DUST UPPER (30.1X56X4)SEAL, DUST UPPER (30.1X56X4)
-
1151643-41G00 COVER, STEERING UPPERCOVER, STEERING UPPER
-
1251641-33E00 WASHER, STEMWASHER, STEM
-
1351631-33E00 NUT, STEMNUT, STEM
-
1451750-15H00 DAMPER ASSY, STEERINGDAMPER ASSY, STEERING
-
1509269-08003 ...BEARING (8X17.5X11)...BEARING (8X17.5X11)
-
1664339-14101 SEAL, DUSTSEAL, DUST
-
1707130-08307 BOLTBOLT
-
1808319-3108A NUTNUT
